Die-Cast LED Panel:
Convinent Installation
RGB:
SMD3535
Good Color:
Save-Energy
Compliant Standard:
CCC(CE)RoHS
LED Package:
SMD3535
Brightness:
>5500nits
Waterproof Grade:
IP65
Module Size:
320mmx160mm
Cabinet Size:
640mmx640mm
Input Voltage:
AC110V/220V 50-60Hz
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Pitch:
10mm
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Pixel Density:
10000 dot / m²
Scanning Mode:
1/2 Scan
Display Type:
LED Video Display
Application:
Stage Performance
Certification:
ETL
Average Power Consumption:
230
Product Description
Keywords: LED Display,Outdoor LED display screen , Outdoor led screen, Outdoor LED panel, Outdoor die-casting aluminum LED screen.
Features: 1, Adopting SMD3535 LEDs,Big viewing angle(>140°H;>140°W) ,with a nice flatness appearance of led screen; 2,Hight brightness>5500CD/SQM(adjustable), The people can the video/pictures the sunshine. 3, Die-casting aluminum molding. Tiny splicing gap, light weight & ultra-thin cabinet. 4,With waterproof glue appearance. Front side IP65,rear side IP54, which can be used in outoodr and indoor. 5,Joint,stacking up and hoisting easily & quickly with fast locks.
Parameters
LW-RO6.7 LW-RO8 LW-RO10 LW-RO10
Pixel Pitch (mm)
6.66mm
8mm
10mm
10mm
Pixel density(pix/m2)
22545
15625
10000
10000
LED Type
SMD3535
SMD3535
SMD3535
SMD5454
Viewing Angle
X,Y120°
X,Y120°
X,Y120°
X,Y120°
Brightness(nits)
≥5000
≥5000
≥5000
≥5000
Drive Method
1/6
1/5
1/2
1/2
Color Depth
65536
Refresh Rate(Hz)
1920
1920
1920
1920
Module Size (mm)
320×160×16
Cabinet Size(mm)
640×640×80
Cabinet Material
Die casting aluminum
Cabinet weight(kg)
12
15
15
15
Voltage
110-240V
Average.power(W/m2)
230
230
230
230
Max.power (W/m2)
700
700
700
700
IP Grade
IP65/IP54
Operating temperature/humidity
temperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/ humidity
temperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)
≥50000
Compliant Standard
CCC(CE)Rosh

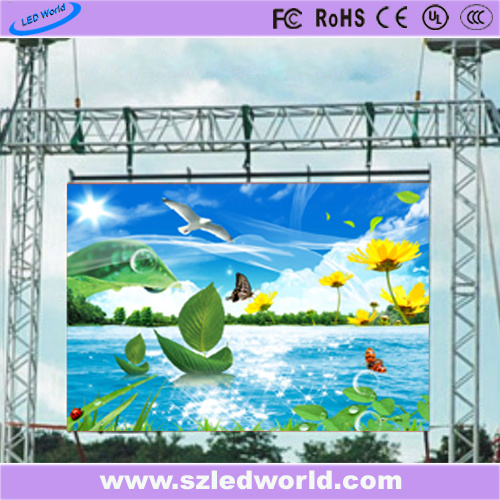

Project case:

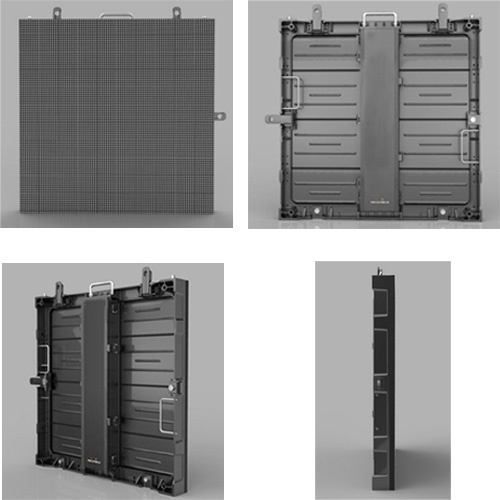

Product detail:

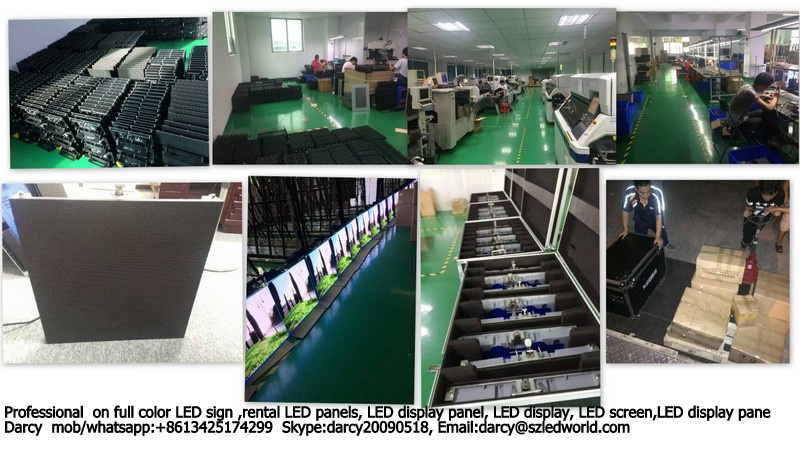

Workshop:
Shenzhen LED World Co., Ltd has focused on export business since 2009, who specialized in supplying the solutions of LED display screens, LED signs for worldwide market. The products series include small pixel pitch LED display, rental LED display screen, advertising LED display, stadium LED sign, LED ball screen, LED floor screen, creative LED display screens and so on. The above products are widely used in advertising media, public facilities, sports, entertainment, military, traffic and other industries, exported to USA, Mexico, Greece, Spain, Italy, UK, Thailand, Uganda, Nigeria, Russia, India, Turkey, Thailand, Vietnam, Brazil, Australia etc more than 20 countries and regions, and gained good reputation form the clients.
LED WORLD depends on the excellent outstanding R&D technicians, skilled & experienced oversea sales team, who adhere to" customer first, quality first, reputation first" as operating principle, making our future is better and better day by day.
Warmly welcome you visit our company to innovate and win glory together.
