Weight:
12kg/Panel
Ultra Thin:
77mm
LED Type:
SMD3535
Compliant Standard:
CCC,CE,RoHS
Viewing Angle:
H:120 V:120
Brightness(Nits):
More Than 5000 CD/M2
Module Size(mm):
250X250X18
Cabinet Material:
Die Casting Aluminum
Cabinet Size(mm):
500X1000X77mm
IP Grade:
IP65/IP54
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
300W / m²
Display Type:
LED Video Display
Application:
Stage Performance
Certification:
CCC
Pixel Pitch:
6.25 mm
Pixel Density:
25600 Dots/M2
Scanning Mode:
1/5
Product Description
P6.25 led display Features: 1,Ultra light weight:11kg/panel; 2,Ultra thin :77mm; 3,Support small pixel:P3.91~P4.81mm; 4,Special design on interlocks fine adiustable noiseless design; 5,Easy to assemble & transport with fast lock; 6,The led display applications: High-end meetings, concerts, high-end hotels, conferences and other leasing activities.
Item
Outdoor Rental Diecast LED Display
Pixel Pitch(mm)
6.25mm
7.81mm
Pixel density(dot/m2)
25600
16384
LED Type
3535
3535
Viewing angle:
H:120°,V:120°
H:120°,V:120°
Brightness(nits)
≥5000
Drive Method
1/5
1/4
Color Depth(nits)
65536
Refresh Rate(Hz)
1920
1920
Module Size(mm)
250×250×18
250×250×18
Cabinet Size(mm)
500×1000×77
500×1000×77
Cabinet Material
Die casting aluminum led display
Cabinet weight(kg)
12
12
Voltage
110/240V
Average.power(W / m2)
235
200
Max.power(W / m2)
700
600
IP Grade
IP65/IP54
Operating temperature/humidity
temperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/humidity
temperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)
≥50000
Compliant Standard
CCC,CE,RoHS

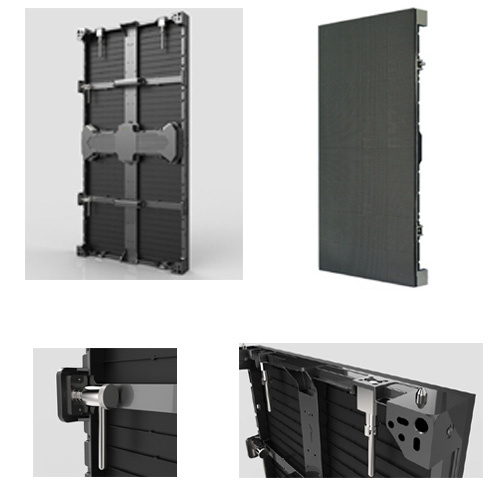

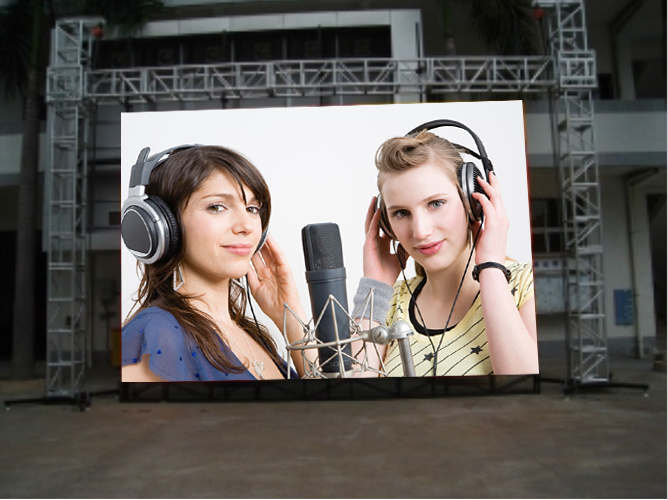

More LED display pictures for reference as below: Project case: Product detail: Workshop:
Shenzhen LED World Co., Ltd has focused on export business since 2009, who specialized in supplying the solutions of LED display screens, LED signs for worldwide market. The products series include small pixel pitch LED display, rental LED display screen, advertising LED display, stadium LED sign, LED ball screen, LED floor screen, creative LED display screens and so on. The above products are widely used in advertising media, public facilities, sports, entertainment, military, traffic and other industries, exported to USA, Mexico, Greece, Spain, Italy, UK, Thailand, Uganda, Nigeria, Russia, India, Turkey, Thailand, Vietnam, Brazil, Australia etc more than 20 countries and regions, and gained good reputation form the clients.
LED WORLD depends on the excellent outstanding R&D technicians, skilled & experienced oversea sales team, who adhere to" customer first, quality first, reputation first" as operating principle, making our future is better and better day by day.
Warmly welcome you visit our company to innovate and win glory together.

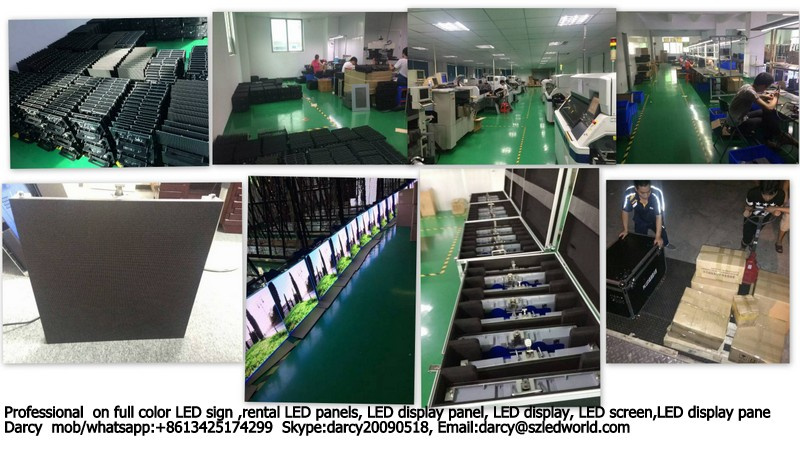

Workshop:
