Maximum Current:
AC 0.41A-120V, 0.21A-240V,
Power Factor (PF):
> 0.90
Lens:
PC
Working Temperature:
-40 - +50
Driver Efficiency:
> 90%
LED Driver:
Mean Well
Operating Humidity:
10% to 90%
Heat Radiator:
Anodized Aluminum
Input Voltage(V):
100-240V/277V/347V/480V
CRI (Ra>):
70
Lamp Body Material:
Aluminum
IP Rating:
IP66
Certification:
VDE
Color Temperature:
2800-6500k
Color:
Silver
Power:
240W
Usage:
Work Shop,Warehouse,Gas Station,Area Lighting,Park
Lifespan:
100000 Hours
Beam Angle:
60,90,110 Degree
Product Description

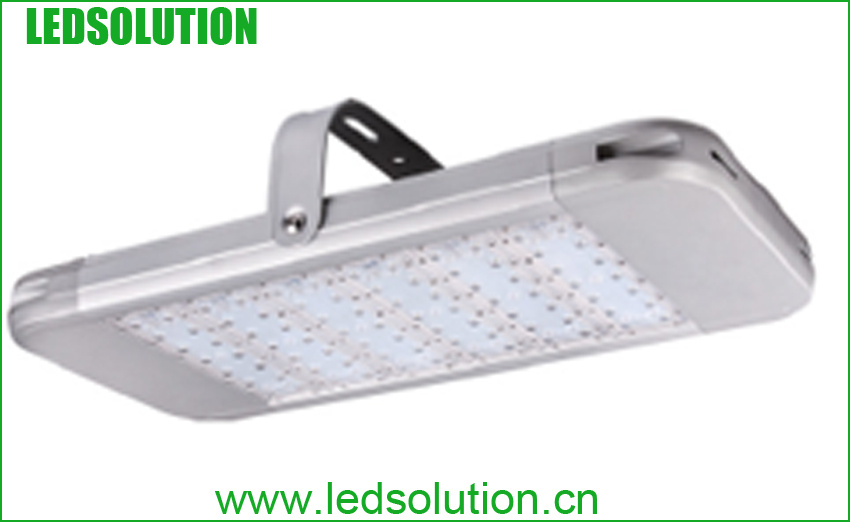

Shenzhen Manufactory 80w 120w 160w 200w Led High Bay Light Supplier 3-5 Years Warranty

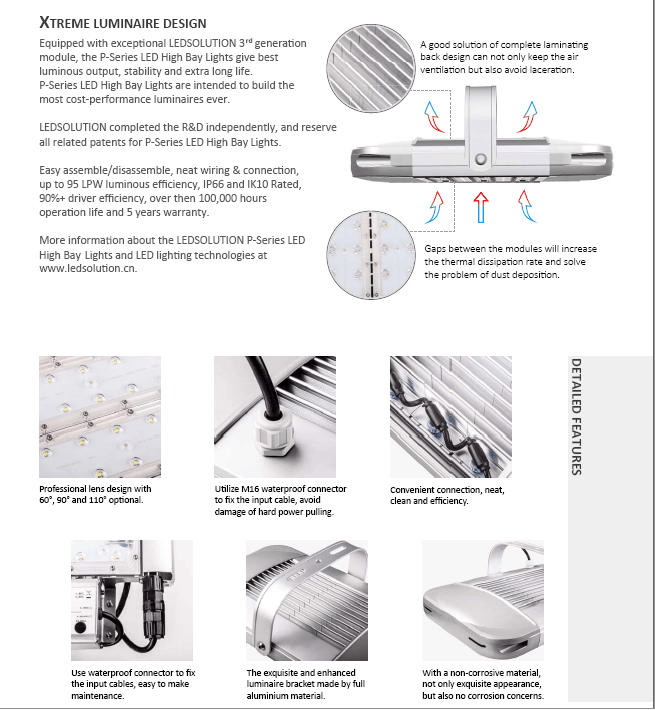

Feathers: 1.Modular pluggable technology,easy-tool onsite maintenance; 2.Honeycomb beiquette burning effect and the whole structure cooling technology; 3.Dould-coupling IP66 protection for module,highest waterproof level. 4.Ergonomic light distribution to achieve even illuminating effect; 5.Free serialization and various power solutions
Application: Warehouse lighting,factory lighting,rink lighting,gas station lighting.Parking lots.
Special Technical Advantages of LEDSOLUTION Modular lights

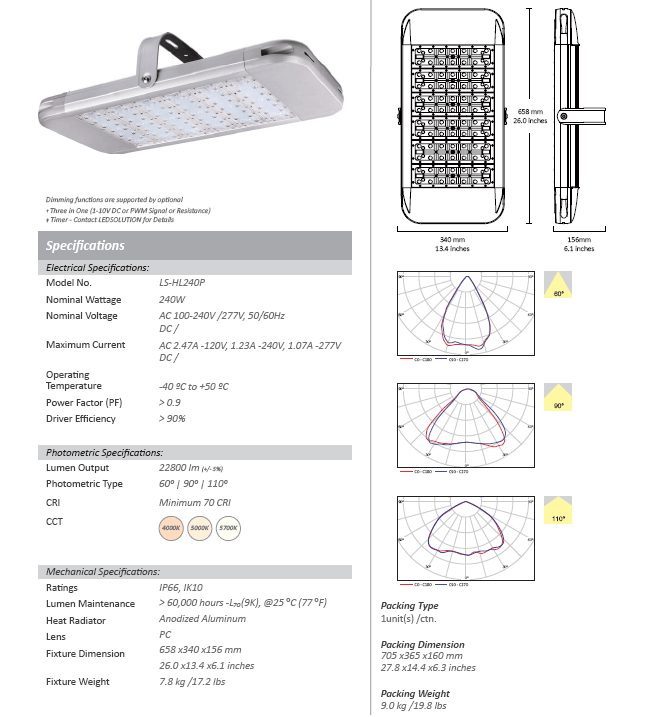

Specification
Specifications
Model
LS-HL240P

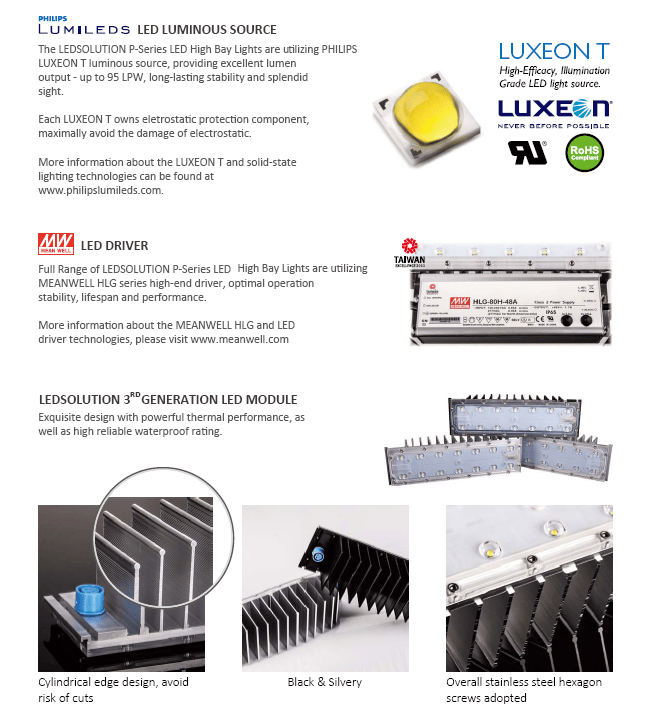

LED Brand
Philips LUXEON® T
Driver Brand
Meanwell HLG series
Norminal Wattage
240W
LED Module Quantity
6 modules
Input Voltage
100-240/277VAC
Power Efficiency
>90%
Power Factor
>0.95
Lamp Rated Luminous Efficiency
>100lm/w
Lamp Rated Lumen output
24000 lm (Lumen tolerance +/- 5%)
Color Rendering Index
Ra>70
Color Temperature
4000 5000 or 5700K
Photometric Type
60,90,110 degrees
Optimal Operating Temperature
25ºC
Storage Temperatures
'-40ºC~+70ºC
Working Environment
Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion
< 10%
Lumen Maintenance
> 60000 hours -L70, @25 ºC (77 ºF)
Body and Shell Materials
Anodized Aluminum
IP Rating
IP66 with test report
IK Rating
IK10 with test report
Certification
CE,ROHS,GS,CB,UL,cUL,DLC,LM-79
Optional Function
1-10V DC or PWM Signal or Resistance Dimming
Timer/Photocell Control
Warranty
5 years
Packing Details
Fixture Dimension
658 x340 x156 mm
Fixture Weight
7.8 kg /17.2 lbs
Packing Dimension
705 x365 x160 mm
Packing Weight
9.0 kg /19.8 lbs
Welcome your inquiry!
