North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:
320*160
Cabinet Size:
640*640
Cabinet Material:
Aluminum
Warranty:
Two Years
Display Type:
LED Video Display
Tube Chip Color:
Full Color
Display Function:
Video Display
Scanning Mode:
1/16 Scan
Certification:
CCC
Pixel Configuration:
1R,1G,1B
Pixel Pitch:
5mm
Pixel Density:
40,000 dots / m²
Application:
Shopping Guide
IP Rating:
IP43
System Operating Platform:
WIN XP
Product Description

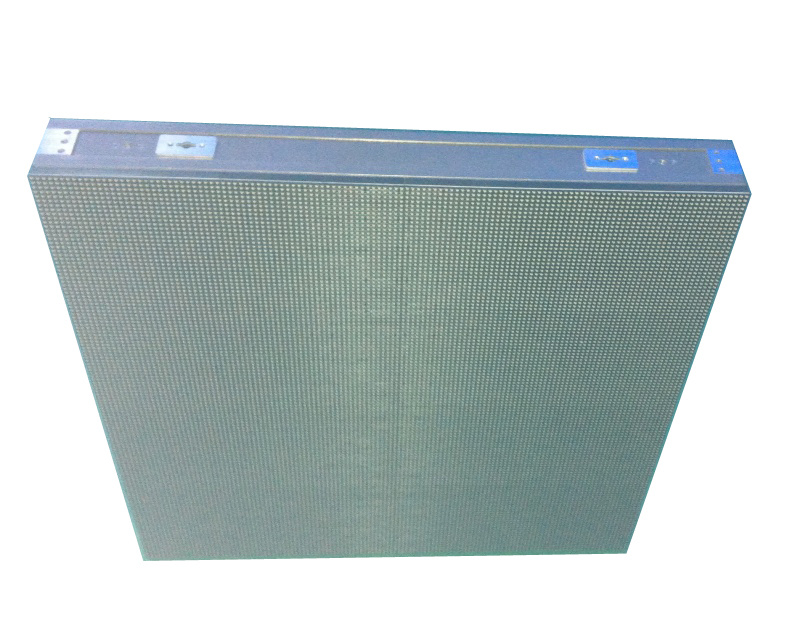

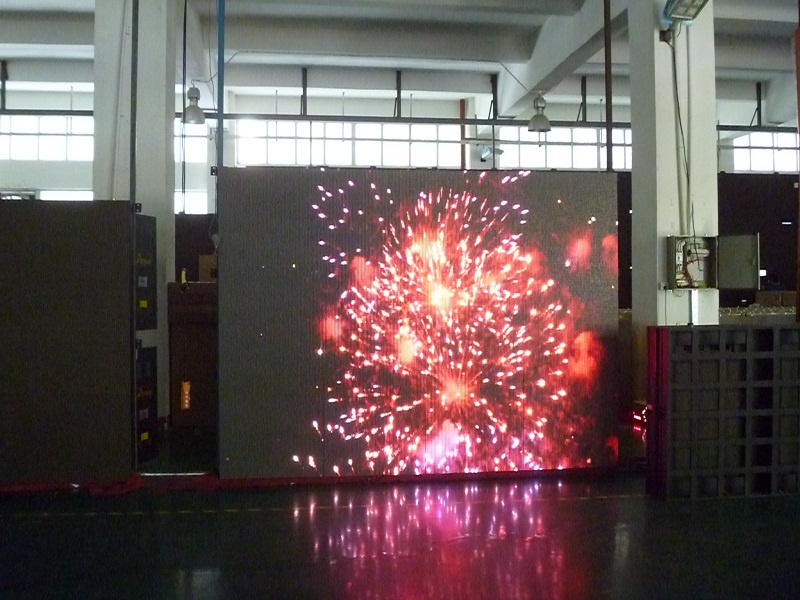

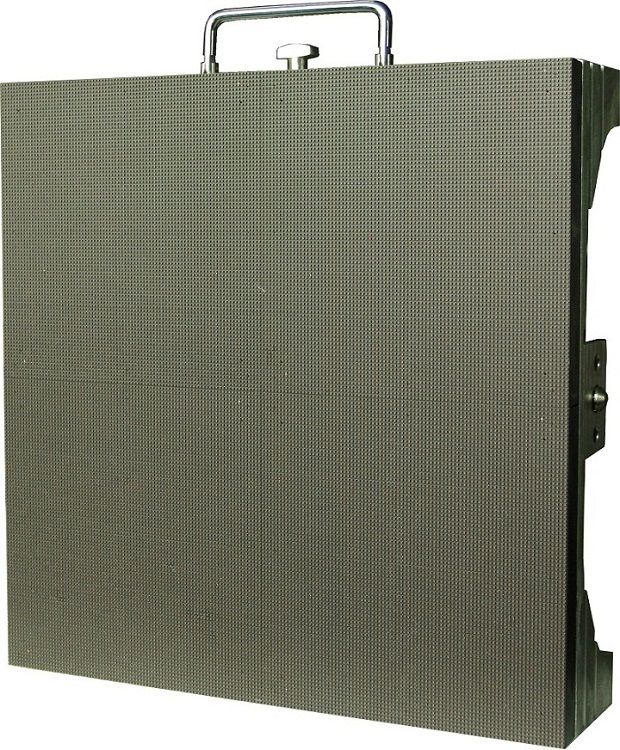

Rental Indoor Video Full Color LED Display application: For rental : party,wedding,entertainment etc; For advertisement:station,airport,bank,culture square,club,hotel,shopping guide,wharf,etc; For life broadcast:education,hospital,concert,stadium,sport match,gym etc.
Item
Indoor Die-casting LED display fancy series
Pixel Pitch(mm)
3mm
4mm
5mm
6mm
Pixel density(pix/m2)
111111
62500
40000
27777
LED Type
2020
2020
3528
3528
Viewing Angle
H:140°,V:140°
Color Depth(nits)
1500
Drive Method
1/16
Color Depth
16384
Refresh Rate(Hz)
1600
Module Size(mm)
192X192x13
256X128x13
320X160x13
192X192x13
Cabinet Size(mm)
576X576X80
512X512X80
640X640X80
576 x576 x80
Cabinet Material
Die cast Aluminum
Cabinet weight(kg)
9
8.5
12.5
9
Voltage
110/220V
Average.power(W/m2)
160
130
120
120
Max.power(W/m2)
800
380
350
350
Indoor LED Display Features: 1. Light weight 2. Large viewing angle 3. Long lifespan 4. High brightness 5. Silent operation 6. Standard panel design 7. Stable performance 8. Wide applicability 9. High protection grade
Export Markets:Africa,South America,North America,Oceania,Mid East,Western Europe,Southeast Asia
Noveled services for customers: 1. We can recommend and design solution for customers to reduce the risk of investing 2. We accept customers supervise the process of production 3. We also provide necessary training 4. We have good after-sale-service too,Noveled takes great responsibility to collect customers' feedback,inspection and maintains products periodically to ensure solve problems timely.
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
