Cabinet Size:
500mm X 500mm
Material:
Die Cast Alumum Rental Cabinet
Easy Installtion Lock:
8 Kg/ Cabinet
Brightbess:
1220CD
Lifte Time:
:More Than 50000 Hous
Packing Mateerial:
Flight Case or Wooden Case
Warranty:
2 Years
Tube Chip Color:
Full Color
IP Rating:
IP43
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
180W / m²
Scanning Mode:
1/16 Scan
Display Type:
LED Video Display
Application:
Stage Performance
Certification:
CCC
Pixel Pitch:
4.81
Pixel Density:
4906
Product Description

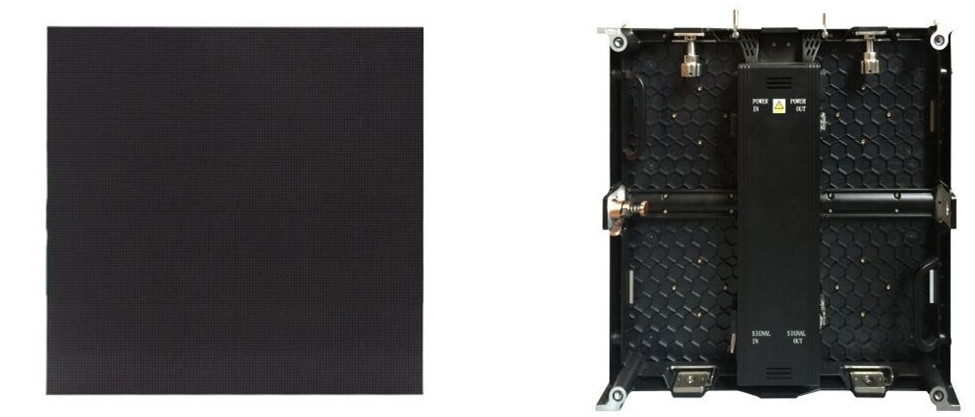

Diamond Serial 500 MM X500MM Die cast Alumium rental / fix indoor high definition full color LED display/LED screen is slim and portablewith die-casting aluminum material. Just 8kg/Cabinet,60mm thickness; P3.91, P.81 SMD 3 in 1 LED display are available. We produce a lot so we have good prices and stable quality. rental-type video display has the following advantages:
1.High contrast rate up to 9000:1 by using black LED
2.High refresh rate with NOVA control system,no scaning line when photographed.
3.The new structure design enables diversified installation to meet the hanging-up and stacking requirements.
Application

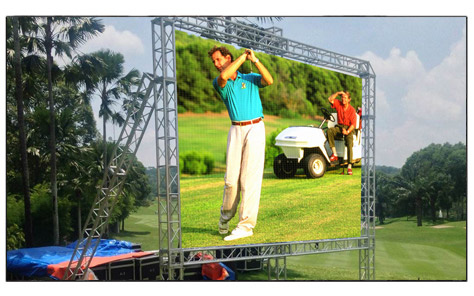

Artistic performance,exhibition,wedding ceremony and other activities occasions
Detail specification
Pixel Pitch
3.91mm
4.81mm
Pixel Configuration
SMD2121 3-in-1
SMD2121 3-in-1
Environment
Indoor
Indoor
Pixel Density
65,410 dots/m2
43,222 dots/m2
Module Resolution
64×64 dots
52×52 dots
Module Size
250×250 mm
Cabinet Resolution
128×128 dots
104×104 dots
Cabinet Size
500X500 mm
Cabinet Weight
8 KG
8 KG
Cabinet Material
Die-casting Aluminum
Viewing Distance
>4m
>5m
Viewing Angle
H120°V120°
Refresh Rate
≥1,200 Hz
≥1,200 Hz
Maximum Power Consumption
650 W/m2
600 W/m2
Average Power Consumption
230 W/m2
210 W/m2
Drive Mode
Constant current
Constant current
Brightness
≥1,200 CD/ m2
≥1,200 CD/ m2
Input Voltage
AC100-240V/50-60Hz
Life Span
100,000 hours
Working Temperature
-20°C~60°C
Working Humidity
10%RH~90%RH
Gray Scale
14 bit
IP Grade
IP31
2 Years warranty , life time serive for screen and spare parts
