North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:
192*96
Cabinet Size:
768*1604
Cabinet Material:
Iron
Brightness:
More Than 5000 CD/Sqm
Warranty:
Two Years
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Certification:
CCC
Display Function:
Video Display
Application:
Advertising
Scanning Mode:
1/8 Scan
Average Power Consumption:
350W / m²
Pixel Pitch:
6mm
Pixel Density:
27777 DOT /Sqm
Product Description

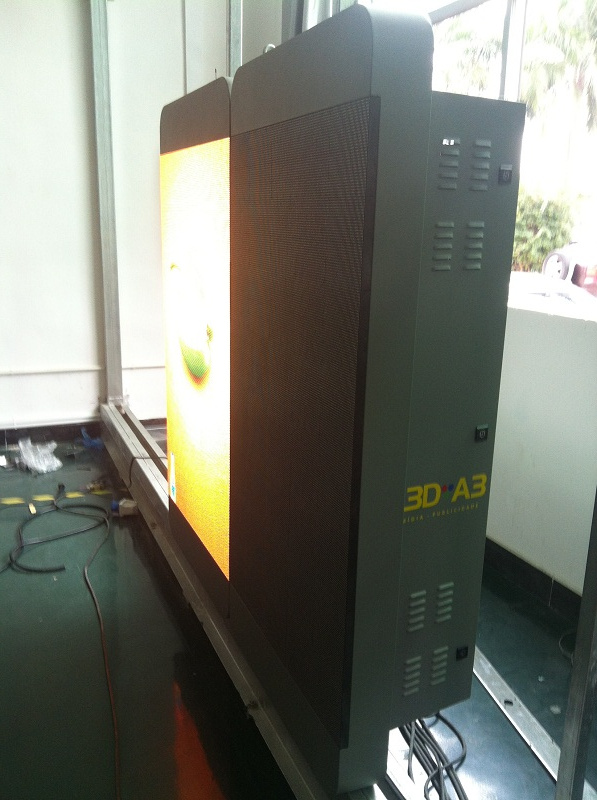

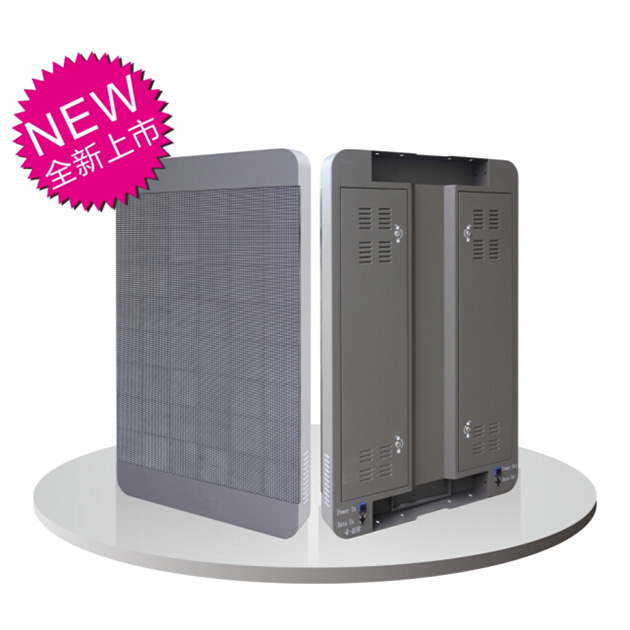

Poster High Brightness Outdoor Full Color LED Display Series:
item
P3
P4
P5
P6
Pixel Pitch:
3mm
4mm
5mm
6mm
Pixel Density:
111111 dot /m2
62500 dot /m2
40000 dot /m2
27777dot/m2
Brightness:
≥3000CD/m2
≥3000CD/m2
≥5000CD/m2
≥5000CD/m2
LED Configuration:
SMD2020
SMD2020
SMD2727
SMD2727
Viewing Angle:
120
120
120
120
Refresh Rate:
960HZ
960HZ
960HZ
960HZ
IP Rating(F/B):
IP65
IP65
IP65
IP65
Module size:
192*96 mm
128*128mm
160*160mm
192*96mm
Module resolution:
64*32 dot
32*32 dot
32*32 dot
32*16 dot
Cabinet size:
888*1600 mm
894*1606 mm
800*1600 mm
768*1604 mm
LED Display Size:
768*1344 mm
768*1280 mm
800*1280 mm
768*1344 mm
Cabinet resolution:
256*488 dot
192*320 dot
160*256 dot
128*224 dot
Cabinet weight(approx):
55KG
57 KG
57 KG
57 KG
Max.Power consumption:
900W/sqm
720W/sqm
800W/sqm
900W/sqm
Ave.Power consumption:
390W/sqm
210W/sqm
280W/sqm
300W/sqm
Gray Scale:
13 bit
13 bit
13 bit
13 bit
Display Scale:
16.7 M
16.7 M
16.7 M
16.7 M
Operating temperature:
-20ºC to +60ºC
-20ºC to +60ºC
-20ºC to +60ºC
-20ºC to +60ºC
Operating Humidity:
10-90% RH
10-90% RH
10-90% RH
10-90% RH
Lifetime:
100,000Hours
100,000Hours
100,000Hours
100,000Hours
Environmental:
Outdoor
Outdoor
Outdoor
Outdoor

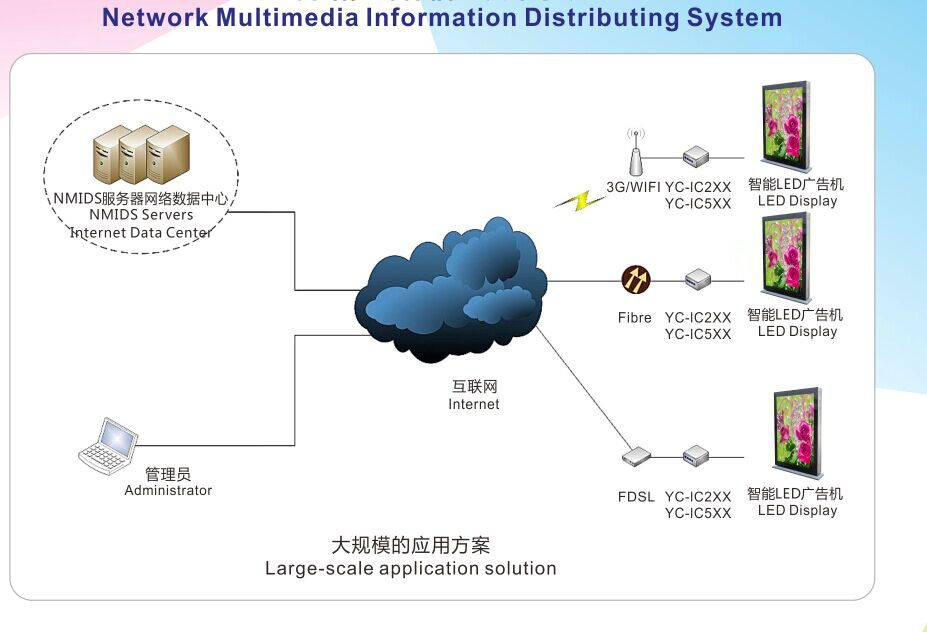

This Poster LED Display with Wifi , 3G /4G intelligent management core modules inside, it can change advertisement any place , any time . Multi LED Display operation LED Display Feature
With the best LED industrial waterproof and ultraviolet-proof SMD 3 in 1 technology to make a super wide viewing angle and a better surface evenness and stability. RGB deep gray processing to show any color. Support point correction function, ensure the consistency of the color and the brightness in the process of use. Inner fixed reinforcement plate, tensile and shockproof, auto heat dissipation, make the operating life 10 years. Accurate, shortcut, flexile installation, can be applied to any different installation environment. With the protection rating of IP65, face any bad weather. Complete series, customized to satiny any requirements of customers. With the professional aviation plug as the connectors ensure the quality and safety. With the high quality raw material, mature process and scale production, the quality is ensured.
Function and Technology Character
(1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal. (2) 10 BIT grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chromic can be adjusted by manual and sensor, whose scope is 256 grade. (3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously. (4) Line-Double technology is adopted for the picture adjustment. (5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL. (6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.
Warranty:- We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in thefactory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
Technology Training
We provide the technology training for free, which contains the operation training and maintenance training in the factory. We will send our engineers to your country by negotiation.
Documents and Certification We provide the operation manual, software, test report and so on. We can also provide all kinds of certification such as CE, IP65 and so on.
CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion (2) We will send our engineers to your place if we are expected after our negotiation.
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
