| Price: | US $ 1567/Square Meter |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Box |
| Pay Type: | T/T,Paypal,Western Union |
| Prod Model: | PH8 black lamp SMD3535 die-casting led display |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: | 320*160mm |
| Cabinet Size: | 640*640*100mm |
| Brightness: | More Than 5000 CD/Sqm |
| Protection Level: | IP65(Front) / IP54(Back) |
| Cabinet Material: | Die-Casting |
| Warranty: | 2 Years |
| Display Type: | LED Video Display |
| Tube Chip Color: | Full Color |
| IP Rating: | IP65 |
| Pixel Configuration: | 1R, 1G, 1B |
| Certification: | CCC |
| Display Function: | Video Display |
| Application: | Stage Performance |
| Scanning Mode: | 1/4 Scan |
| Average Power Consumption: | 300W / m² |
| Pixel Pitch: | 8mm |
| Pixel Density: | 15625dots/Sqm |

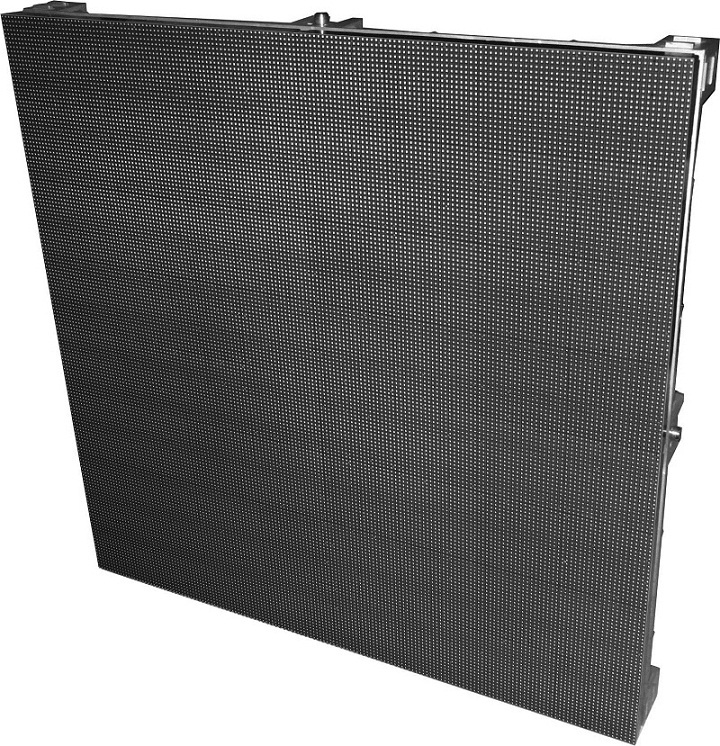

Outdoor SMD die casting rental LED display screen is super thin (100mm depth) and super light (14kg/cabinet). It is very convenient for installatioin and transportation, and it can be simply assembled and disassembled by only one people.

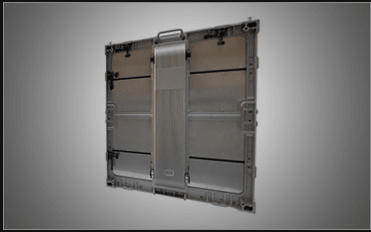

| Fast and Easy Installation Die casting aluminum cabinet, light weight, slim depth, fast locks guarantee the fast and easy installation & dismantle. | ||||
|---|---|---|---|---|---|
| Slim Depth Depth of the cabinet is only 100mm, take small space, which is great convenient for rental and transportation. | |||||
| Light Weight Weight of each cabinet is only 14kg, only one people can easily install and move it. It saves man power. | |||||
| Professional-grade Connectors LEDA rental cabinets use professional grade connectors for fast installation, safe and stable connection. | |||||
| High Refresh Rate The refresh rate is more than 1000HZ, it is flicker-free when live broadcast. It fully meets the needs of professional camera shooting. | |||||
| IP65 Water Proof The cabinet is IP65 water-proof, it is all weather designed. | |||||

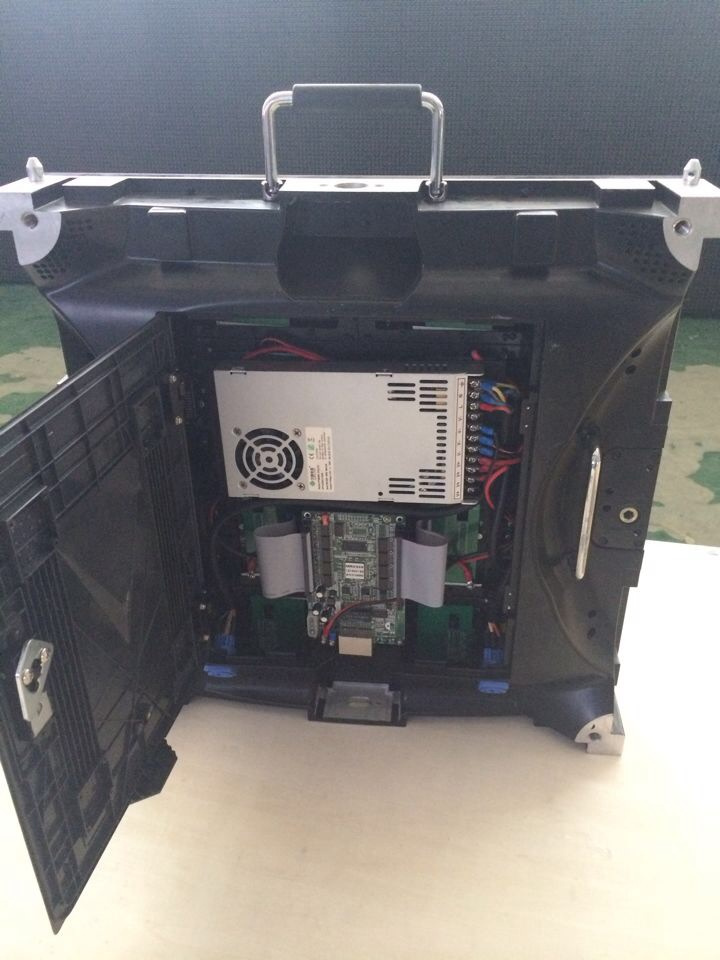

| Independently Removable and Replaceable You can change any parts freely without removal of other products, the failure can be super fast solved. | |||||
| Wide Viewing Angle Horizontal and vertical viewing angle is 140 degrees, pictures and videos of the display can be viewed by more viewers. | |||||
| Brightness Adjustable The brightness can be adjusted automatically, it saves power cost. | |||||
| No Fan Design No fan design guarantees silent operation. | |||||
| Fast and Easy to Maintain The power and signal working status were showed, convenient for you to check out problem at the first time. | |||||
| Quality Guaranteed The product is designed and produced in strict compliance with international standards, such as CE, ROHS. | |||||
| Model | P8 | ||||
|---|---|---|---|---|---|
| Model No.: | LEDA-OR-P8 | ||||
| Pixel Pitch | 8mm | ||||
| LED Type | SMD3535 | ||||
| Pixel Configuration | 1R1G1B | ||||
| LED Driving Method | 1/4 Scan | ||||
| Module Pixel | 40*20 (W*H) | ||||
| Module Size | 320*160MM | ||||
| Cabinet Pixel | 80*80 (W*H) | ||||
| Cabinet Size | 640*640*100MM | ||||
| Iron Cabinet Weight | 14KG | ||||
| Max. Power Consumption | ≤1000W/ | ||||
| Ave. Power Consumption | ≤300W/ | ||||
| Hor. Viewing Angle | 140° | ||||
| Verti. Viewing Angle | 140° | ||||
| Brightness | ≥5000 cd/ | ||||
| Pixel Density | 15625/ | ||||
| Protection Level | IP65(Front) / IP54(Back) | ||||
| Processing | 16 bit | ||||
| Colors | 281 trillion | ||||
| Refresh Rate | ≥1000HZ | ||||
| Frame Rate | 60fps | ||||
| Lifetime | 100,000 Hours | ||||
| Power | AC220/110 ± 10%, 47~63Hz | ||||
| Operating Temperature | -20ºC to +60ºC | ||||
| Operating Humidity | 20% to 90% | ||||
| Brightness Level | Manual 100 levels,automatically 16 levels | ||||
| Certifications | CCC, FCC, CE, ROHS, UL, ETL | ||||
