North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:
288mm*288mm
Cabinet Size:
576*576*85mm (W*H)
Colors:
281 Trillion
Brightness:
More Than 2000 CD
Power:
AC220/110 ± 10%, 47~63Hz
Refresh Rate:
More Than 1000Hz
Processing:
16 Bit
Display Type:
LED Video Display
Tube Chip Color:
Full Color
Display Function:
Video Display
Scanning Mode:
1/8 Scan
Certification:
CCC
Pixel Configuration:
1R,1G,1B
Pixel Pitch:
6mm
Pixel Density:
27,777 dots / m²
Application:
Stage Performance
IP Rating:
IP43
System Operating Platform:
Windows98/Me/2000/Nt/XP/Win7
Product Description
PH6 indoor rental led display detailed specification
Model
P6
Model No.:
LEDA-IR-P6
Pixel Pitch
6mm
LED Type
SMD3528
Pixel Configuration
1R1G1B
LED Driving Method
1/8 scan
Module Pixel
48*48 (W*H)
Module Size
288*288MM
Cabinet Pixel
96*96 (W*H)
Cabinet Size
576*576*85mm (W*H)
Cabinet Weight
10KG
Max. Power Consumption
≤1000W/
Ave. Power Consumption
≤350W/
Hor. Viewing Angle
140°
Verti. Viewing Angle
140°
Brightness
≥2000 cd/
Pixel Density
27778/
Protection Level
IP43(Front & Back)
Processing
16 bit
Colors
281 trillion
Refresh Rate
≥1000HZ
Frame Rate
60fps
Lifetime
100,000 Hours
Power
AC220/110 ± 10%, 47~63Hz
Operating Temperature
-20ºC to +60ºC
Operating Humidity
20% to 90%
Brightness Level
Manual 100 levels,automatically 16 levels
Certifications
CCC, FCC, CE, ROHS, UL, ETL

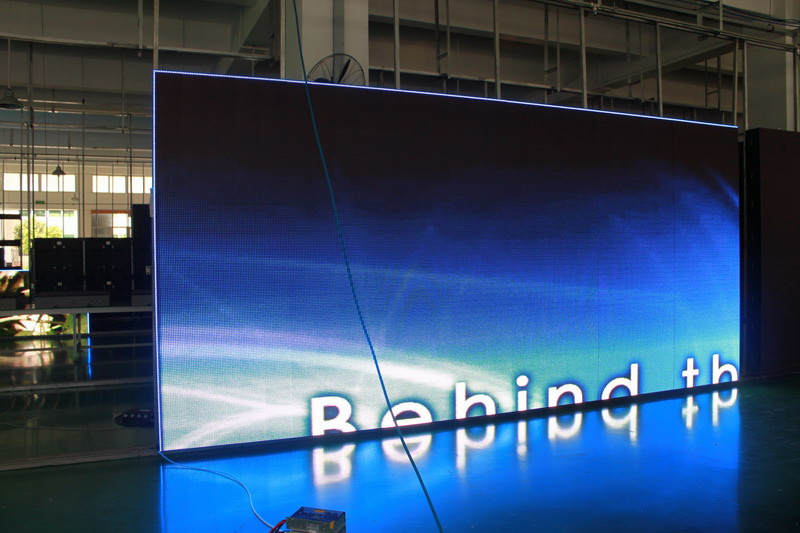

aging picture front view
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
