Module Size:
320mm*160mm**16mm
Module Resolution:
48DOT*24DOT
Cabinet Size:
640mm*640mm
Cabinet Resolution:
9216
Cabinet Material:
Aluminum
Cabinet Weight(Kg):
12
Refresh Rate(Hz):
1920
Warranty:
2 Years
Display Type:
LED Video Display
Tube Chip Color:
Full Color
Display Function:
Video Display
Scanning Mode:
1/8 Scan
Certification:
CCC
Pixel Configuration:
1R,1G,1B
Application:
Shopping Guide
IP Rating:
IP54
Pixel Pitch:
6.67mm
Pixel Density:
22478dots/Sqm
System Operating Platform:
Windows98/Me/2000/Nt/XP/Win7
Product Description

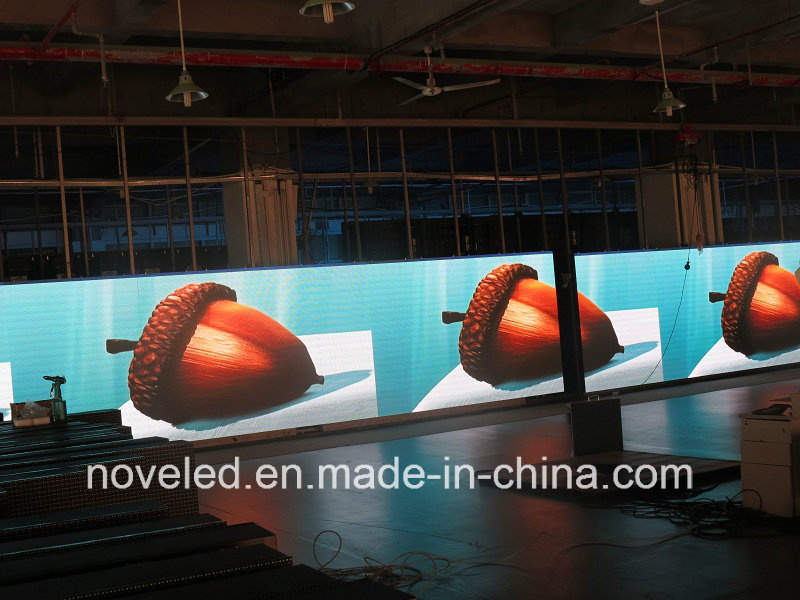

PH6.67 outdoor rental die-casting aluminum led display
Parameters
Outdoor Die-casting LED Display Series ( 640 MM X 640MM )
Pixel Pitch (mm)
6.67mm
8mm
10mm
Pixel density(pix/m2)
22545
15625
10000
LED Type
3535
3535
3535
Viewing Angle
X,Y140°
X,Y140°
X,Y140°
Brightness(nits)
≥5000
≥5000
≥5000
Drive Method
1/6
1/5
1/2
Color Depth
65536
Refresh Rate(Hz)
1920
1920
1920
Module Size (mm)
320×160×16
Cabinet Size(mm)
640×640×80
Cabinet Material
aluminum
Cabinet weight(kg)
12
17
17
Voltage
200-240V
Average.power(W/m2)
230
230
230
Max.power (W/m2)
700
700
700
IP Grade
IP65/IP54
Operating temperature/humidity
temperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/ humidity
temperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)
≥50000
Compliant Standard
CCC(CE)Rosh
1. Ultra light weight cabinets 2. Incredible high definition 3.Easy moving & instal 1.Full HD, as clear as television 2.Large view angle 3.Made of die-casting aluminium make it light weight easy to carry 4.Fast installation 5.Indoor display screen with a more accurate color 6.High quality service 7.Competative factory price and famous leading brand
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
