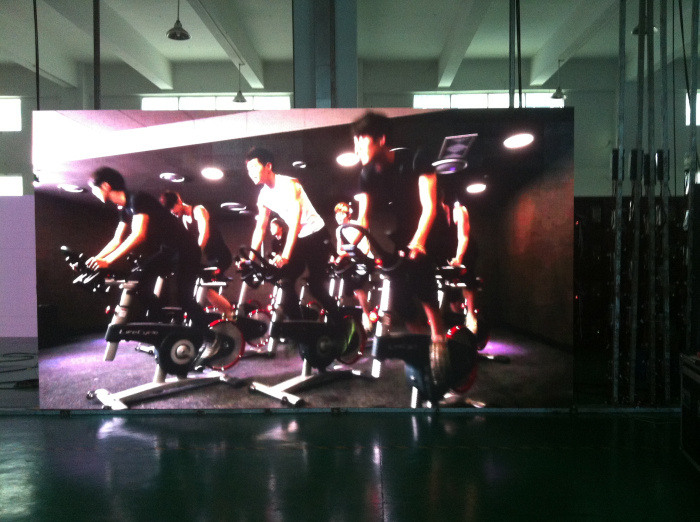

pH5 Indoor LED Display

Name: pH5 Indoor LED Display
Brand: yourledlight.com
SKU: 754550895
Availability: InStock
Rating: 4.5 (120 reviews)

Price:	US $ 738/Square Meter
Trade Terms:	FOB
Min Order:	1/Box
Pay Type:	T/T,Paypal

Contact Supplier

Shenzhen Noveled Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	PH5 SMD LED display
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:	160mm*160 Mm
Module Weight:	0.55kg
Module Resolution:	32dots*32dots for Real
Module Pixels:	1024 Dots
Cabinet Size:	640640160(Mm)
Cabinet Material:	Iron or Aluminum
Cabinet Resolution:	128DOT*128DOT for Real
Brightness:	≥1800CD/Sqm
Display Type:	LED Video Display
Tube Chip Color:	Full Color
Display Function:	Video Display
Scanning Mode:	1/16 Scan
Certification:	CCC
Pixel Configuration:	1R,1G,1B
Pixel Pitch:	5mm
Pixel Density:	40,000 dots / m²
Application:	Shopping Guide
IP Rating:	IP43
System Operating Platform:	Windows98/Me/2000/Nt/XP/Win7

Product Description

PH5 Indoor LED Display detailed and specification
With 40000dots per square meters of Indoor Full color LED Display panel PH5, of which the pixel size is 5mm.The grayscale of each is 16384, and 16,777,216 kinds of colors in total.Dynamic scanning technology is adopted to ensure the purity and stability of picture effects, the precision of display effect and variety of animation;Cabinets are made of aluminum alloy, so it's much lighter and better heat dissipation system.On the other hand, LED panel can display text, pictures, animation as well as video.
Product Features

Price Competitiveness:We have the most competitive price at the market;Also have the same even better quality.

Performance Competitiveness:Best Equality, high consistency, big viewing angle, can repair each led lamps.

Quality Competitiveness:From material to finished product, from design to production, we control all steps and every detail, which are the guarantee of the quality and reliability.

Service Competitiveness:Better service at same situation, better cooperation at same service.

LED Parameters

Item	Luminous Intensity	Viewing Angle(H/V)	Wavelength	Test Condition
Red LED	150-200mcd	120º/120º	620-630nm	25ºC,20mA
Green LED	260-330mcd	120º/120º	520-535nm	25ºC,20mA
Blue LED	55-65mcd	120º/120º	465-475nm	25ºC,20mA

Module Parameters

Pixel Pitch	5mm
Pixel Configuration	1R1G1B SMD 3in1
Module Resolution	32dots*32dots for real
Module Pixels	1024 dots
Module Size	160mm*160 mm
Module Weight	0.55KG

Cabinet Parameters

Cabinet Size(WHD)	640640160(mm)
Cabinet Resolution	128dot*128dot for real
Module Quantity	16 pcs
Cabinet Pixels	16384 dots
Pixel Density	40000 dot/sqm
Avg.Power Consumption	250W/sqm
Max.Power Consumption	750W/sqm
Material	Iron or Aluminum
Cabinet Weight	20KGfor iron cabinet; 15KG for aluminum cabinet

Screen Parameters

Brightness	≥1800cd/sqm
Contrasts (Max./Min.)	1.1:1
Driving Method	Static
View Angle	Horizontal 120° Vertical 120°
Optimal Viewing Distance	4m to 55m
Brightness Control	Red, Green and Blue 256 Grade/Each
Fresh Frequency	≥600Hz
Frame Frequency	50 - 60Hz
Input Voltage	AC220V/50Hz or AC110V/60Hz
Defects Rate	≤0.00001
Screen Weight	≤45kg/sqm for Iron cabinet /32kg/sqm for Aluminum cabinet
MTBF	>10,000 hours
Life Span	≥100,000 hours
Brightness Uniformity	<3%
Earth Leakage Current	<3mA
Protective Grade	IP45
Temperature-operating	-40ºC~60ºC
Humidity-operating	10%~90%
Operating System	Windows98/me/2000/NT/XP/win7
