Pixel Configuration:
1R, 1G, 1B
Pixel Density:
1024 dot / m²
Tube Chip Color:
Full Color
Display Function:
Video Display
Scanning Mode:
Static Scan
Average Power Consumption:
300W / m²
Certification:
CE
Pixel Pitch:
31.25mm
IP Rating:
IP66
Product Description

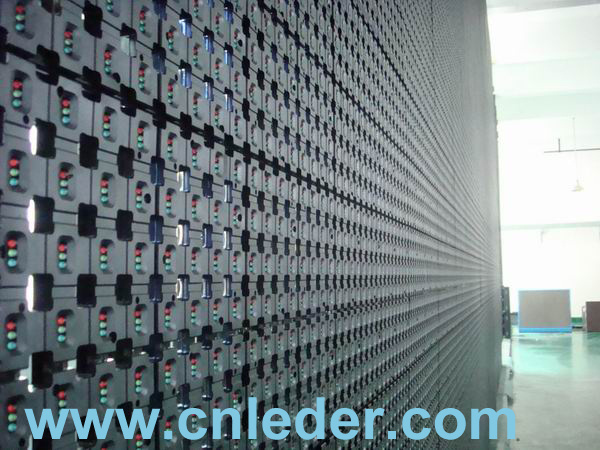

pH31.25 Outdoor Mesh LED Display:
1. Energy saving.
2. Colorful, fresh & beautiful images.
3. Competitive price.
4. Superior Uniformity
5. Extra-high Brightness
31.25mm Pixel Pitch with Oval LEDs
Parameter
Value
Pixel pitch
mm
31.25mm
Pixel density
dots/m 2
1024
Cabinet pixel type and configuration
R/G/G
1, 1, 1
Brightness
cd/m 2
≥ 1800
Module size
mm
250 x 250
Module pixel dentisy
dots
8 × 8
Cabinet size (L x W x D)
mm
1000 x 750
Cabinet weight
Kgs
5.25
Cabinet material
Plastics housing with aluminum back cover
Ingress protection
IP
IP66 front; IP43 back
Operating temperature range
-20 ~ +60
Recommended minimum viewing distance
meter
55
Viewing angle (Horizontal/Vertical)
deg.
140/ 60
Input voltage(nominal)
AC V
110V or 230V
Input power frequency
Hz
50 / 60
Input power (max)*
W / m 2
500
Input power (typical)*
W / m 2
300
Control mode
Synchronism or asynchronism
Driving mode
Direct
Frame frequency
Hz
≥ 60
Refresh rate
Hz
≥ 400
Colors
billion
68.7
Grey scale
grade
4, 096
Brightness control
Levels
Manual R, G, B each color are 256 levels, automatic 16 grades are adjustable.
Contrast ratio
1000: 1
Lifetime(50% brightness)
Hours
≥ 100, 000
Mean Time Between Failures
Hours
≥ 10, 000
Malfunction dot rate
dots
1/100, 000
Red wavelength(dominant)
nm
630
Green wavelength(dominant)
nm
525
Blue wavelength(dominant)
nm
470
Red luminance (IV)
mcd
620
Green luminance (IV)
mcd
1880
Blue luminance (IV)
mcd
450
Protection technology
Against moisture, dust, decay, static electronity, lighting, shock, and the protection fuction of over current, short circuit, over voltage and under voltage.
*Specification subjeted to change without prior notice
Notes: If the cabinet is double layer door cabinet, the back of Ingress protection is IP66
Shenzhen Leder Electronics Co., Ltd. Locates in E Building, the new world of Science and Technology Industrial Park, XiaShiJia, Gongming Street Guangming New Area, ShenZhen, Guangdong, China. LEDER is the high & new technology enterprise specializing in the Research & Development of LED displaying products, production, sales, engineering service, etc.
Based on more than 10 years of outstanding development, LEDER becomes one of the most advanced LED display manufacturers in China and also one of the biggest professional LED display manufacturers in Southern China.
With modern workshop for electronic processing, assembling, adjusting and aging, LEDER ensures the production capability of 20000 m2 LED display for all types yearly, and is able to provide one package service for our clients from consultant, production, installation, adjustment & test, training to after service.
LEDER positively practices the environmental protection and energy saving. In 2008, LEDER firstly launched OUTDOOR SMD (5050, 5060) 3IN1 FULL COLOR LED DISPLAY. Solved 3 difficult problems on outdoor SMD LED Displays successfully - brightness, heat extraction and water proofing, and made-up deficiencies of the traditional LED Display of small viewing angle, module's nonuniform color, large power consumption, overweight, and so on. In 2009, LEDER brought out LED lighting products: Flexible LED video strip, LED flexible strip, LED video pels light, LED module^^, which attracts batches eyes and gains very good comment from experts and audients.
Since the foundation, LEDER has been insisting the tenet of "Build first-class brand, win with superior quality and service", and has actively conducted the ISO 9001 system, its products have been awarded certificates such as CE, RoHS. Besides owning a few of independent core technology and patents, LEDER firstly built up the enterprise standard, which effectively promotes the healthy development of Chinese LED display industry. Successively, LEDER undertakes batches of high quality projects in domestic and oversea. Now LEDER has jumped to be the biggest professional LED display manufacturer in ShenZhen, and has set up its leading position in optoelectronic industry, and to be as sponsors at the 16th Asian Games.
LEDER's General Manager has been directly working on the management of R&D, production, engineering, and after-service for more than 15 years. He has experienced the stage of starting, developing and maturing of China's LED Display industry. He would like to cooperate with all customers, leading all of LEDER staffs, to witness the prosperity of LEDER and LED Display industry together.
"Share our successful happiness with our clients" is the business concept we always keep. With your continuing care and support, we, together enter to LED products' energy saving, colorful, and bright future.
