Pixel Pitch:
16mm
Lifetime:
≥100000 Hours
Control Channel:
31CH
Base Material:
Aluminum
LED Quantity:
2048PCS
Pixel Configuration:
1R1G1B
Certification:
CE
IP Rating:
IP45
Product Description

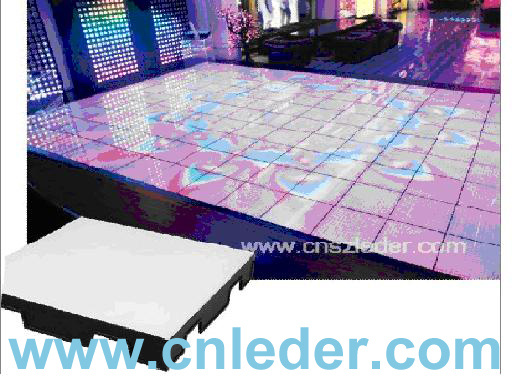

pH16 Stage Dance LED Display:
1. Adopting fully-sealed structure design, it makes cabinet strong and light, easy to assemble and move.
2. Adopting strong stable, anti-skidding, transparent aluminum material, highly wear-resisting resin mask, we can directly step on the screen. Good shockproof, bearing heavy weight more than 1000kgs, cars can go through it.
3. One card controls one cabinet, 16bit grey level processing, with DOT by DOT correction, makes clear and realistic picture,
4. Low price, excellent quality. Apply to car show, stage, top-end hall, KTV bar, clubs and other entertainments. Play colorful HD video, create splendid atmosphere, and create excellent effection.
Pixel Configuration
Pixel configuration
Every pixel made by 1R1G1B SMD 3in1
LED parameters
R: λ d(620-625nm) IV: (170-220mcd)
G: λ d(520-525nm) IV: (640-830mcd)
B: λ d(465-470nm) IV: (100-130mcd)
Main Parameters
No
Item
Parameters
1
Product no
LD-P16
2
Pixel Pitch(mm)
16
3
Pixel Density(Dot/)
3906(Virtual)
4
Module Size(mm)
512*256
5
Module Resolution(Dot)
32*16
6
Module Quantity(Entries)
2
7
Cabinet Size(Mm)
512(W)*512(H)
8
Resolution/Cabinet(Dot)
32*32
9
Brightness(CD/)
≥ 1000
10
Viewing Angle(Deg)
145/120
11
Best Viewing distance(m)
16
12
Weight(kg/)
15KG
13
Gray Level
8192
14
Working Voltage
110V-220 V± 15% 47-63HZ
15
Scanning Mode
1/8(Static state scan)
16
Control Mode
Constant Current Driver
17
Protection Level(Ip)
IP45
18
Power consumption(W/)
Max: 400 Average: 200
19
Environment temperature
-20-60
20
Working Environment Humidity
10%-90%
21
product life span(h)
100000(h)
22
Display Mode
1024× 768 1280× 1024
23
Display Color
8192*8192*8192
24
Refresh Frequency
> 1000HZ
25
frame frequency
60HZ
26
Cabinet thickness
60mm
