pH3 Black Lamp Die-Casting Aluminum LED Display

Name: pH3 Black Lamp Die-Casting Aluminum LED Display
Brand: yourledlight.com
SKU: 758887465
Availability: InStock
Rating: 4.5 (26 reviews)

Price:	US $ 1984/Square Meter
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Shenzhen Noveled Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	PH3 SMD2121 black lamp LED display
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:	192mm*192mm
Module Resolution:	64dots*64dots for Real
Module Weight:	0.5kg
Pixel Configuration:	1r1g1b SMD2121
Cabinet Size(WHD):	57657680(Mm)
Cabinet Resolution:	192DOT*192DOT for Real
Cabinet Pixels:	36864 Dots
Material:	Aluminum
Brightness:	More Than 1800CD/Sqm
Warranty:	2 Years
Display Type:	LED Video Display
Tube Chip Color:	Full Color
Display Function:	Video Display
Scanning Mode:	1/16 Scan
Certification:	CCC
Pixel Configuration:	1R,1G,1B
Application:	Shopping Guide
IP Rating:	IP43
Pixel Pitch:	3mm
Pixel Density:	111111dots/Sqm
System Operating Platform:	Windows98/Me/2000/Nt/XP/Win7

Product Description

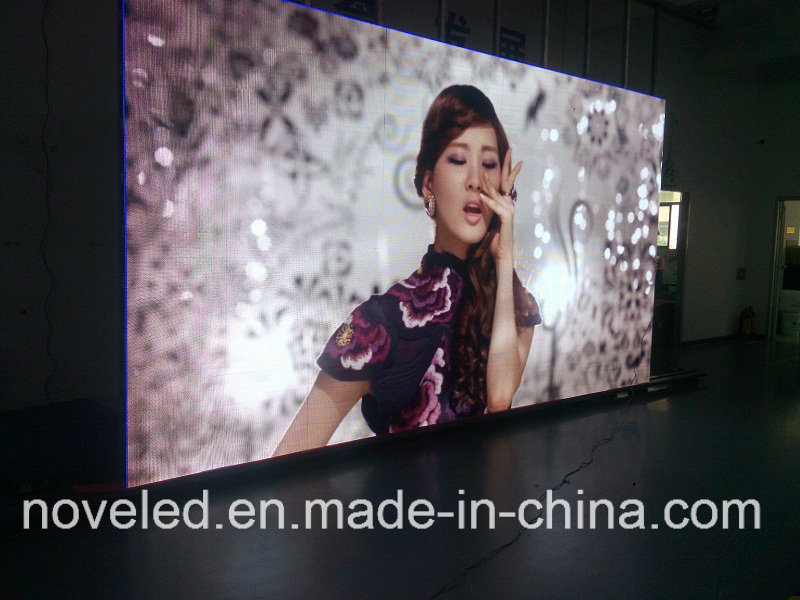

PH3 black lamp die-casting aluminum led display
Product Features

High definition and could be adjusted, so it can meet the request of the customers according the application environments.

Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light.

To picture, video and character, have clear, exquisite and real display effects.

Big viewing angle to 120 degree at horizontal line, 120 degree at vertical line, you can see at every angle at this range, no brightness varies, no picture twists, no color excursion.

Can repair each led lamp, so the cost of maintenance is lower, and easy to repair.

LED Parameters

Item	Luminous Intensity	Viewing Angle(H/V)	Wavelength	Test Condition
Red LED	150-200mcd	120º/120º	620-630nm	25ºC,20mA
Green LED	260-330mcd	120º/120º	520-535nm	25ºC,20mA
Blue LED	55-65mcd	120º/120º	465-475nm	25ºC,20mA

Module Parameters

Pixel Pitch	3mm
Pixel Configuration	1R1G1B SMD2121 3in1
Module Resolution	64dots*64dots for real
Module Pixels	4096 dots
Module Size	192mm*192mm
Module Weight	0.5KG

Cabinet Parameters

Cabinet Size(WHD)	57657680(mm)
Cabinet Resolution	192dot*192dot for real
Module Quantity	9 pcs
Cabinet Pixels	36864 dots
Pixel Density	111111 dot/sqm
Avg. Power Consumption	250W/sqm
Max. Power Consumption	750W/sqm
Material	Aluminum
Cabinet Weight	20KG for aluminum cabinet

Screen Parameters

Brightness	≥1800cd/sqm
Contrasts (Max. /Min.)	1.1:1
Driving Method	1/16 scan constant current
View Angle	Horizontal 120° Vertical 120°
Optimal Viewing Distance	3m to 50m
Brightness Control	Red, Green and Blue 256 Grade/Each
Fresh Frequency	≥600Hz
Frame Frequency	50 - 60Hz
Input Voltage	AC220V/50Hz or AC110V/60Hz
Defects Rate	≤0.00001
Screen Weight	≤45kg/sqm for Iron cabinet /32kg/sqm for Aluminum cabinet
MTBF	>10,000 hours
Life Span	≥100,000 hours
Brightness Uniformity	<3%
Earth Leakage Current	<3mA
Protective Grade	IP45
Temperature-operating	-40°C to 60°C
Humidity-operating	10% to 90%
Operating System	Windows98/me/2000/NT/XP/win7

Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...

With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.

NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.

We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
