North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
RoHS,:
UL
ISO9001:
CE
Usage:
Outdoor
Tube Chip Color:
Full Color
Display Function:
Video
Certification:
CE
Product Description

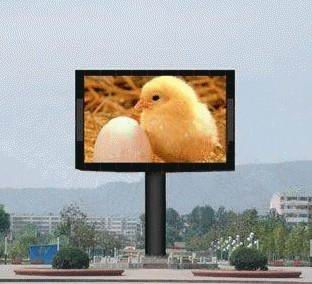

pH12 Outdoor Full Color LED Display
1) Relatively low cost
2) Stable capability
3) High brightness
4) Good after-sales
Display and control feature
Structure feature
Specification
Parameter
Specification
Parameter
Pixel Pitch
12 mm
Module size
192 mm*192 mm
Pixel composing
1R1G1B
Display resolution/module
16 dots*16 dots
Wavelength (R)
620-630nm
Standard cabinet size
960mm*768mm
Wavelength (G)
520-535nm
Cabinet Weight
≤ 65 Kg/sq. m
Wavelength (B)
465-475nm
Protection classification
IP65
Wave Angle (H)
140° (H)/60° (V)
Install mode
Wall mounted, hung and stand structure
LED package
DIP 346
Cabinet Material
Iron/Aluminum
Density per sq. m
6, 944pixel
Working power
Grey scale
12-16bit
Specification
Parameter
Whiteness brightness
≥ 7000
Working voltage
AC 220v/50Hz± 10% or AC110v/50Hz± 10%
Frame frequency
60 Hz
Average/Max power
520W/1300W per sq. m
Refreshing frequency
More than 400Hz
Short circuit protection
Yes
Driving method
1/4 Constant Driving
Led Lamp type
Nichia/Cree/Silan/OPTO
Control mode
synchronous
Working environment
Display port
DVI
Environment
Outdoor
Malfunction dot
3/100, 000
Working temperature
--20~50
MTBF
10, 000 hours
Working Humidity
10~90%
Shenzhen Leder Electronics Co., Ltd. Locates in E Building, the new world of Science and Technology Industrial Park, XiaShiJia, Gongming Street Guangming New Area, ShenZhen, Guangdong, China. LEDER is the high & new technology enterprise specializing in the Research & Development of LED displaying products, production, sales, engineering service, etc.
Based on more than 10 years of outstanding development, LEDER becomes one of the most advanced LED display manufacturers in China and also one of the biggest professional LED display manufacturers in Southern China.
With modern workshop for electronic processing, assembling, adjusting and aging, LEDER ensures the production capability of 20000 m2 LED display for all types yearly, and is able to provide one package service for our clients from consultant, production, installation, adjustment & test, training to after service.
LEDER positively practices the environmental protection and energy saving. In 2008, LEDER firstly launched OUTDOOR SMD (5050, 5060) 3IN1 FULL COLOR LED DISPLAY. Solved 3 difficult problems on outdoor SMD LED Displays successfully - brightness, heat extraction and water proofing, and made-up deficiencies of the traditional LED Display of small viewing angle, module's nonuniform color, large power consumption, overweight, and so on. In 2009, LEDER brought out LED lighting products: Flexible LED video strip, LED flexible strip, LED video pels light, LED module^^, which attracts batches eyes and gains very good comment from experts and audients.
Since the foundation, LEDER has been insisting the tenet of "Build first-class brand, win with superior quality and service", and has actively conducted the ISO 9001 system, its products have been awarded certificates such as CE, RoHS. Besides owning a few of independent core technology and patents, LEDER firstly built up the enterprise standard, which effectively promotes the healthy development of Chinese LED display industry. Successively, LEDER undertakes batches of high quality projects in domestic and oversea. Now LEDER has jumped to be the biggest professional LED display manufacturer in ShenZhen, and has set up its leading position in optoelectronic industry, and to be as sponsors at the 16th Asian Games.
LEDER's General Manager has been directly working on the management of R&D, production, engineering, and after-service for more than 15 years. He has experienced the stage of starting, developing and maturing of China's LED Display industry. He would like to cooperate with all customers, leading all of LEDER staffs, to witness the prosperity of LEDER and LED Display industry together.
"Share our successful happiness with our clients" is the business concept we always keep. With your continuing care and support, we, together enter to LED products' energy saving, colorful, and bright future.
