| Price: | US $ 935-943/Square Meter |
|---|---|
| Trade Terms: | FOB,EXW,CIF |
| Min Order: | 5/Square Meter |
| Pay Type: | T/T,Western Union,Paypal |

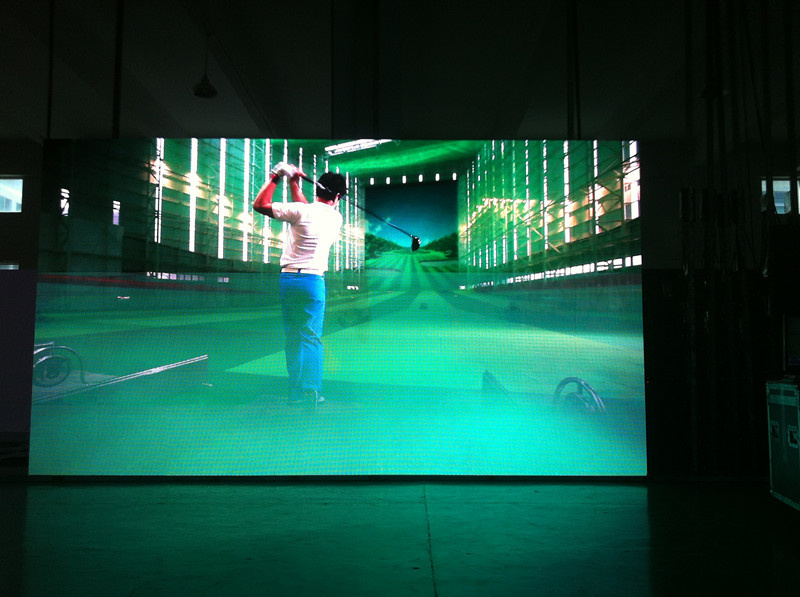

| Prod Model: | PH10 SMD3535 black lamp outdoor led display |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: | 160mm*160mm |
| Module Resolution: | 16*16 |
| Cabinet Size: | 960*960*160(mm) |
| Cabinet Resolution: | 96DOT*96DOT for Real |
| Cabinet Pixels: | 9216 Dots |
| Material: | Iron |
| Cabinet Weight: | 50kg for Iron Cabinet; 40kg for Aluminum Cabin |
| Brightness: | More Than 5500CD/Sqm |
| Module Weight: | 1.2kg |
| Warranty: | 2 Years |
| Tube Chip Color: | Full Color |
| IP Rating: | IP65 |
| Pixel Pitch: | 10mm |
| Pixel Configuration: | 1R, 1G, 1B |
| Display Function: | Market Display |
| Average Power Consumption: | 300W / m² |
| Pixel Density: | 10000 dot / m² |
| Scanning Mode: | 1/4 Scan |
| Display Type: | LED Video Display |
| Application: | Advertising |
| Certification: | CCC |
Product Features
LED display has been widely adopted in this century compared to the conventional technology that has allowed for further enhancement, integration and various applications in the different environment. |
The deployment of LED as the display elements in the various applications as it able to produce various colors combinations, energy savings, integration ability, high luminance, longer life span, low maintenance, low heat generation, weather proof design, high temperature & UV resistant, true color emission, clear visibility, longer distance viewing and wider viewing angle. |
Nowadays, turning to SMD as the technology for LED display products is the market trend. OIC is one of the most pioneering companies who adopts and professional on SMD technology. Mainly we are using 3528 and 3535 types, and 3528 means that the encapsulation size is 3.5*2.8 mm while 3535 means 3.5mm*3.5 mm. SMD can be both of indoor, outdoor using and SMD module. |
LED Parameters
Item | Luminous Intensity | Viewing Angle(H/V) | Wavelength | Test Condition |
|
Red LED | 500-900mcd | 120º/120º | 620-630nm | 25ºC,20mA | |
Green LED | 1800-2200mcd | 120º/120º | 520-535nm | 25ºC,20mA | |
Blue LED | 250-500mcd | 120º/120º | 465-475nm | 25ºC,20mA |
Module Parameters
Pixel Pitch | 10mm |
|
Pixel Configuration | 1R1G1B SMD 3in1 | |
Module Resolution | 32dots*32dots for real | |
Module Pixels | 256 dots | |
Module Size | 320mm*320mm | |
Module Weight | 1.2KG |
Cabinet Parameters
Cabinet Size(W*H*D) | 960*960*160(mm) |
|
Cabinet Resolution | 96dot*96dot for real | |
Module Quantity | 9 pcs | |
Cabinet Pixels | 9216 dots | |
Pixel Density | 10000 dot/sqm | |
Avg. Power Consumption | 250W/sqm | |
Max. Power Consumption | 750W/sqm | |
Material | Iron or Aluminum | |
Cabinet Weight | 50KG for iron cabinet; |
Screen Parameters
Brightness | ≥5500cd/sqm |
Contrasts (Max. /Min.) | 1.1:1 |
Driving Method | 1/4 scan |
View Angle | Horizontal 120° Vertical 120° |
Optimal Viewing Distance | 10m to 100m |
Brightness Control | Red, Green and Blue 256 Grade/Each |
Fresh Frequency | ≥600Hz |
Frame Frequency | 50 - 60Hz |
Input Voltage | AC220V/50Hz or AC110V/60Hz |
Defects Rate | ≤0.00001 |
Screen Weight | ≤65kg/sqm for Iron cabinet /45kg/sqm for Aluminum cabinet |
MTBF | >10,000 hours |
Life Span | ≥100,000 hours |
Brightness Uniformity | <3% |
Earth Leakage Current | <3mA |
Protective Grade | IP65 |
Temperature-operating | -40°C~60ºC°C |
Humidity-operating | 10%~90% |
Operating System | Windows98/me/2000/NT/XP/win7 |
