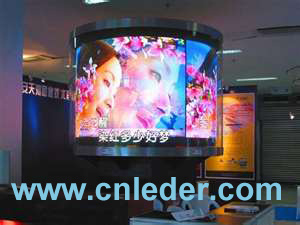

pH10 Indoor Full Color Arc LED Display Board
| Price: |
Negotiable/Square Meter |
| Trade Terms: |
FOB |
| Min Order: |
5/Square Meter |
| Pay Type: |
T/T |
pH10 Indoor Full Color Arc LED Display Board:
Outdoor full color LED Display: Perfect vivid image, super brightness, long life span and stable work, waterproof, support any format of video etc. LED Display Cabinet design for easy install and dismantle. ISO&CE certificates, best quality, best price.
Specification P10
LED Display Panel Pixel Pitch 10mm
Panel Size 960mm*960mm
Pixel Density 10000/m2
Pixel Configuration 1R1PG1B
Panel Resolution (pixel) 96*96
Pixel Number/Panel 9216
Weight of Panel 60kg/m2
Main parameters Viewing Distance 8-300m
Brightness 8000CD/m2
Power Consumption (average) 250/m2
Power Consumption (max. ) ≤ 1000W/m2
Control Mode Synchronization
Drive Mode driven by static and constant current
|
Item |
Unit |
PH10s Outdoor 3in1 full color |
|
Model |
|
PH10s |
|
Pixel pitch |
mm |
10 |
|
Pixel density |
dots/m2 |
10000 |
|
Pixel Composition |
R, G, B |
1R1G1B |
|
Size of Module |
(L× W)mm |
320× 160 |
|
Module resolution |
(L× W)dots |
32× 16 |
|
Display weight |
kg/m2 |
≤ 55 |
|
Viewing angle |
|
160° /160° |
|
Panel thickness |
mm |
≤ 165 |
|
Normal power consumption |
W/m2 |
650 |
|
Max. power consumption |
W/m2 |
1600 |
|
Driving mode |
|
1/2 scan constant current driving |
|
Frame frequency |
Hz |
60 |
|
Refresh frequency |
Hz |
≥ 400 |
|
Grey scale/color |
Billion |
1024/1.07 |
|
Brightness of white balance |
cd/m2 |
≥ 5800 |
|
Power supply |
AC220V/50Hz(± 10%)or AC110V/50Hz(± 10%) |
|
Environment temperature |
-20° ~+50° |
|
Life time |
≥ 100000 |
|
Malfunction dot rate |
≤ 3/100000 |
|
MTBF |
> 10000 |
| Prod Model: |
PH10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
10mm |
| Scanning Mode: |
1/2 Scan |
| Pixel Density: |
10,000 dots / m² |
| Display Function: |
Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP43 |
| System Operating Platform: |
WIN XP |
| Certification: |
CE |
| Application: |
Stage Performance |
Shenzhen Leder Electronics Co., Ltd. Locates in E Building, the new world of Science and Technology Industrial Park, XiaShiJia, Gongming Street Guangming New Area, ShenZhen, Guangdong, China. LEDER is the high & new technology enterprise specializing in the Research & Development of LED displaying products, production, sales, engineering service, etc.
Based on more than 10 years of outstanding development, LEDER becomes one of the most advanced LED display manufacturers in China and also one of the biggest professional LED display manufacturers in Southern China.
With modern workshop for electronic processing, assembling, adjusting and aging, LEDER ensures the production capability of 20000 m2 LED display for all types yearly, and is able to provide one package service for our clients from consultant, production, installation, adjustment & test, training to after service.
LEDER positively practices the environmental protection and energy saving. In 2008, LEDER firstly launched OUTDOOR SMD (5050, 5060) 3IN1 FULL COLOR LED DISPLAY. Solved 3 difficult problems on outdoor SMD LED Displays successfully - brightness, heat extraction and water proofing, and made-up deficiencies of the traditional LED Display of small viewing angle, module's nonuniform color, large power consumption, overweight, and so on. In 2009, LEDER brought out LED lighting products: Flexible LED video strip, LED flexible strip, LED video pels light, LED module^^, which attracts batches eyes and gains very good comment from experts and audients.
Since the foundation, LEDER has been insisting the tenet of "Build first-class brand, win with superior quality and service", and has actively conducted the ISO 9001 system, its products have been awarded certificates such as CE, RoHS. Besides owning a few of independent core technology and patents, LEDER firstly built up the enterprise standard, which effectively promotes the healthy development of Chinese LED display industry. Successively, LEDER undertakes batches of high quality projects in domestic and oversea. Now LEDER has jumped to be the biggest professional LED display manufacturer in ShenZhen, and has set up its leading position in optoelectronic industry, and to be as sponsors at the 16th Asian Games.
LEDER's General Manager has been directly working on the management of R&D, production, engineering, and after-service for more than 15 years. He has experienced the stage of starting, developing and maturing of China's LED Display industry. He would like to cooperate with all customers, leading all of LEDER staffs, to witness the prosperity of LEDER and LED Display industry together.
"Share our successful happiness with our clients" is the business concept we always keep. With your continuing care and support, we, together enter to LED products' energy saving, colorful, and bright future.
