Product Name:
P6/P8/P10/P16/P20 Outdoor DIP/SMD LED Display
Module Size:
256mm*128mm
IC:
Mbi5020
LED Chip:
Epistar
Brightness:
6000-8000CD/Sq.M
Cabinet Size:
768mm*768mm
Cabinet Material:
Iron/Aluminum/Rental Cabinet
Weight:
50kg/Sq.M
Function:
Video/Graphic/Text
IP Grade:
IP65 Front/IP54 Back
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
600W / m²
Scanning Mode:
1/4 Scan
Display Type:
LED Video Display
Application:
Stage Performance
Certification:
CCC
Pixel Pitch:
8mm
Pixel Density:
15625dots/Sq.M
Product Description
Product name:P6/P8/P10/P16/P20 Outdoor DIP/SMD Full color Advertising LED Screen Display
Pixel pitch
8mm
Module size
256mm*128mm
Module density
15625dots/sqm
Module resolution
32*16
Pixel configuration
Smd1r1g1b
Red wavelength
Epistar taiwan 625±2nm
Green wavelength
Epistar taiwan 525±2nm
Blue wavelength
Epistar taiwan 470±2nm
Best viewing distance
From 10 to 150
Horizontal viewing angle
110°
Vertical viewing angle
90°
Maximum power consumption
Below 800w
Brightness
7500cd/sqm
Gray scale
More than 4096
Control method
Synchronization
Driving method
4sconstant current
Frame frequency
60hz
Refresh frequency
More than 300 hz
Working voltage
Ac220v±5%
Ip grade
Ip65
Working temperature
-20°c±50°c
Mtbf
More than 5,000 hours
Life span
More than 100,000hours
Cabinet style
Waterproof cabinet
Cabinet size
W1024*h1024*d180mm
Cabinet weight
55kgs

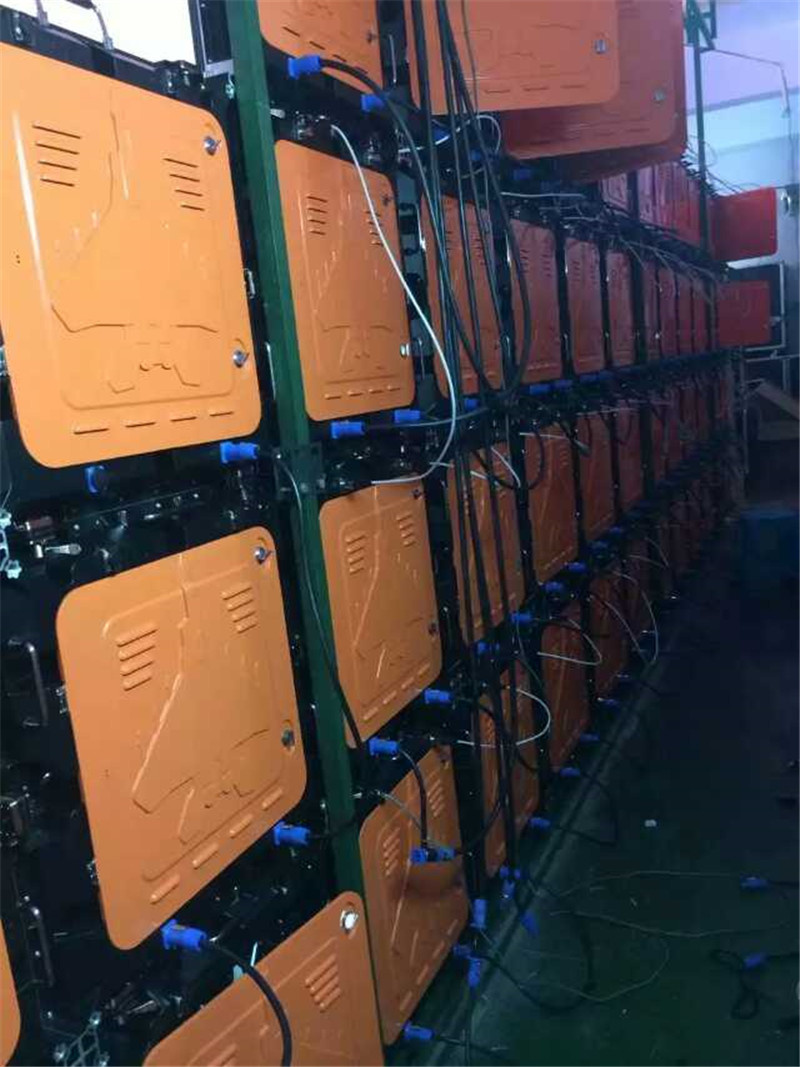

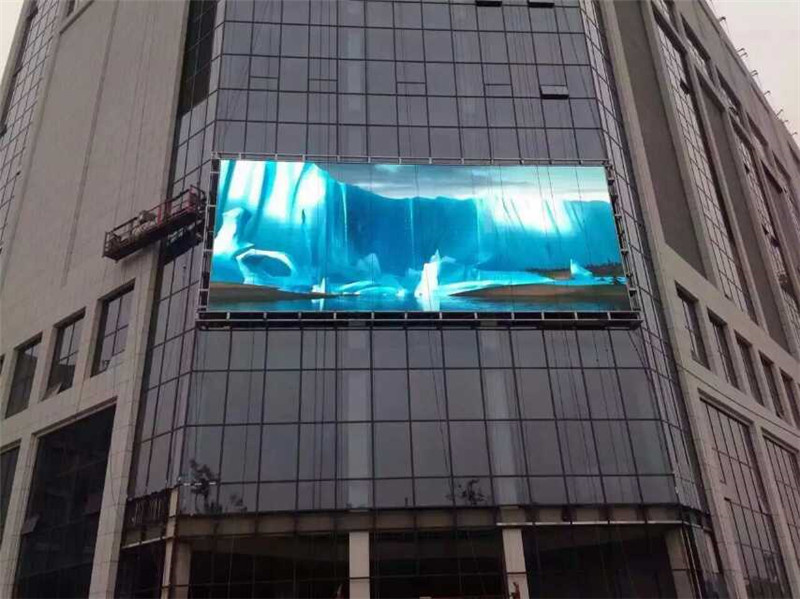

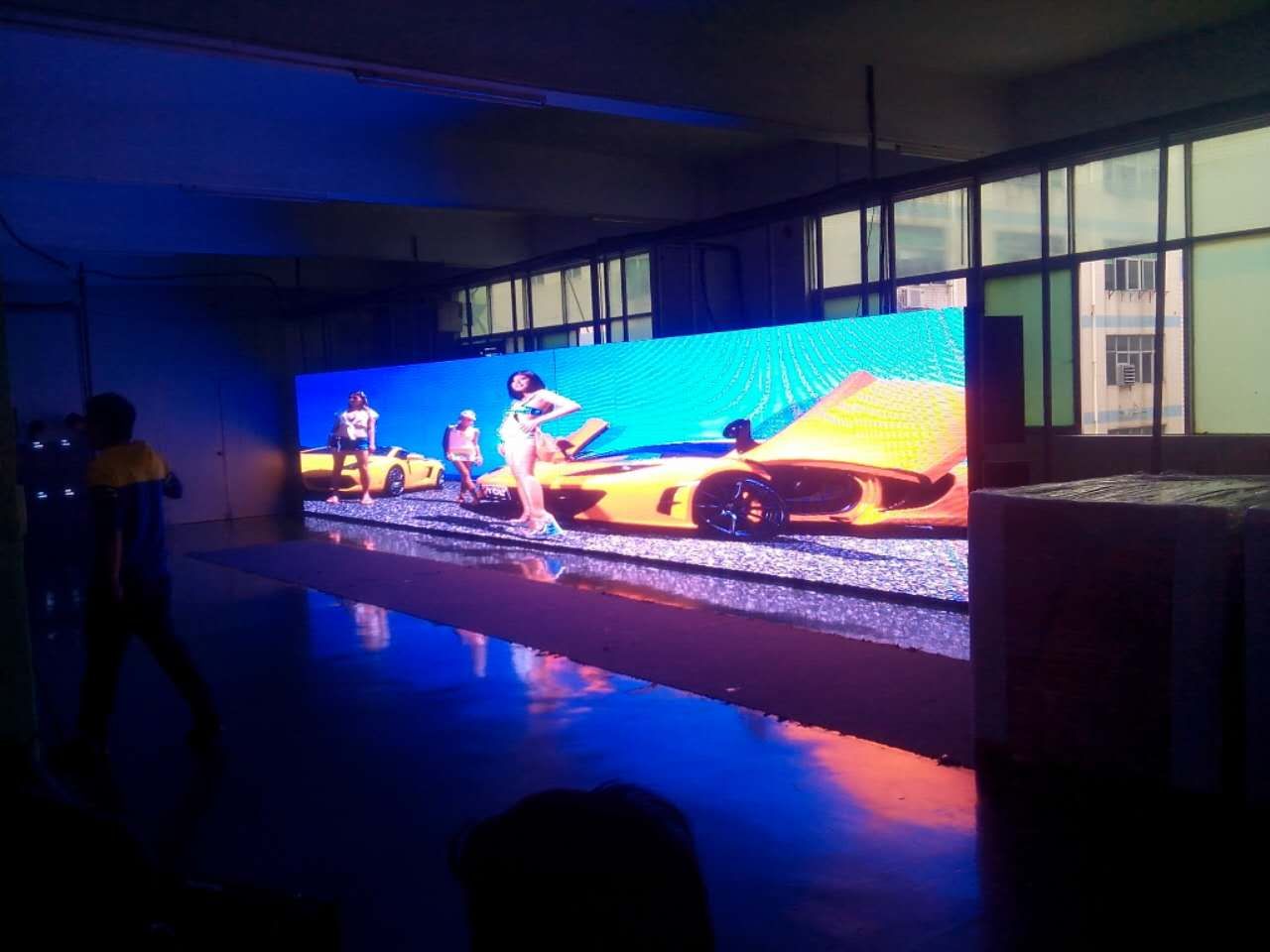

Project pictures:
Why choosed us :
1.Price advantage:No.1 cost effective 2.Quality advantage:Serious qc control system , best material 3.Service advantage:After service dept& tech dept.Perfect after sales system
Product list:
1.P1.9/p2.5/p3/p4/p5/p6/p7.62/p10...Indoor full color led display; 2.P5/p6/p7/p8/p10/p12/p16/p20/p25...Outdoor full color led screen; 3.Indoor/outdoor/semi-outdoor single/dual color led panel etc.
Advantage:
*durability *high quake-proof, water proof and fire proof *easy to install and maintenance *fast construction, save time and labor cost *prefabricated and customized design *high space efficiency *life time:Over 25-50years *environment friendly *nice appearance
Service:
Our goal is not only to provide high quality steel structure building, but also to maintain a personalized and professional relationship with each customer. No matter how big or small your requirement we will do our best to meet your demand.One stop service from design, manufacture,deliver to installation and after-service. We can manufacture strictly according to your drawings and request. We can design ourself to supply you a most suitable proposal to you.
Quality:
Raw material reserves:Steel bought from major steel mill Full and advanced equipment:Cnc laser cutting machine, vertical machining centers, cnc bending machines, nc drilling machine cnc continuous mode of production lines etc
Strictly quality control:Manufacture strictly according to drawings, inspection every link,pre assembled before delivery.
Design& delivery & packing:
Sales and engineer joint into an strong group, absorb your request and ideal image, give your reasonable and suitable suggestion, supply best design and expected building model, quotation, and design for you. With more than 3000tons capacity each month, quotation+manufacture time + deliver time+installation time will better than local manufacturer. Packed in container by sea or by train, with stable package for no damage during transpotation.
Certificate:
We have iso9001:2008 certificate, aisa inspection, sgs inspection and other third party inspection acception.
Being an over 12 years' LED display supplier, our company has developed an outstanding reputation for manufacturing and distributing all types of premium indoor and outdoor LED displays for commercial use including outdoor LED displays, LED billboards, mobile LED trailers and more at manufacture direct pricing. We are a leader in advanced LED technology with proprietary signage and software solutions.
