LED Specs:
SMD3535
Module Size(mm):
192X96or 192X192
Cabinet Size(mm)(Wxhxt):
960X960X190
Cabinet Weight:
42kg
Brightness:
More Than 6000CD/M2
Cabinet Material:
Cold Rolled Steel
IP:
Front IP65
Viewing Distance:
>6m
Viewing Angle:
H: 120 V: 120
Display Capability:
Text, Graph and Video
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Scanning Mode:
1/4 Scan
Display Type:
LED Video Display
Certification:
ETL
Pixel Pitch:
6mm
Average Power Consumption:
260
Pixel Density:
27777
Application:
Information
Product Description
Keywords: LED Display,Outdoor LED display screen , Outdoor led screen, Outdoor LED panel, Outdoor die-casting aluminum LED screen.
Outdoor Fixed LED Display Screen
Technical Specifications
Technical Specifications
Items
P6mm
P8mm
P8mm
P10mm
P16mm
Pixel
1R1G1B
1R1G1B
1R1G1B
1R1G1B
1R1G1B
Configuration
SMD3535
SMD3535
DIP
DIP
DIP
Pixel Pitch
6mm
8mm
8mm
10mm
16mm
Pixel Density
27,777
15,625
15,625
10,000
3,906
Module Size(mm)
192x96or 192x192
256x128
256x128
160x160
256x128
Pixels/Module
32x16 or 32x32
32x16
32x16
16x16
16x8
Cabinet Size(mm)(WxHxT)
960x960x190
1024x1024x190
1024x1024x190
960x960x190
1024x1024x190
Pixels/Cabinet
160x160
128x128
128x128
96x96
64x64
Cabinet Weight
42KG
48KG
58KG
51KG
58KG
Brightness
>6000cd/
>5000cd/
>7000cd/
>7000cd/
>7000cd/
Viewing Distance
>6m
>8m
>8m
>10m
>16m
Power
Max: 1300
Max: 1000
Max: 1000
Max: 1000
Max: 1000
Consumption(W/)
Ave: 260
Ave: 260
Ave: 300
Ave: 300
Ave: 200
Driver Mode
1/4 scan
1/4 scan
1/4 scan
1/4 scan
Static Latching
Viewing Angle
H: 120°; V: 120°
H: 110°; V: 60°
Cabinet Material
Cold Rolled Steel
Refresh Rate
300-3000HZ adjustable
LED Life
100,000 hours
Supply Voltage
AC220V/50HZ; AC110V/60HZ
Operating Temperature
-20ºC ~ +50ºC
Operating Humidity
10% - 90%
Gray Scale
Red, Green and Blue each 16K
Display Color
4096 Billion
IP Rating
Front IP65
Display Capability
Text, Graph and Video

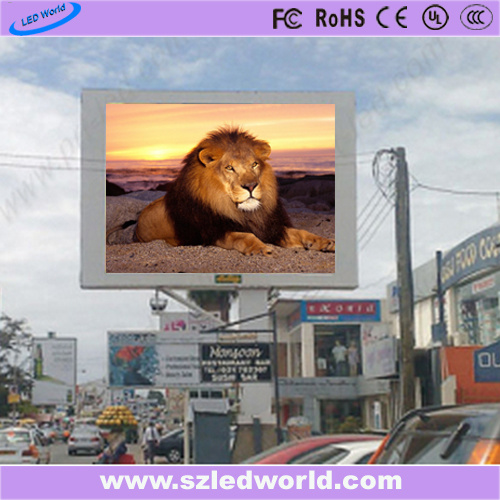

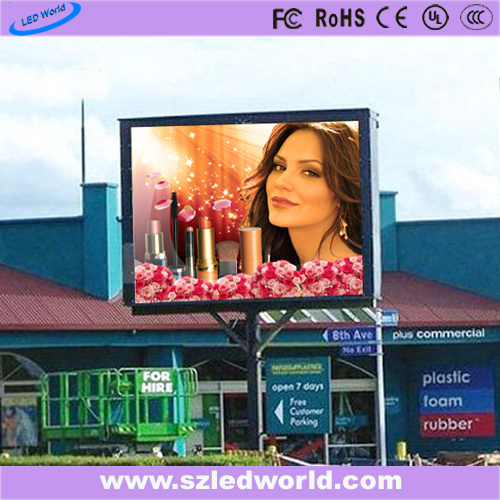

Project case:

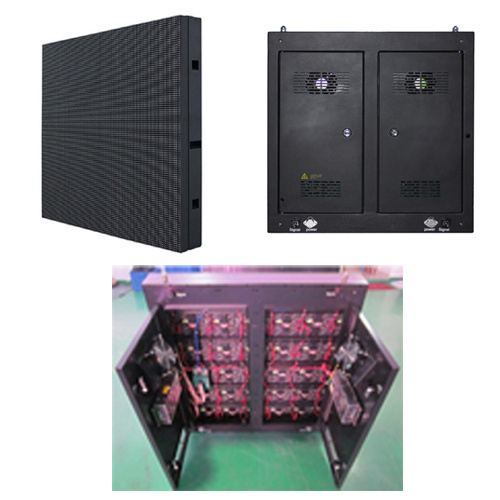

Product detail:

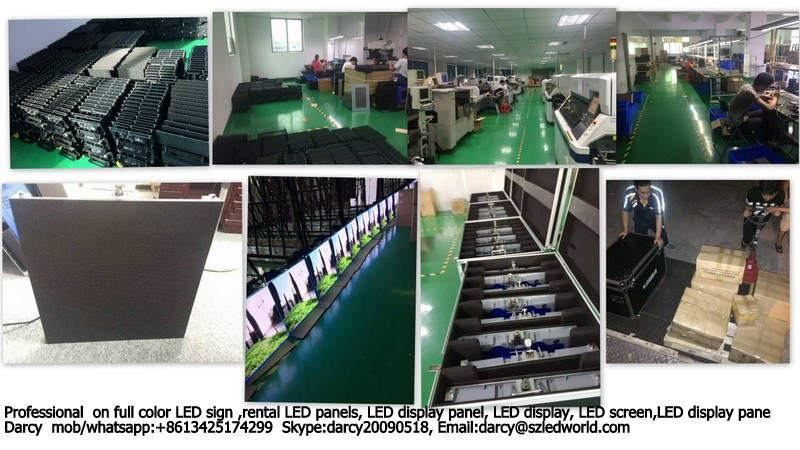

Workshop:
Shenzhen LED World Co., Ltd has focused on export business since 2009, who specialized in supplying the solutions of LED display screens, LED signs for worldwide market. The products series include small pixel pitch LED display, rental LED display screen, advertising LED display, stadium LED sign, LED ball screen, LED floor screen, creative LED display screens and so on. The above products are widely used in advertising media, public facilities, sports, entertainment, military, traffic and other industries, exported to USA, Mexico, Greece, Spain, Italy, UK, Thailand, Uganda, Nigeria, Russia, India, Turkey, Thailand, Vietnam, Brazil, Australia etc more than 20 countries and regions, and gained good reputation form the clients.
LED WORLD depends on the excellent outstanding R&D technicians, skilled & experienced oversea sales team, who adhere to" customer first, quality first, reputation first" as operating principle, making our future is better and better day by day.
Warmly welcome you visit our company to innovate and win glory together.
