Cabinet Size:
576mm X 576
Brightness:
1500CD/ Sqm
Warranty Time:
2 Years
Display Type:
LED Video Display
Tube Chip Color:
Full Color
Display Function:
Video Display
Scanning Mode:
1/16 Scan
Certification:
CE
Pixel Configuration:
1R,1G,1B
Pixel Pitch:
6mm
Pixel Density:
27,777 dots / m²
Application:
Stage Performance
System Operating Platform:
WIN XP
IP Rating:
IP65
Product Description

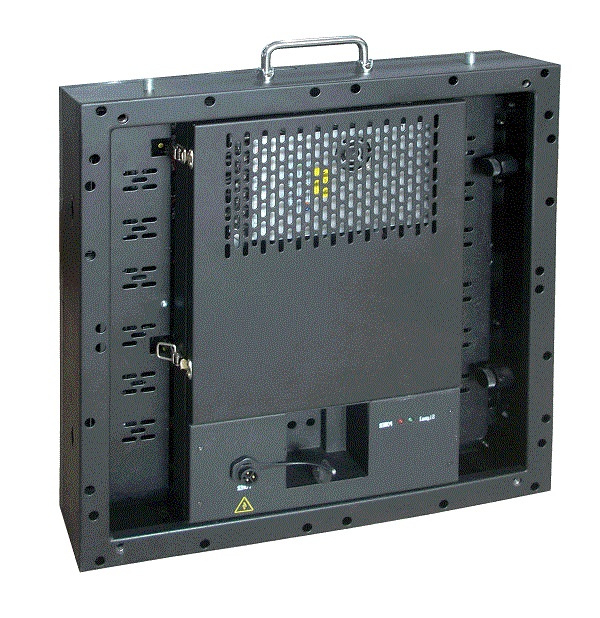

Indoor super slim LED Display cabinet
Indoor Super Slim cabinet feature
Super-slim and high transparency design, aluminum alloy cabinet, made the screen extremely light and also a good-looking; Perfect distribution of light, allows you always get the best vision in spite of the viewing angle changing; Special mask design, provide better protection for the LED lamp and better shading for the lights; Internally installed power supplier; Good looking cabinet, quick for installation, and also easy to transport

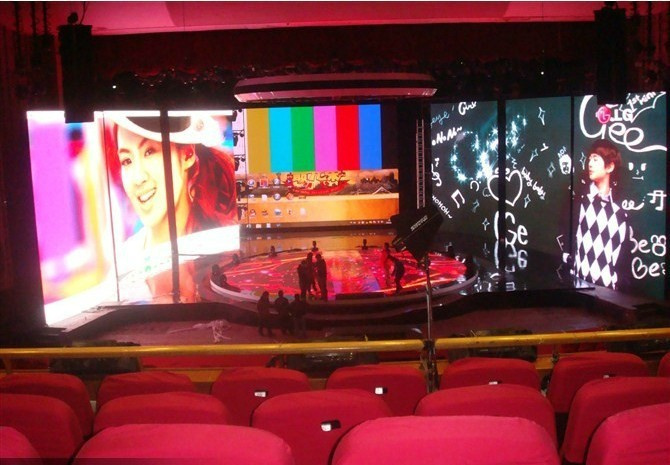

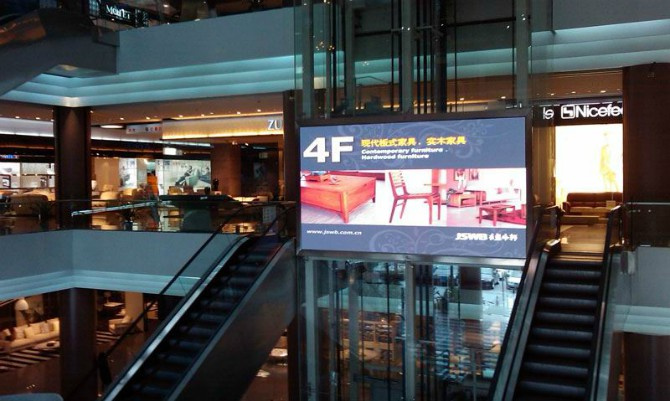

LED Display project picture
P6 indoor led display specification
Specification
value
Specification
value
Pixel pitch
6mm
Transparency
20/100
Cabinet resolution
96*96 pixels
Refresh rate
≥1000Hz
Pixel configuration
1R1G1B 3-in-1 SMD3528
Frame rate
≥60Hz
Density
27777dots/SQM
Input voltage
AC110V 220V 50-60Hz
Module size
288mm×288mm
Max power consumption
600W/m 2
Cabinet size
576mm×576mm×120mm
Average power consumption
300W/m 2
Cabinet material
iron
working temperature
-20C- +50C
Cabinet weight
12Kg
Storage temperature
-35C- +85C
Brightness
≥1500cd/SQM
Humidity
10%-90%RH
Viewing angle(V/H)
120°/120°
Life span
≥100,000 hours
Viewing distance
≥6m
IP(front/back)
IP21/IP43
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
