North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness:
6, 000nits
Panel Weight:
7.5kg
Panel Width:
600mm
Panel Height:
600mm
Panel Depth:
120mm
Resolution Per Panel:
32X32
Panel Material:
Epoxy Paint Coated Aluminum Strip
Mounting System:
Hanging/Fix Installation
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Certification:
ETL
Display Function:
Video Display
Application:
Advertising
Scanning Mode:
1/8 Scan
Pixel Pitch:
18.75mm
Pixel Density:
2, 844DOT/M&Sup2
Average Power Consumption:
80W/M&Sup2
Product Description

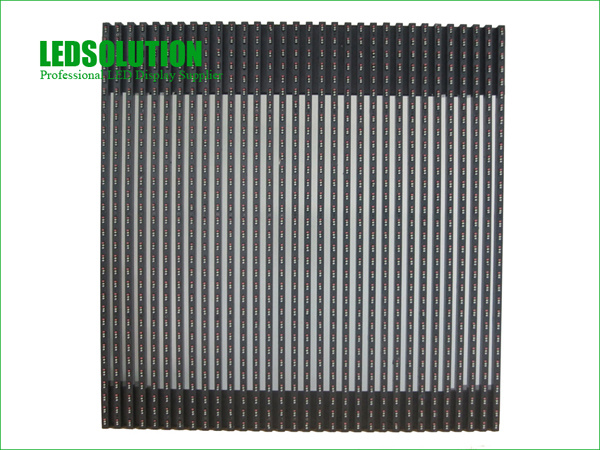

P18.75 Flexible Curtain Outdoor LED Display, Curtain LED display; RM, Cortina de tela LED.
Features of the Curtain LED Display: *Weatherproof to IP65 standards *High resolution images *Easily configured for various size and aspect ratios *Wide viewing angle *Compatible with inputs: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA Main Application: Stage and outdoor fixed installation
Parameter
Unit
Value
Pitch
mm
18.75
Brightness
nits
6, 000
Color temperature
deg. K
6, 500
Viewing angle - Horizontal (50% brightness)
deg.
130(-65~ +65)
Viewing angle - Vertical (50% brightness)
deg.
60(-30~ +30)
Panel weight
kg
7.5
Panel width
mm
600
Panel height
mm
600
Panel depth
mm
120
Panel area
sq. m.
0.36
Panel material
Epoxy paint coated Aluminum Strip
Transparent Rate
36%
Operating temperature range
deg. C
-30 to +60
Humidity operating
RH
10% ~ 90%
International Protection
IP
IP65
Pixel type and configuration
R/G/B
1R1G1B
Resolution per panel
32x32
Dot per panel
1, 024
Dot per sq. meter
2, 844
LED per sq. meter
8, 532
Recommended minimum viewing distance
m
14
Drive Mode
Constant current drive Static
Colors
1, 073.7 million
Grey scale (linear)
Levels
1, 024 levels per color
Brightness control
Levels
100
Contrast ratio
1, 000: 1
Processing depth
bit
16
Video frame rate
Hertz
60
Display refresh rate
Hertz
180~3, 000
Input voltage (nominal)
VAC
110 to 240
Input power frequency
Hertz
50 to 60
Input power (max)
Watts
200
Input power (typical)
Watts
80
Lifetime (50% brightness)
Hours
≥ 100, 000
Red wavelength (dominant)
nm
620~625
Green wavelength (dominant)
nm
525~530
Blue wavelength (dominant)
nm
470~475
Multimedia data format
DVI, MPG, AVI, WMV, RM etc.
Mounting System
Hanging/Fix Installation
