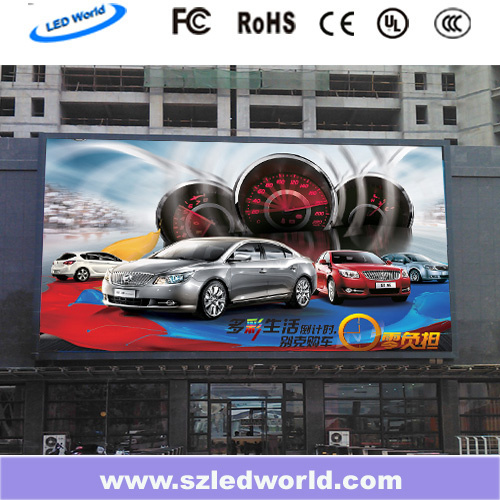

P16 SMD3in1 Fixed Outdoor LED Display

Name: P16 SMD3in1 Fixed Outdoor LED Display
Brand: yourledlight.com
SKU: 771569065
Availability: InStock
Rating: 4.5 (60 reviews)

Price:	US $ 450-700/Square Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Square Meter
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Shenzhen LED World Co., Limited

Showroom Product Company Profile

Prod Model:	LW-FO 16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IP Grade:	IP65
Outdoor:	1r1g1b
At Any Dimention:	Permanent
Install:	Fixed
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Pitch:	16mm
Pixel Configuration:	1R, 1G, 1B
Display Function:	Video Display
Average Power Consumption:	300W / m²
Scanning Mode:	Static Scan
Display Type:	LED Video Display
Application:	Advertising
Certification:	ETL
Pixel Density:	3906 DOT/M2

Product Description

Features:

1, Metal plate material cabinet at your will .

2, Fast delivery time, about 10 days.

3, Competitve prices witg good performance .

4, Long life-span.

5, More options according your site(The models as before ).

Items	LW-FO6-S	LW-P8-FO	LW-P8-FO	LW-P10-FO	LW-P16-FO
Pixel Configuration	1R1G1B SMD3535	1R1G1B SMD3535	1R1G1B DIP246	1R1G1B DIP345	1R1G1B DIP345
Pixel Pitch	6mm	8mm	8mm	10mm	16mm
Pixel Density	27,777	15,625	15,625	10,000	3,906
Module Size (mm)	192x96 or 192x192	256x128	256x128	160x160	256x128/256x256
Pixels/Module	32x16 or 32x32	32x16	32x16	16x16	16x8/16
Cabinet Size (mm)(WxHxD)	960x960x190	1024x1024 x190	1024x1024 x190	960x960x190	1024x1024 x190
Pixels/Cabinet	160x160	128x128	128x128	96x96	64x64
Cabinet Weight	42KG	48KG	58KG	51KG	58KG
Brightness	>6000cd/	>5000cd/	>7000cd/	>7000cd/	>7000cd/
Viewing Distance	>6m	>8m	>8m	>10m	>16m
Power Consumption (W/)	Max: 1300 Ave: 260	Max: 1000 Ave: 260	Max: 1000 Ave: 300	Max: 1000 Ave: 300	Max: 1000 Ave: 200
Driver Mode	1/4 scan	1/4 scan	1/4 scan	1/4 scan	Static Latching
Viewing Angle	H: 120°; V: 120°		H: 110°; V: 60°
Cabinet Material	Cold Rolled Steel or aluminum
Refresh Rate	300-3000HZ adjustable
LED Life	100,000 hours
Supply Voltage	AC220V/50HZ; AC110V/60HZ
Operating Temperature	-20ºC ~ +50ºC
Operating Humidity	10% - 90%
Gray Scale	Red, Green and Blue each 16K
Display Color	4096 Billion
IP Rating	Front IP65
Display Capability	Text, Graph and Video
