North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cabinet Size:
1024mm X 768mm
Cabinet Weight:
50 Kg/PC
Warranty Time:
2 Years
View Distance:
20m -150m
Brightness:
More Than 6500CD
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Certification:
CCC
Pixel Pitch:
16mm
Display Function:
Video Display
Application:
Stage Performance
Scanning Mode:
Static Scan
Average Power Consumption:
220W / m²
Pixel Density:
3906
Product Description
Noveled Group Ltd is the leading OEM manufactures of LED Display Screens in China, which is professionally engaged in the production of Indoor, Outdoor and Semi-Outdoor LED Display screens in Single, Bi-color and Multi color for different markets such as Malls and Plazas, Traffic guiding signs, Entertainment and Stage, Shop sign boards and huge Media Bill Boards, Security Monitors etc. We are an ISO 9001: 2000 company, CE certified, RoHS certified, export licence holders.

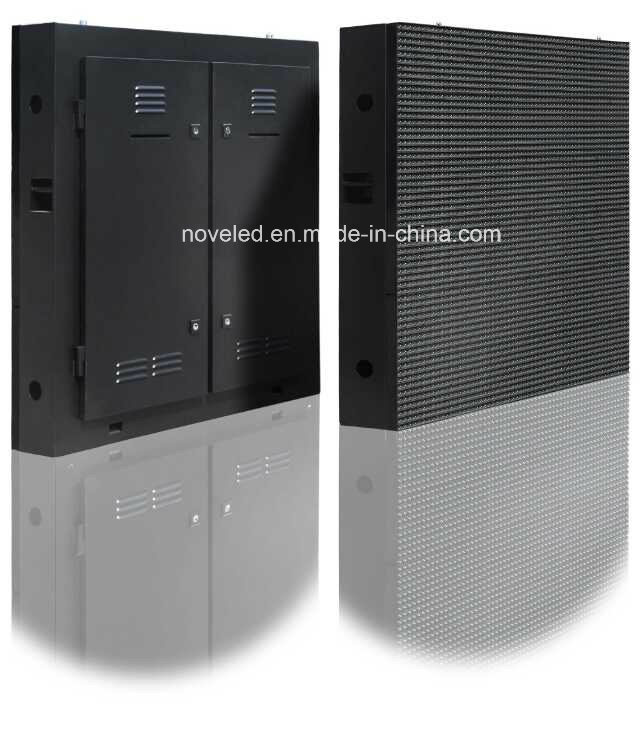

P16 outdoor full color led display cabinet

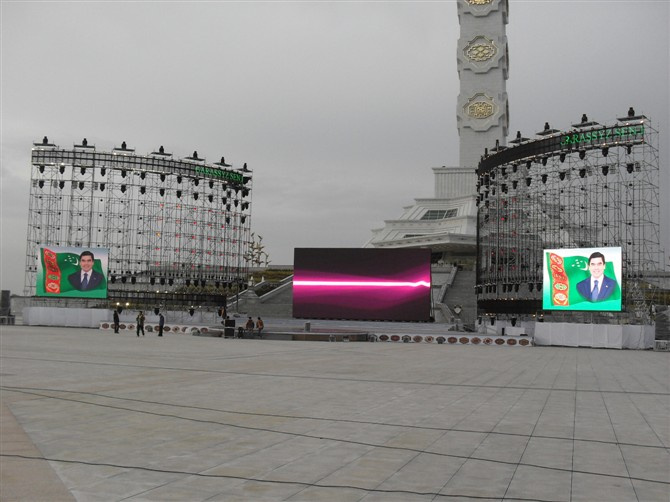

Model: pH16 outdoor full color LED display project view
P16 outdoor full color LED Display specification With CE, RoHS, FCC Certification, ISO 9002
Display and control feature
Structure feature
Specification
Parameter
Specification
Parameter
Pixel Pitch
16 mm
Module size
256 mm*128 mm
Pixel composing
2R1G1B
Display resolution/module
16 dots*8 dots
Wavelength (R)
625± 5
Standard cabinet size
1024 mm*768 mm
Wavelength (G)
522± 3
Weight per sqm
65 Kg/sqm
Wavelength (B)
567± 3
Protection classification
IP65
Wave Angle (H)
110° (H)/ 60°
Install mode
Wallmount, hung and stand structure
LED package
DIP546
Cabinet Material
Iron/Aluminum
Density per sqm
3906 pixel
Working power
Display color
256*256*256
Specification
Parameter
Whiteness brightness
≥ 7000
Working voltage
AC 220v/380v± 10% 47~64Hz
Brightness level
128 grade
Max power/sqm
1100W/sqm
Changing frame frequency
60 Hz
Average power/sqm
700W/sqm
Refresh
400 Hz
Short circuit protection
Yes
Driving method
Constant Static
Control mode
synchronous
Working environment
Display port
DVI
Specification
Parameter
Display mode
1024*768 /1024*1024
Environment
Outdoor
Out of control
1/10, 000 ( scattered)
Working temperature
--20~50C
lifetime
100, 000 hours
Working Humidity
10~90%
