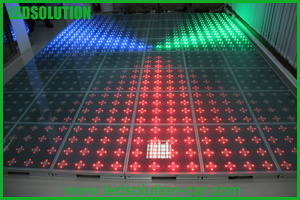

General: LEDSolution's Floor LED display perfectly shows amazing stage video for disco hall, night club, concerts, T-stage and event stage floor etc. On the upside of the floor LED display is the PVC, which has good anti-friction, thermostabilit and light transmittance; In the middle is the strip LED display, and the holder is made of aluminium alloy. So, it's very strong in structure, with the load bearing of 1, 500kg/sqm.
Features: * Fully Customizable * Synchronizes to Music * Displays major graphic formats * Displays major video formats * Video input for live cameras
Parameter
Unit
Value
Pitch
mm
16
Brightness
nits
1,800
Color temperature
deg. K
6,500
Viewing angle - Horizontal (50% brightness)
deg.
140(-70~ +70)
Viewing angle - Vertical (50% brightness)
deg.
100(-50~ +50)
Panel weight
kg
28
Panel width
mm
768
Panel height
mm
768
Panel depth
mm
90
Panel area
sq. m.
0.59
Panel material
Epoxy paint coated Steel
Load per square meter
Ton/m2
1.5
Operating temperature range
deg. C
-30 to +60
Humidity operating
RH
10% ~ 90%
International Protection
IP
IP23
Pixel type and configuration
R/G/B
5050 SMD
Resolution per panel
48x48
Dot per panel
2,304
Dot per sq. meter
3,906
LED per sq. meter
3,906
Recommended minimum viewing distance
m
12
Colors
281 Trillion
Grey scale (linear)
Levels
65,536 levels per color
Brightness control
Levels
100
Contrast ratio
1,000:1
Processing depth
bit
16
Video frame rate
Hertz
60
Display refresh rate
Hertz
180~3,000
Input voltage (nominal)
VAC
110 to 240
Input power frequency
Hertz
50 to 60
Input power (max)
Watts
200
Input power (typical)
Watts
80
Lifetime (50% brightness)
Hours
≥100,000
Red wavelength (dominant)
nm
625
Green wavelength (dominant)
nm
525
Blue wavelength (dominant)
nm
470
Multimedia data format
DVI,MPG,AVI,WMV,RM etc.
Mounting System
Fixed on ground
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.
With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.
For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality
And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
