North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness:
2,000nits
Viewing Angle:
140/140
Panel Size:
500X500mm
Resolution Per Panel:
48X48
Panel Material:
Die-Cast Aluminum
Service Access:
Back Service
Tube Chip Color:
Full Color
Display Function:
Video Display
Certification:
RoHS
Pixel Pitch:
10.41
Pixel Configuration:
3535 SMD
Pixel Density:
9228
IP Rating:
IP65/54
Product Description

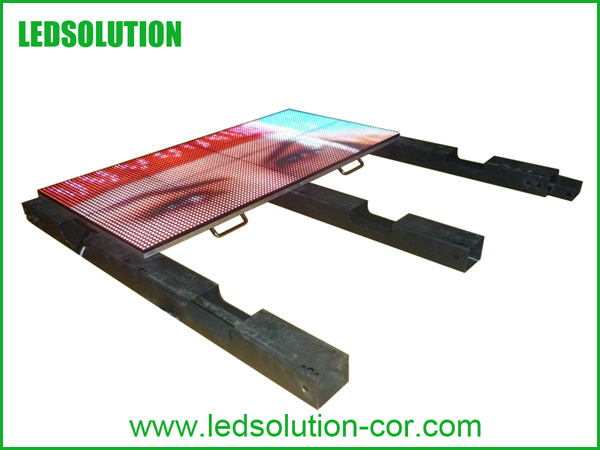

LED Floor display is very popular for stage and events. It's normally used in disco hall, night club, concerts, T-stage and event stage floor, etc, as dancing floor or decorations.
Features:
*Abrasion-proof display surface, protecting the LED display; *Strong load bearing: 1500kg/sqm; *Excellent flatness and uniformity; *Convenient assembly; *Incredibly beautiful and changing display effect, adding to the atmosphere.
Parameter
Unit
Value
Pitch
mm
10.41
Brightness
nits
2,000
Color temperature
deg. K
6,500
Viewing angle – Horizontal (50% brightness)
deg.
140(-70~ +70)
Viewing angle – Vertical (50% brightness)
deg.
100(-50~ +50)
Panel weight
kg
14
Panel width
mm
500
Panel height
mm
500
Panel depth
mm
68
Panel area
sq. m.
0.25
Panel material
Die-cast Aluminum
Service access
Back service
Load per square meter
Ton/m2
1.5
Operating temperature range
deg. C
-30 to +60
Humidity operating
RH
10% ~ 90%
International Protection
IP
IP65/54
Pixel type and configuration
R/G/B
3535 SMD
Driving IC
MBI5024
Resolution per panel
48x48
Dot per panel
2,304
Dot per sq. meter
9,228
LED per sq. meter
9,228
Recommended minimum viewing distance
m
8
Colors
281 Trillion
Grey scale (linear)
Levels
65,536 levels per color
Brightness control
Levels
100
Contrast ratio
1,000:1
Processing depth
bit
16
Video frame rate
Hertz
60
Display refresh rate
Hertz
180~3,000
Input voltage (nominal)
VAC
110 to 240
Input power frequency
Hertz
50 to 60
Input power (max)
Watts
200
Input power (typical)
Watts
80
Lifetime (50% brightness)
Hours
≥100,000
Red wavelength (dominant)
nm
625
Green wavelength (dominant)
nm
525
Blue wavelength (dominant)
nm
470
Multimedia data format
DVI,MPG,AVI,WMV,RM etc.
Mounting system
Fixed on ground
Compliant standard
CCC\CE
