Brightness:
1,250nits
Viewing Angle:
140/140
Panel Size:
768X2880X9mm
Panel Material:
Plastic
Ingress Protection (Front/Rear):
IP65
Mounting System:
Hanging
Tube Chip Color:
Full Color
IP Rating:
IP65
Display Function:
Video Display
Pixel Density:
6944 dot / m²
Scanning Mode:
1/2 Scan
Certification:
ETL
Pixel Pitch:
12 Mm
Pixel Configuration:
3535SMD
Product Description

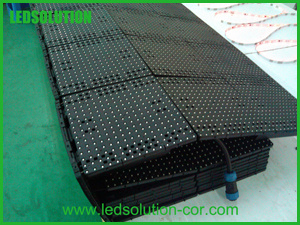

P12 Waterproof Foldable Flexible LED Display
Features: 1. Light weight: Less than 9kg per sqm. 2. Easy remove: More than 20sqm can be packing by only one flight case. 3. Easy installation: Just hang panel like you hang curtain. You can install 100sqm within 2 hours, and remove it within 2 hours. 4. High protection grade: IP 65, can be use for both indoor and outdoor. 5. Application flexible: Assemble to different stage background modeling as you can image, give fresh, amazing feelings to your audience.
Parameter
Unit
Value
Pitch
mm
12
Brightness
nits
1,250
Color temperature
deg. K
6,500
Viewing angle – Horizontal (50% brightness)
deg.
140(-70 ~ +70)
Viewing angle – Vertical (50% brightness)
deg.
140(-70 ~ +70)
Panel weight
kg
20
Panel width
mm
768
Panel height
mm
2,880
Panel depth
mm
9
Panel area
sq. m.
2.21
Operating temperature range
deg. C
-30 to +60
Panel Material
Plastic
Ingress protection (front/rear)
IP65
Humidity operating
RH
10% ~ 90%
Pixel type and configuration
R/G/B
3535 SMD
Resolution per panel
64x240
Dot per panel
3,840
Dot per sq. meter
6,944
LED per sq. meter
6,944
Recommended minimum viewing distance
m
9
Recommended best viewing distance
m
12~36
Colors
281 trillion
Grey scale (linear)
Levels
65,536 levels per color
Brightness control
Levels
100
Contrast ratio
1,000:1
Processing depth
bit
16
Video frame rate
Hertz
60
Display refresh rate
Hertz
180~3,000
Input voltage (nominal)
VAC
110 to 240
Input power frequency
Hertz
50 to 60
Input power (max)
Watts/panel
400
Input power (typical)
Watts/panel
160
Lifetime (50% brightness)
Hours
≥100,000
Red wavelength (dominant)
nm
620~625
Green wavelength (dominant)
nm
525~530
Blue wavelength (dominant)
nm
470~475
Multimedia data format
DVI,MPG,AVI,WMV,RM etc.
Data interconnection
UTP Cat 5/Optical Fiber
Mounting system
Hanging
