Honeycomb briquette burning effect and the whole structure cooling technology;
Double-coupling IP68 protection for module, highest waterproof level;
Ergonomic light distribution to achieve even illuminating effect;
Free serialization and various power solutions.
Special Technical Advantages of LEDSOLUTION Modular Lights
Honeycomb Briquette effect.
Heat dissipation of the whole structure.
Easy-tool maintenance.
Double-coupling IP68 protection.
High-efficacy LED Light source.
Free Serialization.
Specification
Model
LS-RLE4B-1
LS-RLE4B-2
Power(W)
40
50
60
80
100
120
Input Voltage(V)
AC100-277
Driving Current(mA)
700
860
1050
700
860
1050
Luminous Efficacy(lm/W)
100±5
95±5
90±5
100±5
95±5
90±5
Flux(lm)
4000±200
4750±250
5400±300
8000±400
9500±500
10800±600
Power Factor
0.95
Power Efficiency
89%
91%
Beam Angel
Batwing
LED Brand
Philips Luminleds Luxeon TX
CCT(K)
3000,4000,5000,5700
CRI
>70
Working Environment
-40ºC~+50ºC,10%~90%RH
Storage Temperature
-40ºC~+50ºC
Lumen Maintence(h)
>50000
Housing Material
Aluminum Alloy
Pole Diameter
57~63
Product Size(mm)
617*223*75
Packing Size(mm)
815*285*105
N.W(kg)
4.8
6.2
G.W(kg)
5.8
7.2
Model
Qty of Modules
Watt
CCT
Colors
Beam Angel
Power Cord
LS-RLE4B
1 2
40/50/60 80/100/120
30=3000K 40=4000K 50=5000K 57=5700K
GY=Gray BL=Blue
1=Batwing
A=America Standard E=European Standard U=Australia Standard O=Other requirements

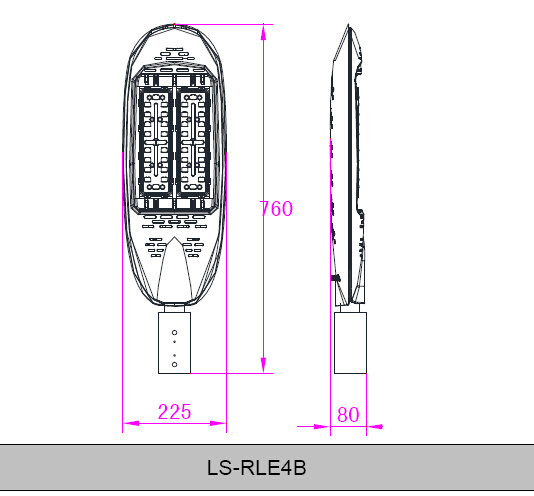

Dimensions

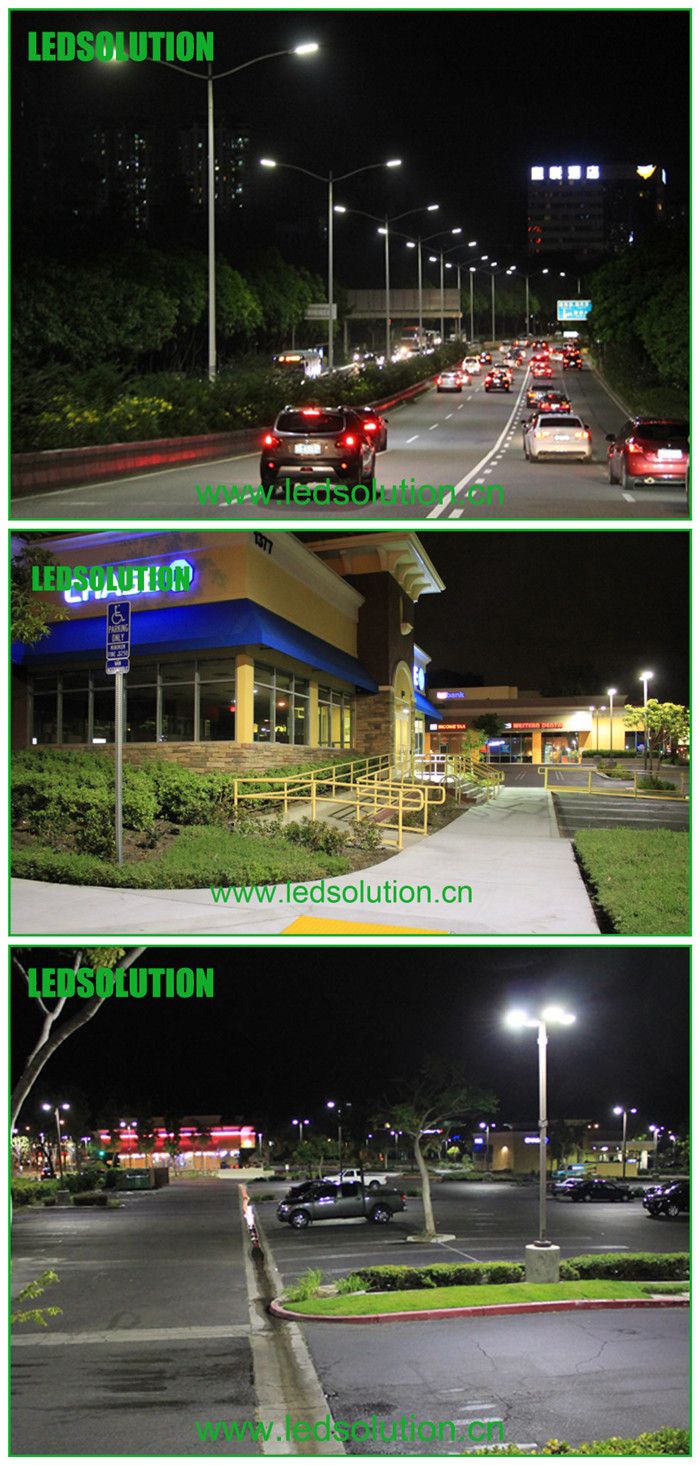

Applications
Street lighting, park lighting, roadway lighting, path lighting.
