Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Pixel Pitch:
20mm
Display Function:
Video Display
Scanning Mode:
Static Scan
Certification:
CE
Pixel Density:
2305dots/Sqm
Average Power Consumption:
140W/Sqm
Product Description

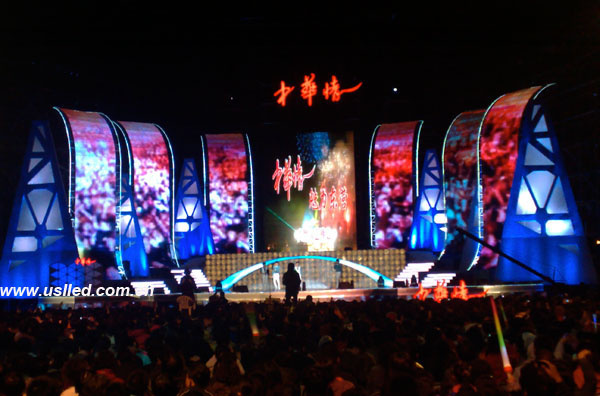

Flexible LED display P20 mm, curtain LED display outdoor
1. High quality and big size LED chip with high brightness and good color uniformity
2. New and Unique PCB design with best heat dissipation, good stable capability
3. High contrast ratio 4000: 1, clear and stable pictures without distortion and disturbance
4. Light weight, ultra slim panel, buckle connecting design, fast to assemble and disassemble
5. Modular design, can realize joint any size LED display randomly
6. Each color processing 16bit, 281trillion colors vividly displaying
7. Waterproof IP65 protection, can be used both outdoor and indoor
8. With video processor together can support AV, S-Video, VGA, DVI, HDMI, SDI, DP
Service:
1. We provide LED display connection and installation instruction or graph for you
2. Welcome your engineer come and accept training in our workshop, training time is 3 work days
3. We can assign our engineer to your local installation site for display installation guidance, But you need to be responsible engineer tickets, local transportation together room and board cost.
USL Curtain LED Display P20mm
LED
SMD3535
Brightness
≥3000cd/m2
Pitch
P20mm
Module size
640x160mm
Module pixel
32x8pixels
Panel size
1280x320x38mm
Panel resolution
64x16pixels
Brightness adjustment
256 manual; 16level automatically
Frame
60 frame/S
Refresh rate
>1800HZ(no flickering)
Drive mode
static ,constant current
Gray scale
65536 level for each color
Watt (max/aver)
600w/M2 /200w/M2
Panel weight
5kg/pcs
Working voltage
110v/220v + 15%, 50/60HZ
Viewing angle
Horizontal:140°, vertical:120°
Working temperature
-20degree---+50degree
Storage temperature
-40degree---+60degree
Working humidity
10%-90%
IP rate
IP65
Service Life
≥100.000H
Control mode
Synchronous by internet
