Brightness:
4, 500nits
Panel Weight:
8kg
Panel Width:
800mm
Panel Height:
800mm
Panel Depth:
120mm
Panel Material:
Epoxy Paint Coated Aluminum Strip
Mounting System:
Hanging
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP65
Certification:
ETL
Pixel Pitch:
25mm
Display Function:
Video Display
Application:
Advertising
Scanning Mode:
1/4 Scan
Pixel Density:
1600 dot / m²
Average Power Consumption:
180W / m²
Pixel Configuration:
3in1 SMD
Product Description

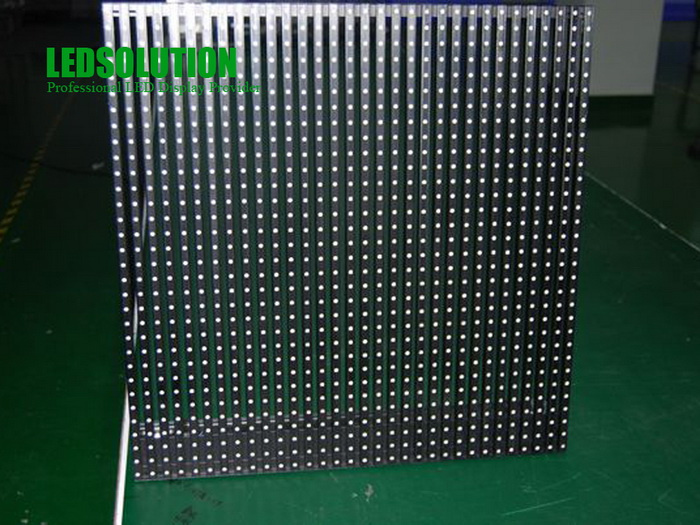

LED Curtain Display Screen, LED Curtains, curtain LED display, LED stage background, stage LED display, LED screen, LED signs:
Features of the Curtain LED Display:
*Weatherproof to IP65 standards *High resolution images *Easily configured for various size and aspect ratios *Wide viewing angle *Compatible with inputs: S-Video, Composite, YUV, RBG, SDI, *long lifetime and good after-sales service HKSDI, Data SVI up to SXGA Main Application: Stage and outdoor fixed installation
LEDSolution LED Display:
Parameter
Unit
Value
Pitch
mm
25
Brightness
nits
4, 500
Color temperature
deg. K
6, 500
Viewing angle Horizontal (50% brightness)
deg.
120(-60~ +60)
Viewing angle Vertical (50% brightness)
deg.
120(-60~ +60)
Panel weight
kg
8.0
Panel width
mm
800
Panel height
mm
800
Panel depth
mm
120
Panel area
sq. m.
0.64
Panel material
Epoxy paint coated Aluminum Strip
Operating temperature range
deg. C
-30 to +60
Humidity operating
RH
10% ~ 90%
International Protection
IP
IP65
Pixel type and configuration
R/G/B
3in1 SMD
Resolution per panel
32x32
Dot per panel
1, 024
Dot per sq. meter
1, 600
LED per sq. meter
1, 600
Recommended minimum viewing distance
m
19
Drive Mode
Constant current drive Static
Colors
16.7 millions
Grey scale (linear)
Levels
1, 024 levels per color
Brightness control
Levels
100
Contrast ratio
1, 000: 1
Processing depth
bit
16
Video frame rate
Hertz
60
Display refresh rate
Hertz
180~3, 000
Input voltage (nominal)
VAC
110 to 240
Input power frequency
Hertz
50 to 60
Input power (max)
Watts
230
Input power (typical)
Watts
172
Lifetime (50% brightness)
Hours
≥ 100, 000
Red wavelength (dominant)
nm
625
Green wavelength (dominant)
nm
522
Blue wavelength (dominant)
nm
467
Multimedia data format
DVI, MPG, AVI, WMV, RM etc.
Mounting System
Hanging
