Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Scanning Mode:
1/4 Scan
Certification:
CE
Average Power Consumption:
300W / m²
Pixel Pitch:
6mm
Pixel Density:
27777dots/Sqm
Product Description

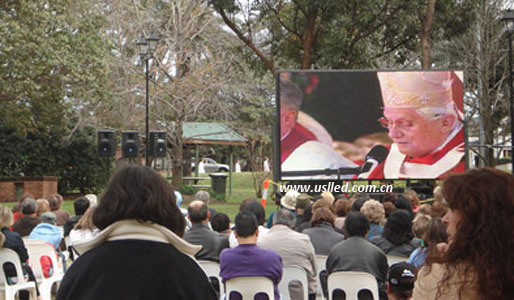

Outdoor High Definition LED Display, Full Color LED Display, Outdoor high definition LED Display P6SMD, 192X192mm module, 576X576mm panel size, 14kg/PCS
Earliest and most reliable LED Display &Modules wholesale factory more than 15 years
1. Wider viewing angle, 160degree to see still comfortable and clearly, suitable for stage shows
2. High brightness can be seen clearly outdoor under shiny day and brightness adjustable
3. Slim light panelwith fanless design, easy and fast to install, suitable rent usage
4. Best heat dissipation with IP65 waterproof protection
5. High-definition outdoor TV with best white balance and color uniformity
6. Support DOT by DOT correction function, high-definition display
7. With video processor together can support AV, S-Video, VGA, DVI, HDMI, SDI, DP
8. Update PCB desgin match ideal IC, the whole display energy saving30%
Service:
1. We provide LED display connection and installation instruction or graph for you
2. Welcome your engineer come and accept training in our workshop, training time is 3 work days
3. We can assign our engineer to your local installation site for display installation guidance, But you need to be responsible engineer tickets, local transportation together room and board cost.
Model
OSP6
Pixel pitch
6mm
Pixel composition
3SMD in one LED
Pixel Density per SQM
27777pixels/SQM
LED
SMD3535
Brightness
>7000CD/SQM
Scan Mode
1/4
Drive Mode
Constant Current
Panel Dimension
576x576(MM)
Panel Dimension
22.68x22.68 (Inch)
Panel Material
Aluminum
Weight
14KG
Module Dimension
192x192(MM)
Module Dimension
7.56x 7.56(Inch)
Pixel Matrix per Module
32x32pixels
Pixel Matrix per Panel
96x96pixels
Refresh Rate
≥3000HZ
Contrast ratio
3000:1
Gray Scale per Color
65536Level
Colors
281trillion
Viewing Angle(H/V)
160/160(deg)
IP Rate (Front /Rear)
IP65/IP54
Power Consumption ( Max /Avg)
690/230(W/Panel)
Input Voltage(AC)
110V/240V
Operating Temperature
-20deg~+60deg
Operating Humidity
10%_95%RH
Source Compatibility (with Video Processor)
AV, S-Video, VGA, DVI, HDMI, SDI, DP
Shenzhen USL Optoelectronics Technology Co., Ltd. established on DEC of 2009 year, focus on LED Display innovation, development and production, our core technicians average experience in LED display research and production field more than 15 years, our products focus on Outdoor Full color LED Display both rental and advertising, in order to meet outdoor LED display market higher definition, best viewing effect requirement and convenient our clients to operate LED display and save cost both transport and labor, we already push outdoor SMD P6, P8, P10 LED panel with wider viewing angle, in the future USL will continue our LED display target "stable quality of products, convenient clients, creative value for clients", promote LED display innovation and development.
Meanwhile, USL make quality as life, quality and specialty is our exist foundation, we strictly guide production according to ISO9001, ISO14000, TS16949 international management rules and quality management system, from martial choice to each procedure of production, we have special QC to check and test by instruments, also after long years cooperation and good reputation, USL with our suppliers together formed one mature and complete supply chain, fully practice complementary advantage, efficient operation, based on this virtuous beneficial cycle, further firmly stable our quality again. "Top quality with best price" is our production target, all our products have CE and RoHS certification.
USL Specialize in Outdoor LED Display, Indoor LED Display, Traffic LED Signs match with LED Display Modules, which convenient our experienced clients to assemble display their local place, save cost win time, assist maximum clients value, Customize is our most outstanding feature, all display modules is our own design, very good capability with stable lighter structure together, great convenience to clients, now our display already export to England, Romania, Indonesia, Malaysia, Thailand, Vietnam, Philippines, Sri Lanka, Jordan, Iran, Lebanon, Kuwait, Morocco, Israel, Finland, France, Grace, Portugal, Poland, Spain, USA, Canada, Venezuela, Brazil, Bolivia, Argentina, Nigeria, South America, Australia, Polynesia etc.
As one responsible and creative LED Display Enterprise, USL will solid step of the way in the future with all our clients friends!
