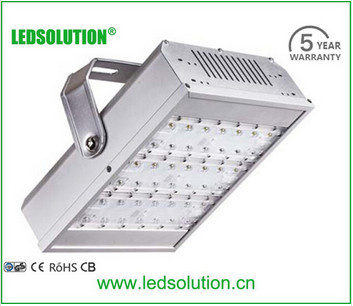

Outdoor Epistar Outdoor 160W LED Flood Light

Name: Outdoor Epistar Outdoor 160W LED Flood Light
Brand: yourledlight.com
SKU: 745522955
Availability: InStock
Rating: 4.9 (134 reviews)

Price:	US $ 228-256/Piece
Trade Terms:	FOB
Min Order:	2/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Shenzhen LEDSolution Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	LS-FL160P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Beam Angle:	120 Degree
Power Factor:	>0.9
Color Of Housing:	White/Black/Gray
Sample:	Acceptable
Warranty:	3 Years
Maximum Current:	AC 0.82A -120V, 0.41A
Lifetime:	50000hrs
Heat Radiator:	Anodized Aluminum
LED Chips:	Philips Lumileds
Input Voltage(V):	AC100-240V/277V
Color Temperature:	Pure White
Lamp Body Material:	Aluminum Alloy
Application:	Garden
IP Rating:	IP66
Certification:	VDE
Operating Voltage:	110-240V
LED Chips Brand:	Epistar
Power:	160W
Projection Distance:	According by The Chip
Input Voltage:	110-240V

Product Description

160W high power led flood light

160W High Power LED Flood Light

Specifications of 160W P-Series led flood light

Specifications

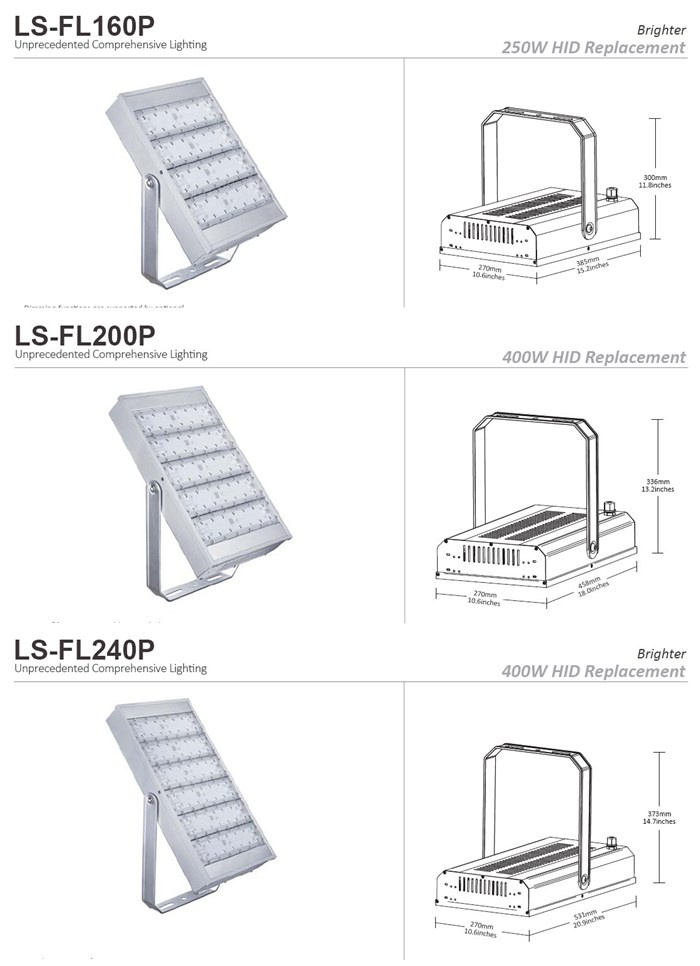

Model No.	LS-FL160P	LS-FL200P	LS-FL240P
Nominal Wattage	160W	200W	240W
Lumen Output	15200lm	19000lm	22800lm
Fixture Dimension	385x270x165mm 15.2x10.6x6.5inches	458x270x165mm 18.0x10.6x6.5inches	531 x270 x165 mm 20.9 x10.6 x6.5 inches
Fixture Weight	5.4 kg /11.9 lbs	6.3 kg /13.9 lbs	7.1 kg /15.7 lbs
Packing Dimension	505 x370 x200 mm 19.9 x14.6 x7.9 inches	580 x370 x200 mm 22.8 x14.6 x7.9 inches	650 x370 x200 mm 25.6 x14.6 x7.9 inches
Packing Weight	6.3 kg /13.9 lbs	7.2 kg /15.9 lbs	8.1 kg /17.9 lbs
Maximum Current	AC 1.65A -120V, 0.82A -240V, 0.71A -277V	AC 2.06A -120V, 1.03A -240V, 0.89A -277V	AC 2.47A -120V, 1.23A -240V, 1.07A -277V
Nominal Voltage	AC 100-240V /277V, 50/60Hz
Operation Temperature	-40 ºC to +50 ºC
Power Factor (PF)	> 0.9
Driver Efficiency	> 90%
Photometric Type	60º \| 90º \| 110º
Ratings	IP66, IK10
Lumen Maintenance	60,000 hours -L70(9K), @25 ºC (77 ºF)

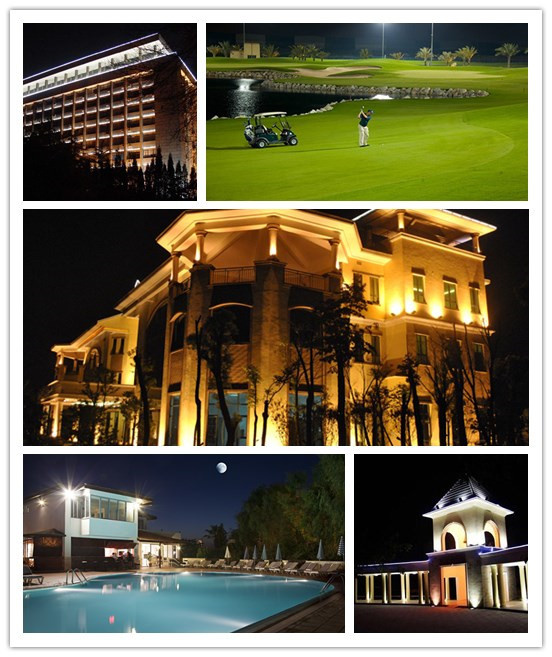

Applications of 160W P-Series led flood light

Bill Board
Area lighting
Architecture Lighting
Landscape Lighting

Buildings

160W High Power LED Flood Light

Product Benefits of 160W P-Series led flood light

PHILIPS LUMILEDS LED LUMINOUS SOURCE

The LEDSOLUTION P-Series LED Flood Lights are utilizing PHILIPS LUXEON T LED luminous source, providing excellent lumen output - up to 95 LPW, long-lasting stability and splendid sight.

Each LUXEON T owns eletrostatic protection component, maximally avoid the damage of electrostatic.

MEAN WELL LED DRIVER

Full Range of LEDSOLUTION P-Series LED Flood Lights are Utilizing MEANWELL HLG Series high-end driver, optimal operation stability, lifespan and performance.

LEDSOLUTION 3 GENERATION LED MODULE

Exquisite design with powerful thermal output, with more reliable waterproof performance.

XTREME LUMINAIRE DESIGN

Equipped with excep onal LEDSOLUTION 3 generation LED module, the P-Series LED Flood Lights give best luminous output, stability and extra long life. P-Series LED Flood Lights are intended to build the most cost-performance luminaires ever.

LEDSOLUTION completed the R&D independently, and reserve all related patents for P-Series LED Flood Lights.

Easy assemble/disassemble, neat wiring & connection, up to 95 LPW luminous efficiency, IP66 and IK10 Rated, 90%+ driver efficiency, over than 100,000 hours opera on life and 5 years warranty.

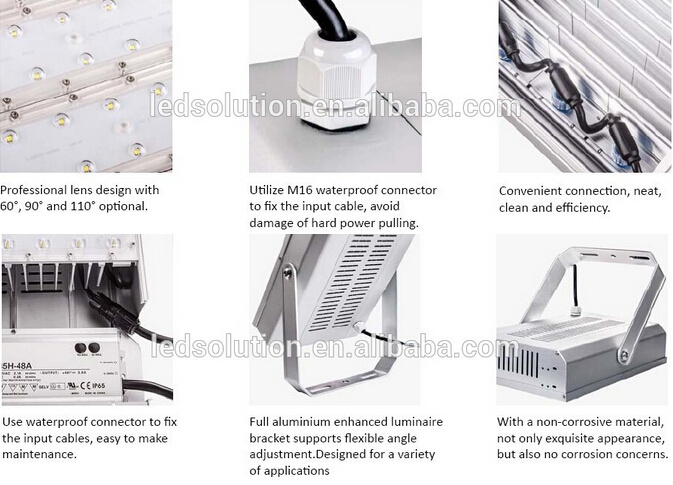

Detailed Features of 160W P-Series led flood light

Package

Packing Type
1unit(s) /ctn.
