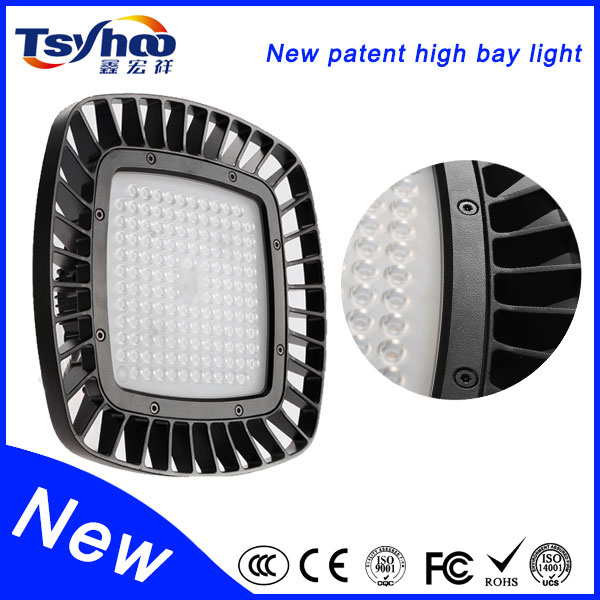

New Design Nichia LED Chip 120W Square LED High Bay Light
Price: |
US $ 140-145/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
new design Nichia LED chip 120w square led high bay light

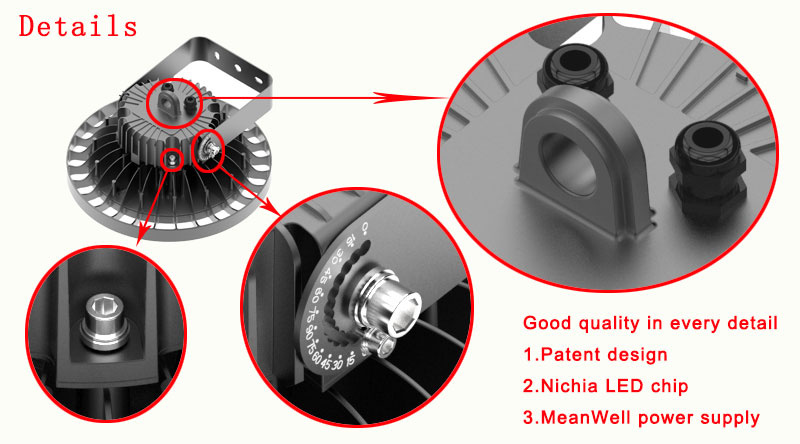

Specification:material:aluminium profile1.Patent design
2.Nichia LED chip
3.MeanWell power supply
4.Lumens:>120lm
5.CCT:2800-6500K
6.CRI:≥80%
7.LED power:100W-200W
8.Input:AC85-265V 50-60Hz PF>0.9
9.Lift time:>50,000Hours Widely used in workshop, warehouse, gas station, subway station, airport, etc
Name Item | RR-HBL100-X LXXXXXX AXXX DX CXX IXX DX | RR-HBL150- X LXXXXXX AXXX DX CXX IXX DX | RR-HBL200- X LXXXXXX AXXX DX CXX IXX DX |
|
Electrical | Power | 100W | 150W | 200W |
|
Input Voltage | 90-305VAC |
Input Current | 0.46A@220VAC | 0.62A@220VAC | 0.91A@220VAC |
|
PF | >0.95@220VAC |
DC Vout | 50-60VDC |
DC Vout | 1.6A | 2.45A | 3.3A |
|
Dimming (Optinal) | 3 in 1 dimming (PWM, 1-10V, Resistor) |
Photometric | CCT | Warm(4000K/Ra80),White(5700K/Ra70 and Ra80) |
Ra >80 | Typical Flux | 10000 Lm±10% | 18750 Lm±10% | 22000 Lm±10% |
|
Efficiency | 110 Lm/W±10% | 125 Lm/W±10% | 110 Lm/W±10% |
|
Ra >70 | Typical Flux | 11000 Lm±10% | 20250 Lm±10% | 24000 Lm±10% |
|
Efficiency | 120 Lm/W±10% | 135 Lm/W±10% | 120 Lm/W±10% |
|
LED Brand | Nichia 3030 |
LED Numbers (pcs) | 117 | 234 | 234 |
|
Beam Angle | PC lens with 60°and 90° |
LDC (Polar) | |
LDC (Linear) | |
Others | Operation Temp. | -40ºC ~ +45ºC |
Storage Temp. | -40ºC ~ +85ºC |
Life Circle | 45ºC 50000 Hours |
IP Class | IP65 |
Certification | CE,CB,CCC,RoHS |
Body Color | Black (MOQ is required for other color demand.) |
Product Size(mm) | Customized Driver | 300*300*156 | 360*360*167 | 360*360*167 |
|
Meanwell Driver | 300*300*167 | 360*360*193 | 360*360*193 |
|
Net Weight (kg) | 3.5 | 5.4 | 6.1 |
|
Packing Size(mm) | Customized Driver | 368*368*216 | 424*424*270 | 424*424*270 |
|
Meanwell Driver |
Gross Weight (kg) | 4.3 | 6.4 | 7.1 |
|

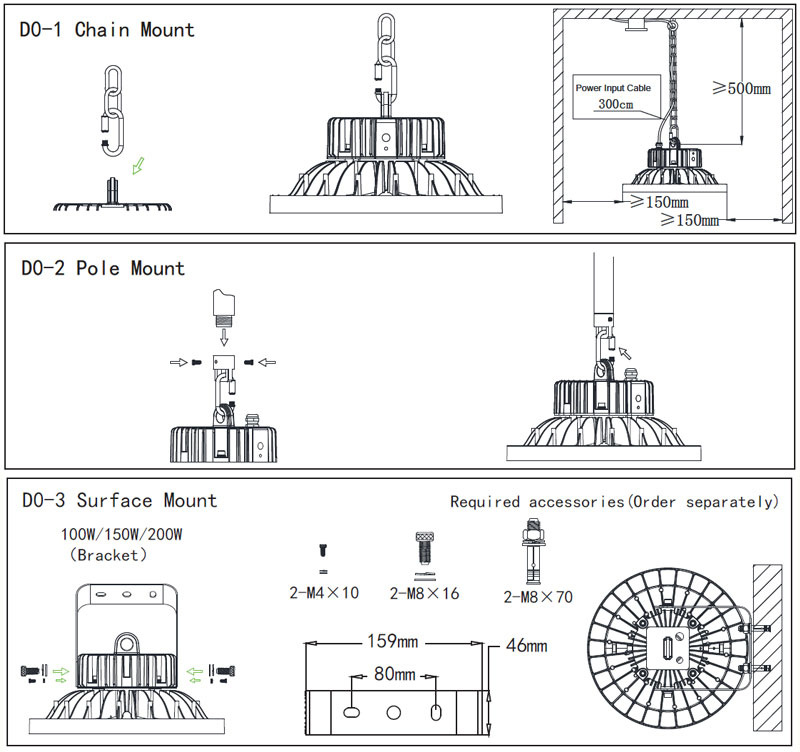

Mounting Type | Pole (default), Chain (optional), Bracket (optional) |
1. Xinhongxiang Optoelectronics (Shenzhen) Co., Ltd is LED products manufacturer, build in 1996, cover 20,000 m².
2. Fully automatic production lines, Advanced production equipment, Strong R&D Team.
3. Products have exported more than 100 countries, Such as Brazil,USA,Mexico,Canada,Germany etc.
4. Service before sale: technical support, design schemes; Training after order:software,operate,maintain.
5. Certificate: CE,FCC,UL,RoHS,CCC,ISO etc.
Our service goal
What you think is what we need to do!
What we promise is what we are fulfilling!
Warmly welcome your visiting!!!
Prod Model: |
XHX-HBL120 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
LED Chip Brand: |
Nichia |
Lead Time: |
3 Working Days |
Life(H): |
50000hrs |
Voltage: |
220V |
Power Factor: |
>0.9 |
Weight: |
2 PCS/CTN, 4.7kg/CTN |
Color: |
Warm White Nature White Cool White |
Size: |
425xh424mm |
LED Driver: |
APC-35-700 (Meanwell) |
Mounting Height: |
12-13m |
Usage: |
Household Appliances |
Emitting Color: |
White |
Beam Angle: |
60?? |
Power: |
120W |
LED Chips: |
Nichia |
IP Rating: |
IP66 |
Certification: |
CE |
Life: |
50000 |
