New Patent High Brightness 100W LED High Bay Light

Name: New Patent High Brightness 100W LED High Bay Light
Brand: yourledlight.com
SKU: 685191075
Availability: InStock
Rating: 4.3 (30 reviews)

Price:	US $ 165-168/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Xinhongxiang Optoelectronics (Shenzhen) Co., Ltd.

Showroom Product Company Profile

Prod Model:	XHX-M100W-A021
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Picking Size:	550550350mm
Service Environment:	Indoor
Light Angle:	30°60°90°120°
Dimmer Installation:	Hoisting
Illuminance:	300lux Under 10meter
Color Temperature:	Warm White
Lamp Body Material:	Aluminum
IP Rating:	IP33
Certification:	UL

Product Description

1. Replace 100W-1000W traditional fluorescent grille lamps.

2. High lumens and energy saving 60%-80%.
3. Isolated constant current driver with long lifespan.
4. Large beam angle 150°,lighting uniformity, no glare.
5. High quality light with a colour rendering index of 80.

What are the Specifications of our led high bay light?

1	XHX-M30W
	Type	XHX-M30W	LED brand	Epistar/Bridgelux
	Size	Φ500*380mm	Lumens	2400lm-2700lm
	Picking siz	580580425	CCT	2800-6500K
	LED	30W module	CRI	>75%
2	XHX-M50W
	Type	XHX-M50W	LED brand	Epistar/Bridgelux
	Size	Φ500*400mm	Lumens	4000lm-4500lm
	Picking siz	580580455	CCT	2800-6500K
	LED	50W module	CRI	>75%
3	XHX-M70W
	Type	XHX-M70W	LED brand	Epistar/Bridgelux
	Size	Φ450*420mm	Lumens	5600-6000lm
	Picking siz	560560465	CCT	2800-6500K
	LED	70W module	CRI	>75%
4	XHX-M80W
	Type	XHX-M80W	LED brand	Epistar/Bridgelux
	Size	Φ450*420mm	Lumens	6400-7000lm
	Picking siz	560560465	CCT	2800-6500K
	LED	80W module	CRI	>75%
5	XHX-M100W
	Type	XHX-M100W	LED brand	Epistar/Bridgelux
	Size	Φ500*660mm	Lumens	8000-9000lm
	Picking siz	580580720	CCT	2800-6500K
	LED	100W module	CRI	>75%
6	XHX-M120W
	Type	XHX-M120W	LED brand	Epistar/Bridgelux
	Size	Φ470*660mm	Lumens	9600-10800lm
	Picking siz	520520740	CCT	2800-6500K
	LED	120W module	CRI	>75%
7	XHX-M150W
	Type	XHX-M150W	LED brand	Epistar/Bridgelux
	Size	Φ470*660mm	Lumens	12000-13500lm
	Picking siz	520520740	CCT	2800-6500K
	LED	150W module	CRI	>75%
8	XHX-M200W
	Type	XHX-M200W	LED brand	Epistar/Bridgelux
	Size	Φ500*600mm	Lumens	16000-18000lm
	Picking siz	520520740	CCT	2800-6500K
	LED	200W module	CRI	>75%
9	XHX-M240W
	Type	XHX-M240W	LED brand	Epistar/Bridgelux
	Size	Φ500*600mm	Lumens	19200-21600lm
	Picking siz	520520740	CCT	2800-6500K
	LED	240W module	CRI	>75%

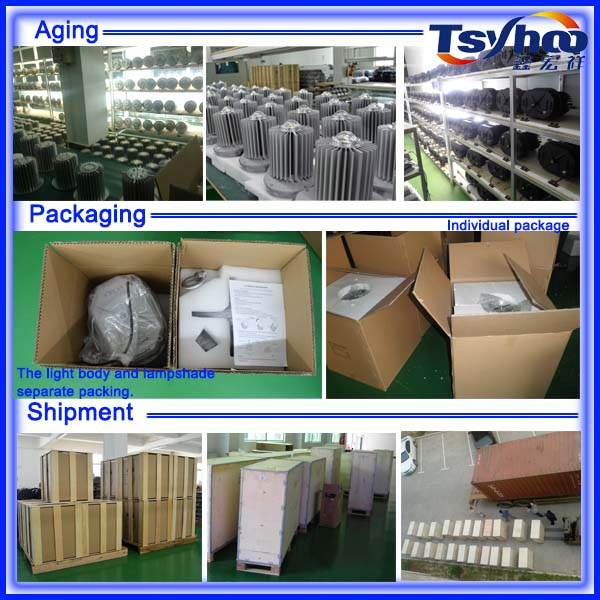

Shipping
1. FedEx / DHL / UPS / TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 1-3 days for samples; 5-25 days for batch goods.

Payment Terms
1. Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 5pcs.
3. Warranty : 3 years.
4. Package Informations: 1 pcs per box /The volume of the box is 75cmx75cmx75cm.

Xinhongxiang Optoelectronics (Shenzhen) Co., Ltd. As one of the most leading LED Products manufacturer in Shenzhen China, covering 10 000 square meters, register capital high up to 30 million CNY, is one high-tech enterprise focus on researching, producing, sale and service of LED products, . Nowadays Xinhongxiang owns fully automatic production lines, independent purifying workshop, researching center, most advanced production and inspection equipments, which guarantee the quality of the LED products. All the products have exported more than 100 countries, such as USA, Mexico, Canada, Brazil, Chile, Argentina, Panama, Colombia, Germany, France, Sweden, Italy, Spain, Russia, Poland, Turkey, Ukraine, South Africa, Egypt, Saudi Arabia, Singapore, Thailand, India etc

Developing History:

From 1996 to 2010, Xinhongxiang Optoelectronics (shenzhen) Co., Ltd, mainly involved in LED encapsulation and LED Display.

Since 2010, owe to enlarge the company scale and build up self-owned brand, Xinhongxiang focus on LED lighting, Shenzhen BESDLED Co., Ltd focus on LED display, business involved in indoor and outdoor LED Encapsulation, LED Display and LED Lighting Products.

LED Display:

Full Color Indoor and outdoor LED Display, single or dual basic color LED signs, LED Curtain, LED Dance Floor, Rental LED Display,

LED Lighting:

LED Bulb, LED Tube, LED Spotlight, LED DownLight, LED Panel Light, LED Street etc,

Comparing with many of LED Manufactures, xinhongxiang owns the following advantages to be your best choice for long term cooperation partner.

1, Fully automatic production lines

Xinhongxiang owns the entire LED manufacturing line, from original Semiconductor to LED chip, then assemble to LED display and LED lighting products.

2, Advanced production equipment

SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP LED, Spectrum and Color Separation Machine, LED oven, Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. Are equipped for our LED Product production.

3, Many Certification approved to clear up the trade barriers

CE, FCC, UL, RoHS, CCC, ISO9001: 2000 etc are obtained.

4, Strong R&D Team

Xinghongxiang absorb many talents, with more than 500 staffs, and including more than 100 engineers and technician, which paves the way for R&D for new products and excellent sales service

5): After-Service,

Principles: Response in time, solve problem ASAP and ensure the use.

Period: During warranty period, free of all maintenance charges;

After Warranty, only charge the material cost.

All the life time, Technology support is free.
