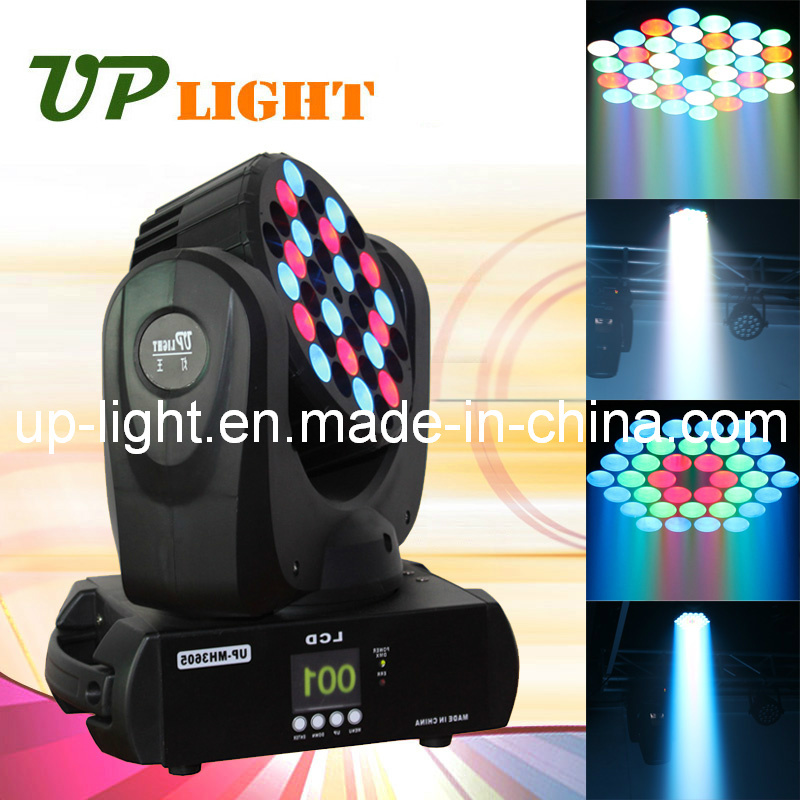

Mini 36*5W LED Moving Head Beam Light
Input voltage: AC100~240V, 50~60Hz;
Rated Power: 220W;
LED lamp: 5W LED with long life 80000-100000 hours, high luminous efficiency, no radiation and low power consumption etc;
LED Qty: 36pcs led chips (8R+10G+10B+8W);
LED Lamp powr supply: Adopt power factor correction PFC switching power supply, PF> 0.99, the efficiency of up to 90%, it's real green and environmental protection;
LED drive mode: Adopt static constant current drive mode with high precision and non-flicker (400HZ);
Control Mode: DMX512 signal 3-pins connection control, master-salve control or sound control with self-programming mode, self-running mode, extral control mode;
Channel: 12ch, 15ch two channel modes;
Color: Sophisticated 4 colours Red, Green, Blue, White color mixing, reaching high Colour rendering index;
Color effect: Uniform color beam with no colour shadows, rich saturated and more pastel lighting;
Lens: High optical transmission acrylic lens;
Beam angle: 5° (standard angle);
Dimmer: 0~100% linear adjustable dimmer without colour variation;
Strobe: Electronic strobe;
Head movement: Pan 540º , Tilt 270º With auto position correction, adjustable speed, 16Bit resolution;
Material: Aluminum alloy plus plastic;
Working terperature: -15~45° C;
Application: Lighting for TV studio, theater, opera house, auditorium, stage, T-stage, concerts, and vocal concert,
DJ effect, disco effect, club effect, party effect etc;
Package size: 295*295*370mm
Gross weight: 6kg
Channel | Function |
CH 1 | Dimming |
CH 2 | RED |
CH 3 | GREEN |
CH 4 | BLUE |
CH 5 | WHITE |
CH 6 | User-defined lighting |
CH 7 | Pan scanning |
CH 8 | Tilt scanning |
CH 9 | Pan scanning fine |
CH 10 | Tilt scanning fine |
CH 11 | Scanning speed |
CH 12 | Strobe |
CH 13 | RGBW marco function |
CH 14 | Auto speed adjustment |
CH 15 | ID code |
