Application Wireless Control LED Wall Washer Mainly used for Decorating and highlighting in Building Frame, Garden, etc which work in Independent mode and DMX mode;
Color Changing Mode (RGB, Single Color, Available/Master Mode) To Generate Various Color changing effects. Such AS 7 Colors Flashing/Fading/Chasing/Steady and 7 Color jumping Synchronously, Master/slave Mode color Changing effect. 256 Class gray degree dimmer, DMX Programmable w/ thousands of effects available if Many Lighting connected together
Control Mode 2 mode available Independent Mode-Choose the color effects that you need by pressing the buttons on the side cap of light DMX Mode-International Standard DMX512 Wireless Signal Control & 3XLR Signal Cable Control,
Tech Parameters Input VOLT: 100-256V AC Operating Voltage: 24V DC IP Rating: IP65 Operating Temperature: -20ºC~65ºC
Length(mm) available as follows Table
Model No
LED QTY
Color
Length(mm)
Power
Beam(°)
LWW-5-12P
12*1W
RGB/Single color
L440mm
12 Watts
15/30/45
LWW-5-12P
18*1W
RGB/Single color
L580mm
18 Watts
15/30/45
LWW-5-24P
24*1W
RGB/Single color
L840mm
24 Watts
15/30/45
LWW-5-36P
36*1W
RGB/Single color
L1120m
36 Watts
15/30/45
LWW-5-18*3W
18*3W
RGB/Single color
L1000mm
54 Watts
30/45/60
LWW-5-18*3W
18*3W
RGB (3IN1)
L1000mm
54 Watts
30/45/60
Best Selling Points,
1. Wireless System Color SYNC 2. DMX 512 Control with Wireless Signal Control & 3XLR Signal Cable Control 3. Independent Mode 4. Master/Slave Mode Color Control with RC (Remote Control)
How To Connect Wireless LED Wall washer and Control LED Wall washer with DMX, Master/slave. I am Happy to Answer any your Concern to THis Items. I am expecting you attention and Hight Level INVOLVEMENT To Talk more with us! Welcome Ewin Lighitng Technology , Shenzhen China!
THE issue of this Items to Our Customers&Concern to our business __________________________________________________________________________________
How to Set up Control Mode/How to control LED Wall washer?

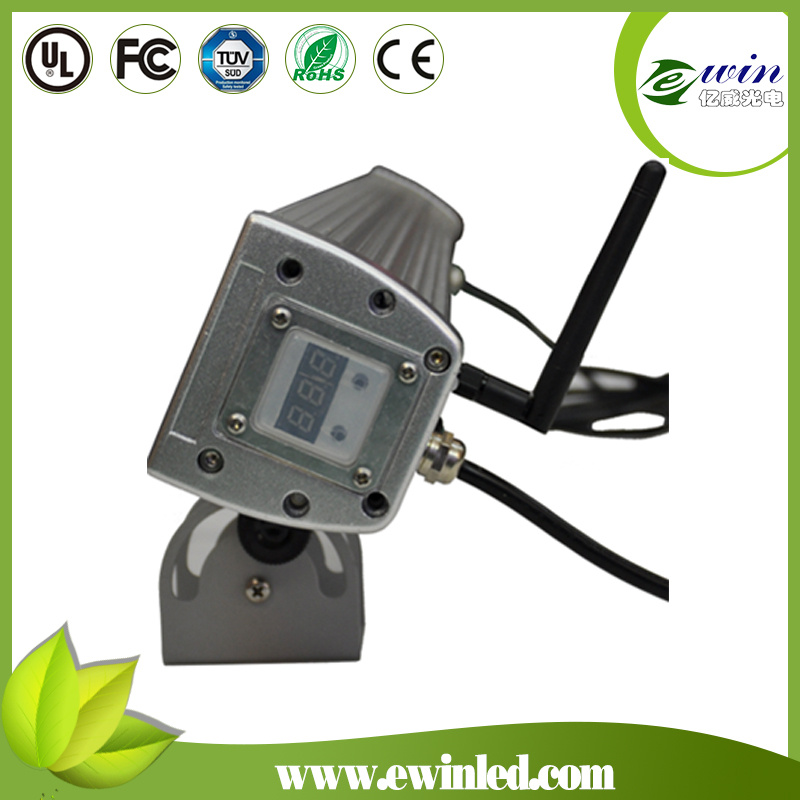

(DMX Address) (Built-IN DMX) 1. When The Digital LED is not flashing, Press "A", digital LED Begin to flash, Press "A"again, active Digital Leds Moves Backward, Then you can start to edit the Second Digital LED, Press "B", the Corresponding flash digital LED increase one bit (Values from 0 to 9), Then Press "C" (Independent Mode) 2. Pressing "A" 4 times (Note: the first 3 times is setup on DMX Address), Entering into Independent Mode. The Digital LEDS Shows PXY, Press "A", Active digital LEDs Moves Backward, then you can choose function via X and Parameter Via Y ; Press "B", The corresponding flash digital LED Increase one Bit (Values from 0 to 9), Than Press "C"
X Value and Y Value function settings
X value
Y value
1-single red
1~9 class gray degree
2- single green
1~9 class gray degree
3- single blue
1~9 class gray degree
4-single yellow
1~9 class gray degree
5-single purple
1~9 class gray degree
6- single cyan
1~9 class gray degree
7- single white
1~9 class gray degree
8-multicolor jumping
1~9 class speed
9-multicolor fading
1~9 class speed
A-multicolor flashing
1~9 class flash speed
(Auto Memorizing selected parameters) 3. When Pressing Button, Please wait for about 10 second, then you can Exit the mode of setting function. The Digital LED Stopping flashing and to Memorize the selected Parameters.
Master/Slave Mode: Wireless Color Sync : (The newest Tech. Wireless Color Sync)
Choosing any one light as the master as "001"The rest of them set as Slave (address can be any one except "001", Then Changing function of The master Light, then all lights will work SYNCHRONOUSLY)
What is the Wireless system? 1. 7 Group ID Code can be set, The user can Use the Independent 7 groups of wireless network and won't mutually interference. 2. 7 Group ID Code corresponding to the color of the RGB indicator light, only the same ID lamps can communicate with each other. 2. ID code can be chosen by the button. 3. The indicator light kept lighting: No DMX or wireless signal. 4. LED red indicator light flashing: Signal sent 5. LED Green indicator Light flashing: Signal received. 6. Communication distance: 300 meters. 7. Working frequency ban: 2.4G, IM, 126 frequency Band.
Waterproof Treatment IP65 This Signal output Connector XL-3R of the last fixture (Maximum 30 fixtures) of each series must be wrapped with waterproof tape (Auto-adhesive, please refer to instruction for Operation), Thence Sealed with a Φ20 Thermal shrinking sleeve and blow and shrink it with a hair drier for waterproof purpose.
Have Already Built-in DMX Control ,why need Master Pro-3CH Controller with Remote Controller??
Master Pro-3CH Controller consist of main Controller and Remote Controller. It provides a Convenient and Easy way for Customers. The Controller is only compatible and available for the LED light Fixture with R,G,B, and 3 DMX channels. For indoor use Via connection of DMX Cables. (3XLR Signal Cable connection)
Tech Parameters Size: L165*105*48mm Weight: 0.67kgs Working Temp: -20 ~ 55 ºC Input Volt: 120V AC 240V AC Power: 3W Protection: IP20
