| Prod Model: |
EW-LWW-18P-54W-1120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
Waterproof LED Driver |
| Color: |
RGBW |
| Size: |
L1120*W130*H82mm |
| Lamp Power(W): |
18*4W(4 in 1) |
| Working Temperature(Oc): |
-20°c~40°c(-4°f~104°f) |
| Usage: |
Independent,DMX,Master/Slave Mode |
| LED Chip: |
Edison |
| Luminous Efficiency: |
100-110ml/W |
| Base Material: |
Aluminum Alloy |
| Control Mode: |
Independent, DMX, Master/Slave Mode |
| IP Rating: |
IP65 |
| Diffuser: |
Tempered Glass |
| Lifespan: |
50000 hours |
| Warranty: |
2 Years |
| Certification: |
VDE |
| Electric Current Type: |
DC |
| Emitting Color: |
RGB Red Yellow Green White and So on |
| Power: |
72W |
| Beam Angle: |
15,25,30,45,60,90,30*60 Degree |
| Input Voltage: |
100-256V AC |
Product Description

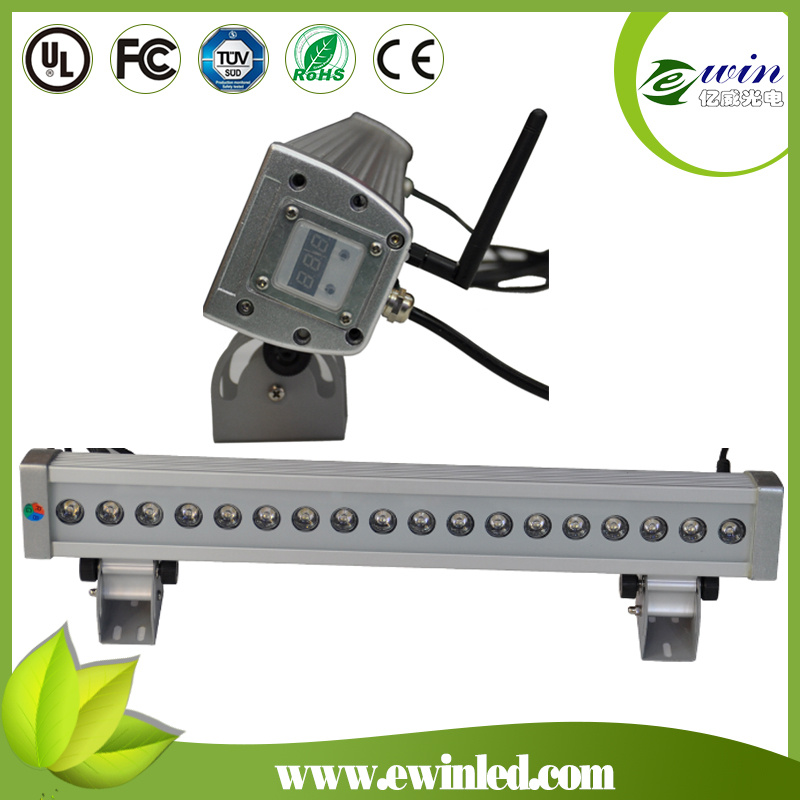

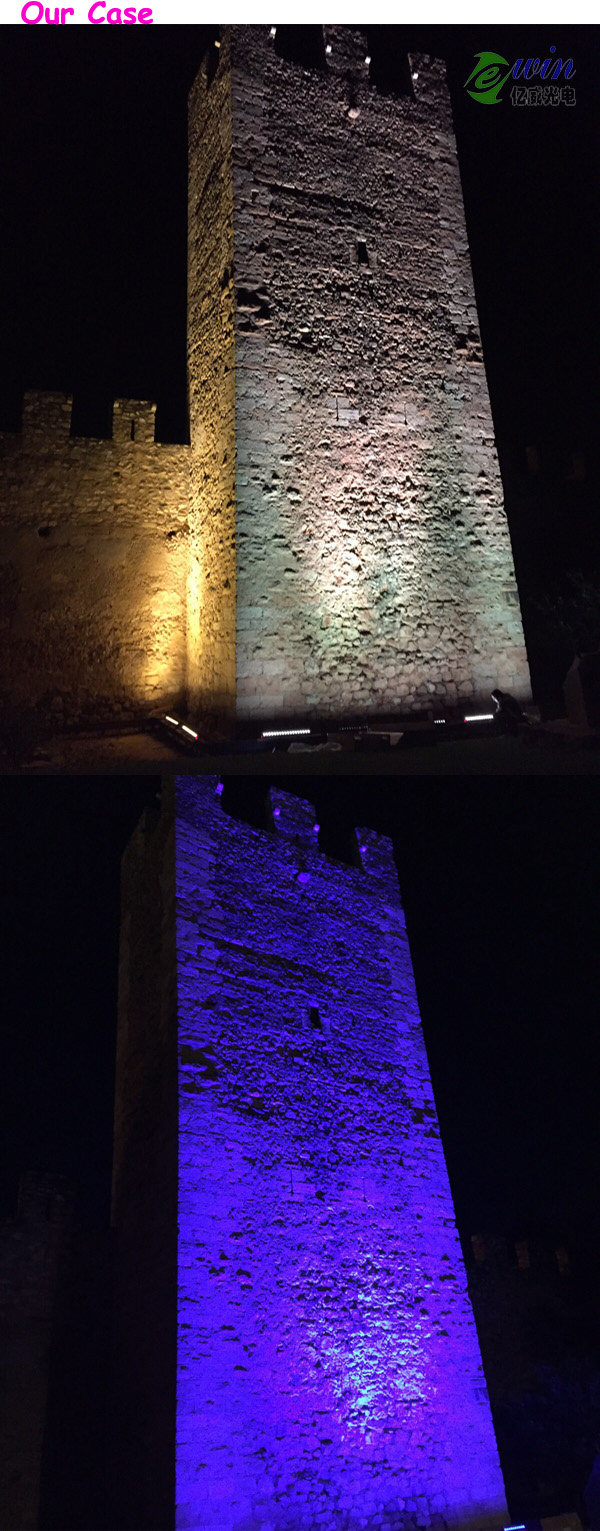

2016 New Wireless DMX512 72W 4 IN 1 1120mm LED Wall Washer Wireless Control Edison LED Wall Washer w/ Independent MODE and DMX Mode (Built-in Functions)Aluminum Alloy Ewin Lighting Tech address the Wireless Control LED Wall Washer. We are expecting you attention and High Level Involvement to Take a look! Aluminum Alloy (Black/White Housing color available) w/ Rotary Angle: 150 Degree. ApplicationWireless Control LED Wall Washer Mainly used for Decorating and highlighting in Building Frame, Garden, etc which work in Independent mode and DMX mode; 1. Individual, historical buildings exterior lighting
2. Outside building and indoor local lighting
3. Landscape lighting, advertising lighting.
4. Health, culture and other specialized facilities lighting
5. Bars, dance halls and other entertainment atmosphere lighting
Color Changing Mode (RGB, Single Color, Available/Master Mode)To Generate Various Color changing effects. Such AS 7 Colors Flashing/Fading/Chasing/Steady and 7 Color jumping Synchronously, Master/slave Mode color Changing effect. 256 Class gray degree dimmer, DMX Programmable w/ thousands of effects available if Many Lighting connected together Control Mode 2 mode availableIndependent Mode-Choose the color effects that you need by pressing the buttons on the side cap of light DMX Mode-International Standard DMX512 Wireless Signal Control & 3XLR Signal Cable Control, Tech ParametersInput VOLT: 100-256V ACOperating Voltage: 24V DCIP Rating: IP65Operating Temperature: -20ºC~65ºC Length(mm) available as follows Table | Model No | LED QTY | Color | Length(mm) | Power | Beam(°) |
| LWW-5-12P | 12*1W | RGB/Single color | L440mm | 12 Watts | 15/30/45 |
| LWW-5-12P | 18*1W | RGB/Single color | L580mm | 18 Watts | 15/30/45 |
| LWW-5-24P | 24*1W | RGB/Single color | L840mm | 24 Watts | 15/30/45 |
| LWW-5-36P | 36*1W | RGB/Single color | L1120m | 36 Watts | 15/30/45 |
| LWW-5-18*3W | 18*3W | RGB/Single color | L1000mm | 54 Watts | 30/45/60 |
| LWW-5-18*3W | 18*3W | RGB (3IN1) | L1000mm | 54 Watts | 30/45/60 |
Features: 1. No need controller ,build-in DMX512 decoder
2. Simple installation , plug to AC220V only , no need wire to connect to DMX512 controller
3.Three working mode: independent, DMX, Master/Slave mode
4. Can be connect external DMX512 controller
5.High brightness, projecting up to 65 feet
6.Suitable for heavy duty (more than 12 hours per day)
7.High quality lens with 150°rotary angle, flexible to install
Description:
Best selling Points .

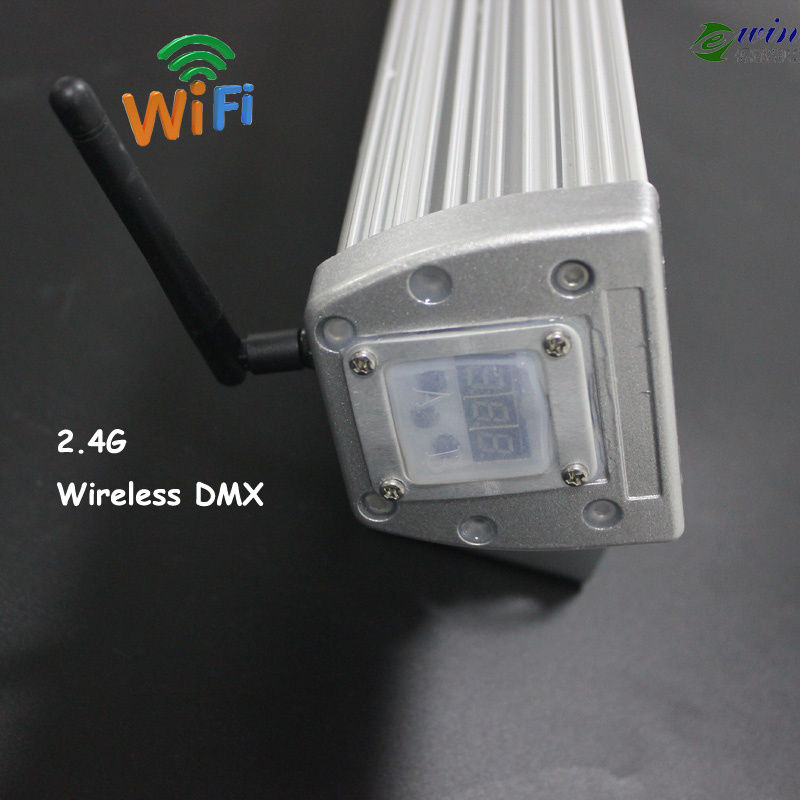

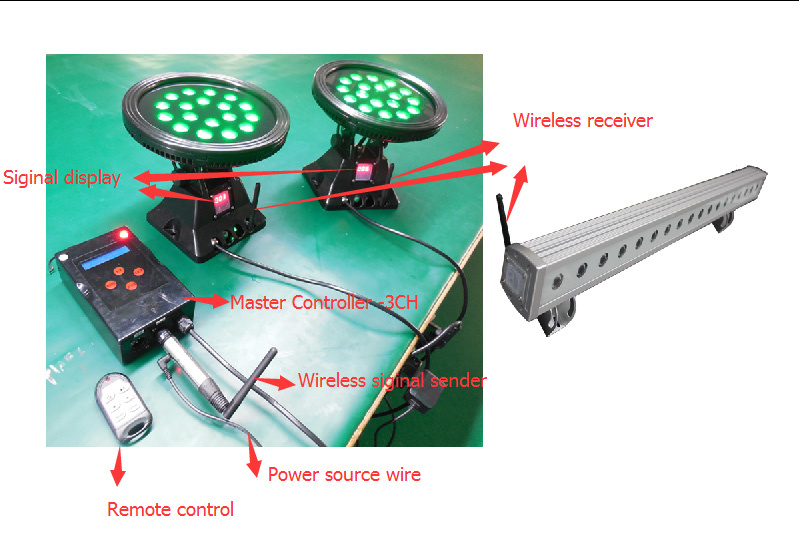

1. What is the Wireless system?
1. 7 Group ID Code can be set, The user can Use the Independent 7 groups of wireless network and won't mutually interference.2. 7 Group ID Code corresponding to the color of the RGB indicator light, only the same ID lamps can communicate with each other.2. ID code can be chosen by the button. 3. The indicator light kept lighting: No DMX or wireless signal.4. LED red indicator light flashing: Signal sent5. LED Green indicator Light flashing: Signal received.6. Communication distance: 300 meters.7. Working frequency ban: 2.4G, IM, 126 frequency Band.Parameter for 1120mm LED Washer
Physical Specifications |
(OEM/ODM: Available) |
Dimension |
L1120*W130*H82mm |
Housing |
Aluminum Alloy + Tempered Glass |
Net weight |
5.6 kg |
Rotary Angle |
150° |
IP Rating |
IP65(suitable for dry, wet, and damp environment) |
Electrical Specifications |
|
Lighting Source |
4W LED |
LED Quantity |
18 pcs |
Operation Temperature |
-20°C~40°C(-4°F~104°F) |
Input Voltage |
100-256V AC |
Power Consumption |
72W |
Optical Specification |
|
Chip type |
Edison |
Beam Angle |
15 ° ,25 ° ,30°,45°,60°,90°,30 °*60 ° |
Color |
RGBW |
1 |
60 meters |
