Prod Model: |
LC-L001-5-300 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |
300W White LED Street Light |
Whole Module Quantity: |
90lm/W |
Warranty: |
3years |
Lifespan: |
50000h |
N.W.: |
12kg |
Product Size: |
L886*W338*H100mm |
Power Supply: |
AC |
Color Temperature: |
Pure White |
Lamp Body Material: |
Aluminum Alloy |
Application: |
Garden |
IP Rating: |
IP67 |
Certification: |
RoHS |
With Light Source: |
With Light Source |
LED Chips Brand: |
Bridgelux |
Power: |
300W |
Input Voltage: |
AC85~265V/DC127~431V |
Product Description

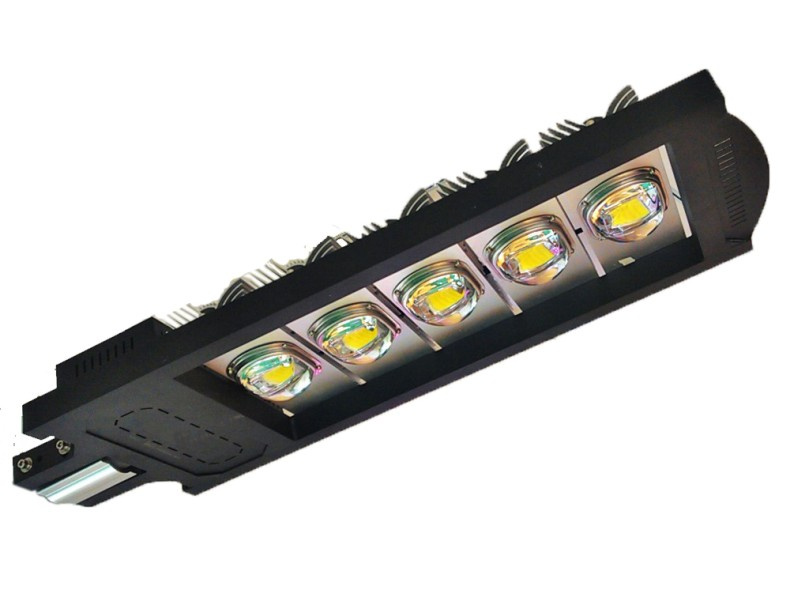

Manufacturer outdoor 300w white led street light
Product Features:
1)Owning the independent national design patents and utility model patents.
2)LED Chip:Bridgelux chip or Chinese chip.
3)Good Heat Dissipation,High Stability.
4)Light Efficiency:90LM/W.
5)Enviromental Friendly.
Specification.
Model | LC-L002-5-300 |
Power | 300W |
LED Module Quantity | 5 |
Total Flux | 27000LM |
Color Temperature | 6500K |
Color Rendering Index | CRI≥75 |
Input Voltage | AC85~265V/DC127~431V |
Power Efficiency | 92% |
Power Factor | 0.98 |
Total Harmonic Distortion | <15% |
Power supply Withstand Voltage | Conform to 4KV Surge Immunity Level(IEC61000-4-5)I/P-O/P:3.75KVAC,I/P-FG:1.88KVAC,O/P-FG:0.5KVAG |
Power Supply Safely Standards | UL8750,TUV EN61347-7,EN61347-2-13,PSE J61347-1,J61347-2-13 |
Power Supply Compatible with Standard | EN55015,EN55022 class B,EN61000-3-2 class C,EN61000-4-2,3,4,5,6,8,11 ,EN61547 |
Working Temperature | -40ºC~55ºC |
Humidity | 10%~95% |
IP Rating | IP67 |
N.W. | 14kg |
Product Size | L1006*W338*H100mm |
Packaging&Shipping
Packaging: Carton with foam
Delivery time: sample order around 5days. regular order around 25 days,it depends on the quantity.
Shipping:depend on the client,supply the fastest and the most convenient serve.
Our Services
1.Your inquiry will be replied in 24hrs. Experienced staffs to answer all your inquires with fluent English.
2.Excellent logistics service provide you strong package and fast delivery and update logistics information in time.
3..Five tests and checks during assembly process.
4. Customers can order all product samples we put or you can have your ideas,as our company is a customer-oriented supplier, so different colors and types are available.
5.Payment terms: T/T deposit + balance; L/C at sight.
6.Guarantee time: 3 years.
7.Price term: EXW/FOB/CFR/CIF.
The characteristics of LEDCENT's LED street light:
A. Light body:
1.Own independent the national design patents and the utility model patents;;
2.Anti-typhoon, anti-wind, anti-corrosion, waterproof grade IP67;
3.Structure adopts modular design that is easy to install and maintain;
4.Because of the low thermal resistance of structural design and the professional thermal design, the thermal performance of our products are superior to other similar products;
5.According to different pole's elevation, the angle can be adjusted for the different width of the road.
B. Light distribution:
1.Adopting the international advanced LED rectangular optical technology, the light can form the 4: 1 rectangular light sopt, so that it will be able to most efficiently illuminate the floor;
2.Own the scientific lamp light distribution technology, the unique fluorescent powder formula,the advanced packaging technology, the high brightness imported chip;
3.the led lamp's efficiency can reach 115lm/W;
4.Because of no adverse glare, no flicker, eliminating adverse ordinary lights glare caused by glare,tje Ledcent's street light can reduce the visual fatigue sight interference to improve the safety of driving.
C. Power Driver:
1.The street lamp's lifetime mainly depends on the power and generally is 2-3 years in the market. But using the patented technology and importing the high-quality electronic components ,the LEDCETN Photoelectric can make the power's lifetime up to 5 years;
2.The LEDCENT's power can provide input overvoltage, under voltage , overcurrent ,lightning and short circuit protection function;
3.Multichannel supply and reliable driver circuit is not only to ensure the stability of the LED work, but also provide convenience for the control of the LED power's consumption.
D. Environmental friendly:
1.The gradient type intelligent dimming system can save the energy that let the lamp light in full power about 5 hours before the night and has half power in the remaining time.
2.Being compared with the traditional sodium lamp, the LEDCENT's led lamp energy saving up to 70%;
3.No lead, no mercury and other pollution elements, no environmental pollution.
About US
Zhongshan ledcent optoelectronics technology co.,ltd. Headquartered in industrial district of henglan,Zhongshan city,Guangdong provice,China. Ledcent covers an area of 30,000 square meters with over 200 employees. Our annual sales value has reached 51 million. And also listed as key procurement enterprises by government. With the development, our products have sold to Europe, America, southeast Asia, Middle East, more than 20 countries and regions.
Ledcent is a high tech enterprise that engages in the R&D,designing, installation and after- sales servises for all kinds of LED lighting products.Because of the advanced management and powerful R&D.team,we have got some advantages in manufacturing LED Display and LED Street Light, Solar LED Street Light, LED Tunnel Light, LED Explosion-proof Light . Also successfully acquired ISO9001-2008 quality verification and passed CQC,CE,FCC,RoHS which ensure the quality for each of our products.
Quality and Brand is the most important part of Ledcent.Through the Science & Technology innovation and after-sales service. We get high praise from many customers in practical application.
We sincerely hope that we can make the cooperation with you are. To lead the global mission of Low carbon,Save Energy,Green and Healthy.
FAQ
Q1: What is the warranty for the lights ?
A1: For the lights, we have 3years warranty.
Q2: Can you provide us some useful installation methods?
A2: Usually, we put the Installation Specification in the package.
Q3: Is there any cheap logistic way to import your lights to our country?
A3: For small order or samples Express will be the best. For bulk order sea ship way is the best but take much time. For urgent orders, we suggest via airway.
Q4: Can we get support if we have own market position?
A4: Yes, please inform us your detailed information about your market demands.We will provide you professional suggestions and best solution.
Q5: Can you supply the product of the other watt?
A5:Yes,we can.please contact us!
Q6: Do you have the other type of led street light?
A6:Yes,expect this one,we still have the others!
Zhongshan Ledcent Optoelectronics technology Co., Ltd. Headquartered in industrial district of henglan town, Zhongshan city, Guangdong province, China. Registered fund is 51 million. And also Ledcent is listed as one of the key procurement enterperises by government. Ledcent set up the branch office in China, like Zhejiang, Shanghai, Shenyang, Hainan, Yunnan, Xinjiang and so on. There are totally 160 branch office. Our products also has been exported to Europe, America, Southeast, Middle East, and more than 20 countries and area. Ledcent is focusing on Low-CO2, energy-saving career, which is a set design, research, encapsulation, marketing and service in one of manufacturers of LED applications.
Relying on advanced management, Strong R&D capabilities and rich resource in all of the world, Ledcent is setting up a international LED industrial platform. Reach out a serial of green-energy saving, safety, stable performance products, just like: LED street light, LED solar street light, LED tunnel light, LED industrial light, LED wall washer, LED flood light, LED tube, LED sport light, LEDunderground light, LED underwater light, LED bulbs and so on. We have excellent auto production line, just like Auto SMD machine, Plug in Machine, wave-soldering machine, reflow soldering, automatic filling glue and other advanced production equipment and international highend testing equipment, experienced LED research and development team for technology-LED, inviting senior management personnel in the industry, sales of the elite. Our company in strict accordance with ISO9001, ISO14001, OHSMS18001 quality, the environment, the health system to standardize the management, our products through CQC, CE, FCC, RoHS, energy-saving certification, to ensure that every piece of product quality.
Ledcent will insist on developing the quality strategy and brand strategy together. Because of trustful and good quality management idea, Ledcent has been wined China and abroad many friends high comments. We are always keeping the "Science and technology" task in mind, using our high technology to improve human living enciroment, lead the LED energy-saving, environmental-protection undertakings and make unremitting efforts!
