| Prod Model: |
XHX-HB-70WLDY02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Chip Brand: |
COB Bridgelux |
| Lead Time: |
1 Working Days |
| Power Factor: |
>0.9 |
| Voltage: |
220V |
| Color: |
Warm White Nature White Cool White |
| Life(H): |
50000hrs |
| Size: |
420xh257mm |
| Mounting Height: |
6-9m |
| LED Driver: |
APC-35-700 (Meanwell) |
| Weight: |
2 PCS/CTN, 4.7kg/CTN |
| Usage: |
Household Appliances |
| Emitting Color: |
White |
| Beam Angle: |
60?? |
| LED Chips: |
Bridgelux |
| IP Rating: |
IP65 |
| Certification: |
CE |
| Power: |
70W |
| Life: |
50000 |
Product Description
Low Heat Value 5 years warranty IP65 70w high bay led light
1. Power: 30W
2. LED Chip: High power
3. Lumens:100lm/w
4. CRI: >80%
5. Power factorr: >0.95
6. Good heat disspation
7.50000hrs
Comparison:
1. Incandescent Light Bulb: 1-4% efficient
2. Fluorescent: 15-25% efficient
3. LED: 20-52% efficient (60-80% theoretical)
Safety Notice for Using:
.Please always use the light out of its package.
.Before starting use of the light ,please check if the light was damaged during transportation.if any damage shown,please DO not install or use it.
.Any maintenance should be performed by trained professionals only.
.Keep packaging material away from the rech of children and pets.Risk of suffocation!
.Caution.The packaging contains small parts that may be swallowed by children.
.Never leave childree unattended in the vicinity of the lights and do not allow them to play with electrical devices.
.Try to avoid looking directly in the LED beam-especially for extended periods of time.Do not shine the LED light in another person's eyes.
.Never cover the lights by other objects.
.Never allow the light to come into contact with open flames or external heat sources.
.The products need to re-repair inspection or special treatment of retirement after service time.
Maintenance:
.Prior to cleaning the light,make sure it has been disconnected form the power supply.
.Use a dry or slightly moistened cloth for cleaning.
.Never use any chemicals or abrasives for cleaning.
Disposal:
.Used electronic devices must be collected for recycling and cannot be deposited together with daily garbage.
Installation:
.This product should be installed by trained electricians.
.Check integrality of the products when unpack the packing.
.The distance between the light and any flammable materials must not be less than 0.2m.The distance between the upper part of the installed light and the ceiling must not be less than 2cm.The light must not be installed into ceilings or walls that contain heat-insulating material.
. The main cable must not connect with the low volage cable or the surface-mounted lights.
.Guide the lights' connecting cables through the drilled-out hole,and fix the surface-mounted lights with the pre-fitted clips.Make sure that these are securelyconnected to the base material.
.When laying the cables,make sure that the cables and plugs are not subjected to any tensile or twisting forces.Fit the cable tension relieving mechanisms to the connection points of the surface-mounted lights .Do not kink cables.Output cables should be laid separately and at adistance from other cables.
.After installation,connect the transformet to the mains supply.
Proceed by connecting the wiring cables to the luminaries.Usually,the brown
(or black)wire is the Live wire,connect it with the terminal marked'L'.The blue
wire is Naughty wire,connect it with the terminal marked'N'.
Disposal:
.Use only the LED drover included,and do not connect the surface-mounted lightsto other loads.
Do not remove the name plate of the power suply and driver of the light.
Notes:
Non-professinonals are not allowed to disassemble and maintain the products.We
have the right not to provide after-slae service if unauthorized disassembly and
maintenance happens to the products.
| Part No | Name | Electrical | Photometric | Packaging |
| XHX-GKD30W-02 |
| Input Voltage: | 90-264V AC 50/60Hz | Light Output: | 3000-3500 lm | container: | L460 x W460 x H320mm |
| Input Power: | 30W | Beam Spread: | 100° | 2 pcs/ctn, 4.7kg/ctn |
| 30W | Power Factor: | 0.8 | CCT: | 5000-6000K | 20GP | 288 pcs |
| Highbay | Dimension: | 420xH257mm | CRI: | 80 | 40GP | 600 pcs |
| Mounting: | suspended | Mounting Height: | 3-5m | 40HQ | 800 pcs |
| Heat Dissipation: | phase-changing cooling | LED Lamp: | Osram Duris S5 LED x36 |
|
|
| LED Driver: | APC-35-700 (Meanwell) |
|
|
|
|
|
|
|
|
|
|
| XHX-GKD30W-03 |
| Input Voltage: | 90-264V AC 50/60Hz | Light Output: | 3000-3500 lm | container: | L460 x W460 x H320mm |
| Input Power: | 30W | Beam Spread: | 100° | 2 pcs/ctn, 4.7kg/ctn |
| 30W | Power Factor: | 0.8 | CCT: | 5000-6000K | 20GP | 288 pcs |
| Highbay | Dimension: | 420xH257mm | CRI: | 80 | 40GP | 600 pcs |
| Mounting: | suspended | Mounting Height: | 3-5m | 40HQ | 800 pcs |
| Heat Dissipation: | phase-changing cooling | LED Lamp: | Bridgelux COB 30W LED x1 |
|
|
| LED Driver: | APC-35-700 (Meanwell) |
|
|
|
|
|
|
|
|
|
|

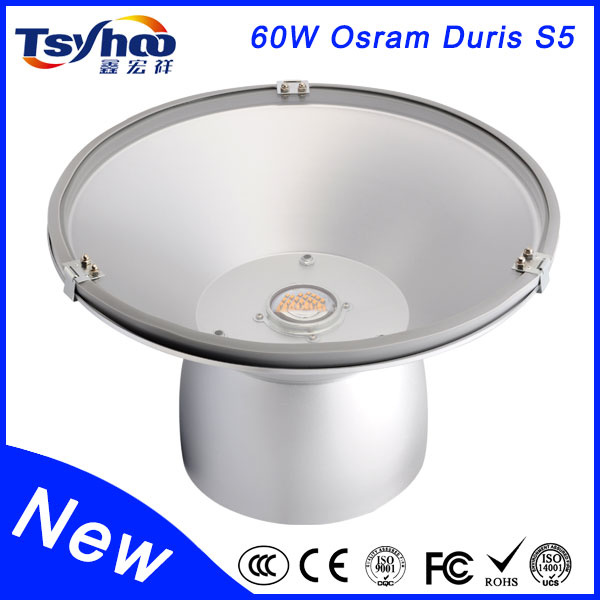

| XHX-GKD60W-02 |
| Input Voltage: | 90-264V AC 50/60Hz | Light Output: | 6000-6500 lm | container: | L460 x W460 x H320mm |
| Input Power: | 60W | Beam Spread: | 100° | 2 pcs/ctn, 4.7kg/ctn |
| 60W | Power Factor: | 0.8 | CCT: | 5000-6000K | 20GP | 288 pcs |
| Highbay | Dimension: | 420xH257mm | CRI: | 80 | 40GP | 600 pcs |
| Mounting: | suspended | Mounting Height: | 4-6m | 40HQ | 800 pcs |
| Heat Dissipation: | phase-changing cooling | LED Lamp: | Osram Duris S5 LED x60 |
|
|
| LED Driver: | LPC-60-1750 (Meanwell) |
|
|
|
|
|
|
|
|
|
|
| XHX-GKD60W-03 |
| Input Voltage: | 90-264V AC 50/60Hz | Light Output: | 6000-6500 lm | container: | L460 x W460 x H320mm |
| Input Power: | 60W | Beam Spread: | 100° | 2 pcs/ctn, 4.7kg/ctn |
| 60W | Power Factor: | 0.8 | CCT: | 5000-6000K | 20GP | 288 pcs |
| Highbay | Dimension: | 420xH257mm | CRI: | 80 | 40GP | 600 pcs |
| Mounting: | suspended | Mounting Height: | 4-6m | 40HQ | 800 pcs |
| Heat Dissipation: | phase-changing cooling | LED Lamp: | Bridgelux COB 60W LED x1 |
|
|
| LED Driver: | LPC-60-1750 (Meanwell) |
|
|
|
|
|
|
|
|
|
|
| XHX-GKD70W-02 |
| Input Voltage: | 90-295V AC 50/60Hz | Light Output: | 7100-8300 lm | container: | L527 x W342 x H390mm |
| Input Power: | 70W | Beam Spread: | 60° / 100° | 2 pcs/ctn, 10.6kg/ctn |
| 70W | Power Factor: | 0.95 | CCT: | 5000-6000K | Reflector: 100° | L540 x W540 x H280mm |
| Highbay | Dimension: | 495xH464mm | CRI: | 80 | 10 pcs/ctn, 7.4kg/ctn |
| Mounting: | suspended | Mounting Height: | 6-8m | 20GP | 560 pcs |
| Heat Dissipation: | phase-changing cooling | LED Lamp: | Osram Duris S5 LED x72 | 40GP | 1220 pcs |
| LED Driver: | CEN-75-36 (Meanwell) | 40HQ | 1540 pcs |
|
|
|
|
|
|
|
|
| XHX-GKD70W-03 |
| Input Voltage: | 90-295V AC 50/60Hz | Light Output: | 7100-8300 lm | container: | L527 x W342 x H390mm |
| Input Power: | 70W | Beam Spread: | 60° / 100° | 2 pcs/ctn, 10.6kg/ctn |
| 70W | Power Factor: | 0.95 | CCT: | 5000-6000K | Reflector: | L540 x W540 x H280mm |
| Highbay | Dimension: | 495xH464mm | CRI: | 80 | 10 pcs/ctn, 7.4kg/ctn |
| Mounting: | suspended | Mounting Height: | 6-8m | 20GP | 560 pcs |
| Heat Dissipation: | phase-changing cooling | LED Lamp: | Bridgelux COB 60W LED x1 | 40GP | 1220 pcs |
| LED Driver: | CEN-75-36 (Meanwell) | 40HQ | 1540 pcs |
|
|
|
|
|
|
|
|
| XHX-GKD100W-02 |
| Input Voltage: | 90-295V AC 50/60Hz | Light Output: | 9500-10000 lm | container: | L527 x W342 x H390mm |
| Input Power: | 100W | Beam Spread: | 60° / 100° | 2 pcs/ctn, 10.6kg/ctn |
| 100W | Power Factor: | 0.95 | CCT: | 5000-6000K | Reflector: | L540 x W540 x H280mm |
| Highbay | Dimension: | 495xH464mm | CRI: | 80 | 10 pcs/ctn, 7.4kg/ctn |
| Mounting: | suspended | Mounting Height: | 8-10m | 20GP | 560 pcs |
| Heat Dissipation: | phase-changing cooling | LED Lamp: | Osram Duris S5 LED x 98 | 40GP | 1220 pcs |
| LED Driver: | CEN-100-48 (Meanwell) | 40HQ | 1540 pcs |
|
|
|
|
|
|
|
|
| XHX-GKD100W-03 |
| Input Voltage: | 90-295V AC 50/60Hz | Light Output: | 9500-10000 lm | container: | L527 x W342 x H390mm |
| Input Power: | 100W | Beam Spread: | 60° / 100° | 2 pcs/ctn, 10.6kg/ctn |
| 100W | Power Factor: | 0.95 | CCT: | 5000-6000K | Reflector: | L540 x W540 x H280mm |
| Highbay | Dimension: | 495xH464mm | CRI: | 80 | 10 pcs/ctn, 7.4kg/ctn |
| Mounting: | suspended | Mounting Height: | 8-10m | 20GP | 560 pcs |
| Heat Dissipation: | phase-changing cooling | LED Lamp: | Bridgelux COB 90W LED x1 | 40GP | 1220 pcs |
| LED Driver: | CEN-100-36 (Meanwell) | 40HQ | 1540 pcs |
|
|
|
|
|
|
|
|
| XHX-GKD120W-02 |
| Input Voltage: | 90-295V AC 50/60Hz | Light Output: | 11000-12000 lm | container: | L527 x W342 x H390mm |
| Input Power: | 120W | Beam Spread: | 60° / 100° | 2 pcs/ctn, 10.6kg/ctn |
| 120W | Power Factor: | 0.95 | CCT: | 5000-6000K | Reflector: | L540 x W540 x H280mm |
| Highbay | Dimension: | 495xH464mm | CRI: | 80 | 10 pcs/ctn, 7.4kg/ctn |
| Mounting: | suspended | Mounting Height: | 9-10m | 20GP | 560 pcs |
| Heat Dissipation: | phase-changing cooling | LED Lamp: | Osram Duris S5 LED x 119 | 40GP | 1220 pcs |
| LED Driver: | CLG-150-48A (Meanwell) | 40HQ | 1540 pcs |
|
|
|
|
|
|
|
|
| XHX-GKD120W-03 |
| Input Voltage: | 90-295V AC 50/60Hz | Light Output: | 11000-12000 lm | container: | L527 x W342 x H390mm |
| Input Power: | 120W | Beam Spread: | 60° / 100° | 2 pcs/ctn, 10.6kg/ctn |
| 120W | Power Factor: | 0.95 | CCT: | 5000-6000K | Reflector: | L540 x W540 x H280mm |
| Highbay | Dimension: | 495xH464mm | CRI: | 80 | 10 pcs/ctn, 7.4kg/ctn |
| Mounting: | suspended | Mounting Height: | 9-10m | 20GP | 560 pcs |
| Heat Dissipation: | phase-changing cooling | LED Lamp: | Bridgelux COB 100W LED x1 | 40GP | 1220 pcs |
| LED Driver: | CLG-150-36A (Meanwell) | 40HQ | 1540 pcs |
|
|
|
|
|
|
|
|
| XHX-GKD150W-02 |
| Input Voltage: | 90-295V AC 50/60Hz | Light Output: | 14000-16000 lm | container: | L527 x W342 x H460mm |
| Input Power: | 150W | Beam Spread: | 60° / 100° | 2 pcs/ctn, 12.4kg/ctn |
| 150W | Power Factor: | 0.95 | CCT: | 5000-6000K | Reflector: | L540 x W540 x H280mm |
| Highbay | Dimension: | 495xH534mm | CRI: | 80 | 10 pcs/ctn, 7.4kg/ctn |
| Mounting: | suspended | Mounting Height: | 10-12m | 20GP | 520 pcs |
| Heat Dissipation: | phase-changing cooling | LED Lamp: | Osram Duris S5 LED x 147 | 40GP | 1129 pcs |
| LED Driver: | CLG-150-48A (Meanwell) | 40HQ | 1420 pcs |
|
|
|
|
|
|
|
|
| XHX-GKD150W-03 |
| Input Voltage: | 90-295V AC 50/60Hz | Light Output: | 14000-16000 lm | container: | L527 x W342 x H460mm |
| Input Power: | 150W | Beam Spread: | 60° / 100° | 2 pcs/ctn, 12.4kg/ctn |
| 150W | Power Factor: | 0.95 | CCT: | 5000-6000K | Reflector: | L540 x W540 x H280mm |
| Highbay | Dimension: | 495xH534mm | CRI: | 80 | 10 pcs/ctn, 7.4kg/ctn |
| Mounting: | suspended | Mounting Height: | 10-12m | 20GP | 520 pcs |
| Heat Dissipation: | phase-changing cooling | LED Lamp: | Bridgelux Vero 29 150W LED x1 | 40GP | 1129 pcs |
| LED Driver: | CLG-150-48A (Meanwell) | 40HQ | 1420 pcs |
|
|
|
|
|
|
|
|
| XHX-GKD180W-02 |
| Input Voltage: | 90-305V AC 50/60Hz | Light Output: | 18000-19000 lm | container: | L365 x W335 x H385mm |
| Input Power: | 180W | Beam Spread: | 60° | 1 pc/ctn, 9.2kg/ctn |
| 180W | Power Factor: | 0.95 | CCT: | 5000-6000K | Reflector: | L515 x W515 x H390mm |
| Highbay | Dimension: | 460xH576mm | CRI: | 80 | 10 pcs/ctn, 9.2kg/ctn |
| Mounting: | suspended | Mounting Height: | 12-14m | 20GP | 480 pcs |
| Heat Dissipation: | phase-changing cooling | LED Lamp: | Osram Duris S5 LED x 168 | 40GP | 1040 pcs |
| LED Driver: | HLG-240H-48A (Meanwell) | 40HQ | 1314 pcs |
|
|
|
|
|
|
|
|
| XHX-GKD200W-02 |
| Input Voltage: | 90-305V AC 50/60Hz | Light Output: | 19000-21000 lm | container: | L365 x W335 x H385mm |
| Input Power: | 200W | Beam Spread: | 60° | 1 pc/ctn, 9.2kg/ctn |
| 200W | Power Factor: | 0.95 | CCT: | 5000-6000K | Reflector: | L515 x W515 x H390mm |
| Highbay | Dimension: | 460xH576mm | CRI: | 80 | 10 pcs/ctn, 9.2kg/ctn |
| Mounting: | suspended | Mounting Height: | 14-16m | 20GP | 480 pcs |
| Heat Dissipation: | phase-changing cooling | LED Lamp: | Osram Duris S5 LED x 196 | 40GP | 1040 pcs |
| LED Driver: | HLG-240H-48A (Meanwell) | 40HQ | 1314 pcs |
|
|
|
|
|
|
|
|
| XHX-GKD200W-IP-02 |
| Input Voltage: | 90-305V AC 50/60Hz | Light Output: | 19000-21000 lm | container: | L415 x W415 x H525mm |
| Input Power: | 200W | Beam Spread: | 45° | 1 pc/ctn, 10.4kg/ctn |
| 200W | Power Factor: | 0.95 | CCT: | 5000-6000K | 20GP | 260 |
| Highbay | Dimension: | 355xH517mm | CRI: | 80 | 40GP | 520 |
| Mounting: | suspended | Mounting Height: | 14-16m | 40HQ | 520 |
| Heat Dissipation: | phase-changing cooling | LED Lamp: | Osram Duris S5 LED x 196 |
|
|
| LED Driver: | HLG-240H-48A (Meanwell) |
|
|
|
|
|
|
|
|
|
|
| XHX-GKD300W-01 |
| Input Voltage: | 90-305V AC 50/60Hz | Light Output: | 28000-32000 lm | container: | L410 x W300 x H440mm |
| Input Power: | 300W | Beam Spread: | 60° | 1 pc/ctn, 13.00kg/ctn |
| 300W | Power Factor: | 0.95 | CCT: | 5000-6000K | Reflector: | L515 x W515 x H390mm |
| Highbay | Dimension: | 460xH662mm | CRI: | 72 | 10 pcs/ctn, 9.2kg/ctn |
| Mounting: | suspended | Mounting Height: | 16-18m | 20GP | 360 |
| Heat Dissipation: | phase-changing cooling | LED Lamp: | Cree XPG-2 LED x 168 | 40GP | 720 |
| LED Driver: | HLG-320H-48A (Meanwell) | 40HQ | 720 |
|
|
|
|
|
|
|
|
| XHX-GKD500W-01 |
| Input Voltage: | 90-305V AC 50/60Hz | Light Output: | 48000-50000 lm | container: | L410 x W385 x H500mm |
| Input Power: | 500W | Beam Spread: | 60° | 1 pc/ctn, 15.00kg/ctn |
| 500W | Power Factor: | 0.95 | CCT: | 5000-6000K | Reflector: | L515 x W515 x H390mm |
| Highbay | Dimension: | 460xH693mm | CRI: | 72 | 10 pcs/ctn, 9.2kg/ctn |
| Mounting: | suspended | Mounting Height: | 18-20m | 20GP | 360 |
| Heat Dissipation: | phase-changing cooling | LED Lamp: | Cree XPG-2 LED x 196 | 40GP | 720 |
| LED Driver: | HLG-320H-48A(Meanwell) HLG-240H-48A(Meanwell) | 40HQ | 720 |
1. Xinhongxiang Optoelectronics (Shenzhen) Co., Ltd is LED products manufacturer, build in 1996, cover 20,000 m².
2. Fully automatic production lines, Advanced production equipment, Strong R&D Team.
3. Products have exported more than 100 countries, Such as Brazil,USA,Mexico,Canada,Germany etc.
4. Service before sale: technical support, design schemes; Training after order:software,operate,maintain.
5. Certificate: CE,FCC,UL,RoHS,CCC,ISO etc.
Our service goal
What you think is what we need to do!
What we promise is what we are fulfilling!
Warmly welcome your visiting!!!
24-hours customer service response.
Xinhongxiang Optoelectronics (Shenzhen) Co., Ltd. As one of the most leading LED Products manufacturer in Shenzhen China, covering 10 000 square meters, register capital high up to 30 million CNY, is one high-tech enterprise focus on researching, producing, sale and service of LED products, . Nowadays Xinhongxiang owns fully automatic production lines, independent purifying workshop, researching center, most advanced production and inspection equipments, which guarantee the quality of the LED products. All the products have exported more than 100 countries, such as USA, Mexico, Canada, Brazil, Chile, Argentina, Panama, Colombia, Germany, France, Sweden, Italy, Spain, Russia, Poland, Turkey, Ukraine, South Africa, Egypt, Saudi Arabia, Singapore, Thailand, India etc
Developing History:
From 1996 to 2010, Xinhongxiang Optoelectronics (shenzhen) Co., Ltd, mainly involved in LED encapsulation and LED Display.
Since 2010, owe to enlarge the company scale and build up self-owned brand, Xinhongxiang focus on LED lighting, Shenzhen BESDLED Co., Ltd focus on LED display, business involved in indoor and outdoor LED Encapsulation, LED Display and LED Lighting Products.
LED Display:
Full Color Indoor and outdoor LED Display, single or dual basic color LED signs, LED Curtain, LED Dance Floor, Rental LED Display,
LED Lighting:
LED Bulb, LED Tube, LED Spotlight, LED DownLight, LED Panel Light, LED Street etc,
Comparing with many of LED Manufactures, xinhongxiang owns the following advantages to be your best choice for long term cooperation partner.
1, Fully automatic production lines
Xinhongxiang owns the entire LED manufacturing line, from original Semiconductor to LED chip, then assemble to LED display and LED lighting products.
2, Advanced production equipment
SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP LED, Spectrum and Color Separation Machine, LED oven, Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. Are equipped for our LED Product production.
3, Many Certification approved to clear up the trade barriers
CE, FCC, UL, RoHS, CCC, ISO9001: 2000 etc are obtained.
4, Strong R&D Team
Xinghongxiang absorb many talents, with more than 500 staffs, and including more than 100 engineers and technician, which paves the way for R&D for new products and excellent sales service
5): After-Service,
Principles: Response in time, solve problem ASAP and ensure the use.
Period: During warranty period, free of all maintenance charges;
After Warranty, only charge the material cost.
All the life time, Technology support is free.
