Brightness:
1, 500nits
Color Temperature:
6500k
Viewing Angle:
140/140
Panel Weight:
13.5kg
Panel Size:
500X1000mm
Panel Material:
Die-Cast Aluminum
Mounting System:
Hanging / Fixed
Tube Chip Color:
Full Color
Display Function:
Video Display
Application:
Stage Performance
IP Rating:
IP40
Certification:
CE
Pixel Pitch:
6.944
Pixel Configuration:
3in1 SMD
Pixel Density:
20,736 Dots/Sqm
System Operating Platform:
Windows7, Vista, XP, 2000, 98
Product Description

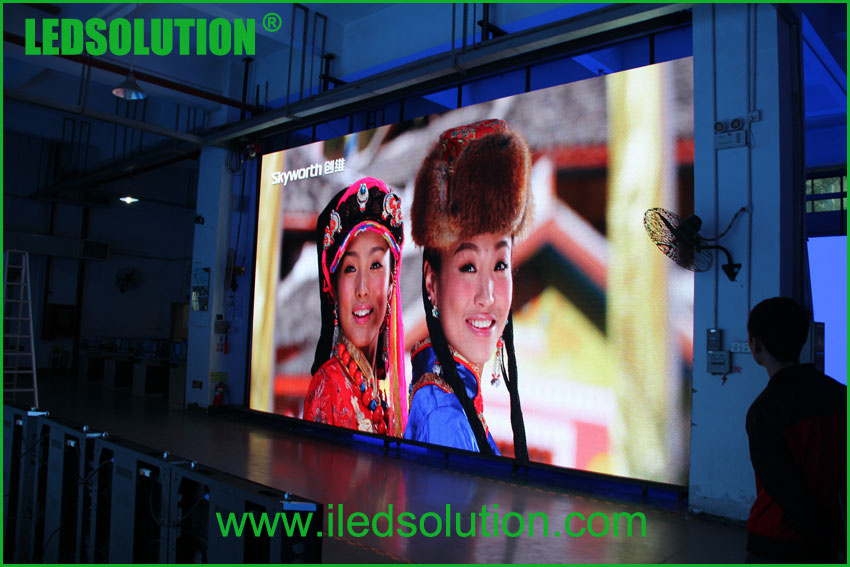

LEDSOLUTION Die-cast Indoor P6.944 LED Display Features:
Different pitch, same size: 500x1000mm Light Weight: 13.5kg/panel Easy assembly & disassembly by hands, without tools Super smart flatness Sharp Brightness for outdoor use Seamless tiled display Up to 65,536 million colors Long Durability and High Reliability Low Maintenance Cost Energy Efficient Superb Picture Quality
Parameter
Unit
Value
Pitch
mm
6.944
Brightness
nits
1,500
Color temperature
deg. K
6,500
Viewing angle - Horizontal (50% brightness)
deg.
140(-70 ~ +70)
Viewing angle - Vertical (50% brightness)
deg.
140(-70 ~ +70)
Panel weight
kg
13.5
Panel width
mm
500
Panel height
mm
1,000
Panel depth
mm
95
Panel area
sq. m.
0.5
Panel material
Epoxy paint coated Aluminum
Panel Mode
Die-Cast rental
Operating temperature range
deg. C
-30 to +60
Humidity operating
RH
10% ~ 90%
Pixel type and configuration
R/G/B
3in1 SMD
Resolution per panel
72x144
Dot per panel
10,368
Dot per sq. meter
20,736
LED per sq. meter
20,736
Recommended minimum viewing distance
m
5.2
Recommended best viewing distance
m
6~60
Colors
281 Trillion
Grey scale (linear)
Levels
65,536 levels per color
Brightness control
Levels
100
Contrast ratio
3,000:1
Processing depth
bit
16
Video frame rate
Hertz
60
Display refresh rate
Hertz
180~3,000
Input voltage (nominal)
VAC
110 to 240
Input power frequency
Hertz
50 to 60
Input power (max)
Watts / panel.
250
Input power (typical)
Watts / panel.
100
Lifetime (50% brightness)
Hours
≥100,000
Red wavelength (dominant)
nm
620~625
Green wavelength (dominant)
nm
520~525
Blue wavelength (dominant)
nm
470~475
Multimedia data format
DVI,MPG,AVI,WMV,RM etc.
Data interconnection
UTP Cat 5/Optical Fiber
Mounting system
Hanging / Fixed
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.
With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.
For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality
And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
