Brightness:
Over 6000nit
Viewing Angle:
130/60 Degree
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP65
Application:
Advertising
Pixel Configuration:
1R, 1G, 1B
Pixel Pitch:
16mm
Display Function:
Video Display
Scanning Mode:
Static Scan
Certification:
RoHS
Pixel Density:
3906 Dots/M2
Average Power Consumption:
244W/M2
Product Description

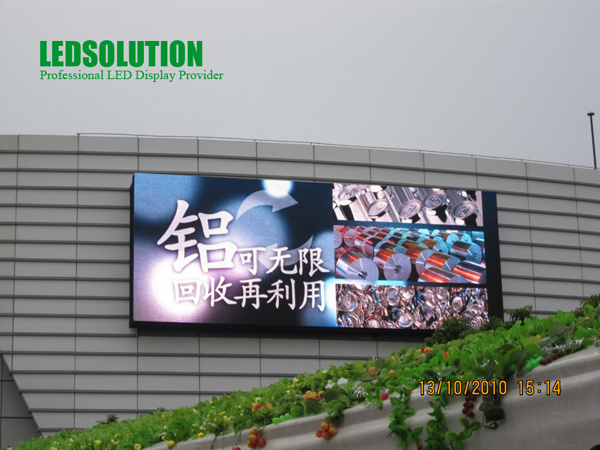

Features of the outdoor LED Display:
*Weatherproof to IP65 standards *High resolution images *Easily configured for various size and aspect ratios *Wide viewing angle *Brightness from 6000 nits onwards
Parameter
Unit
Value
Pitch
mm
16
Brightness
nits
6, 000
Color temperature
deg. K
6, 500
Viewing angle – Horizontal (50% brightness)
deg.
130 (+65/-65)
Viewing angle – Vertical (50% brightness)
deg.
60(+30/-30)
Panel weight
kg
90
Panel width
mm
1, 536
Panel height
mm
1, 024
Panel depth
mm
170
Panel area
sq. m.
1.573
Panel material
Epoxy paint coated Cold rolled steel
Ingress protection (front/rear)
IP
IP65/IP43
Operating temperature range
deg. C
-30 to +60
Humidity operating
RH
10% ~ 90%
Pixel type and configuration
R/G/B
1, 1, 1 / 2, 1, 1
Resolution per panel
64x64
Dot per panel
4, 096
Dot per sq. meter
3, 906
LED per sq. meter
11, 718 / 15, 624
Recommended minimum viewing distance
m
16
Recommended best viewing distance
m
22~53
Colors
281 Trillion
Grey scale (linear)
Levels
65536 levels
Brightness control
Levels
256
Contrast ratio
1, 000: 1
Processing depth
bit
16
Video frame rate
Hertz
60
Display refresh rate
Hertz
180~3, 000
Input voltage (nominal)
VAC
110 to 240
Input power frequency
Hertz
50 to 60
Input power (max)
Watts /sq. m.
1, 000
Input power (typical)
Watts /sq. m.
400
Lifetime (50% brightness)
Hours
≥ 100, 000
Red wavelength (dominant)
nm
620~625
Green wavelength (dominant)
nm
520~525
Blue wavelength (dominant)
nm
470~475
Multimedia data format
DVI, MPG, AVI, WMV, RM etc.
Data interconnection
UTP Cat 5/Optical Fiber
Mounting system
Fixed with 4pcs M10 bolts
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.
With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.
For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality
And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
