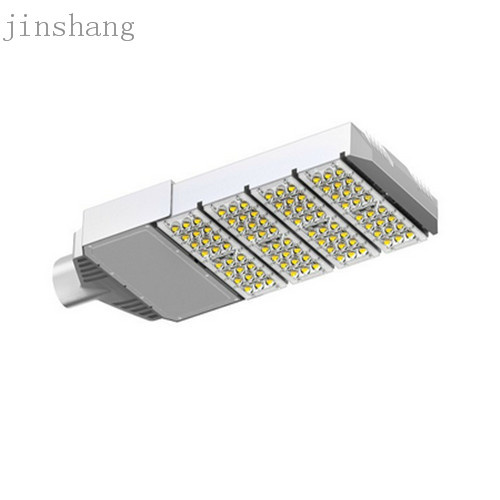

Meanwell Driver LED 120W Street light (JS-B2016101120)
Specification
CREE 120W LED street light |
Item No.: | JS-B2015101120 |
Input Voltage | AC100-277V |
Freqency Range | 50-60Hz |
Power Factory | >0.97 |
LED Driver | Meanwell HLG-150H-42A |
LED Consumption | 120W |
LED Chips | CREE XT-E chips, 96pcs |
LED Luminous Flux | Warm White | >10800lm |
Pure white | >12000lm |
Cool White | >12000lm |
Lamp's Efficiency | ≥91% |
View angle | 140 degree |
Color Temperature | Warm White | 3000-3300K |
Pure White | 5500-5700K |
Cool White | 6500-6700K |
Color Rendering Index | Ra>70 |
Light Design | LED+lens |
LED Junction Temperature | ≤150°C |
Working Temperature | -40°C~50°C |
IP Grade | IP65 |
Working Life-span | 40000 H |
Power Line | 1.0 mm2 three-core wire |
Connect Wire | Brown | L |
Blue | N |
Yellow/Green | G |
Certificate | CE,FCC,TUV,UL |
Features
1. The steel screw used will not rust even a little.
2. We compose our products with epoxy powder paint,which is resistant to corrosion.
3. Good quality anodised aluminium reflector.
4. Multiple colors for choice: black or grey.
5. LED driver are all of high efficiency and power factor.
6. Die casting aluminum housing and high intensity toughened glass cover is used to make our products strong
7. Weatherproof and durable silicon rubber sealing gasket.
8. Start instantly, no flicker, saves much more energy.
9. Designed to be high bright LED chip and ideal heat dissipation
Advantage
1. LED street light through various rigorous testing process to make sure the quality of each led street light.
2. Applied with high quadric optics non-imaging lens to ensure luminaries' efficiency over 95%.
3. Inner high efficiency(95%)heat protection system, with the latest high efficiency and constant currency driver, making the products can work under unstable voltage.
3. Could be equipped with solar power system. DC12V/24V/36V etc.
4. Light body adopt high-pressure cast aluminum, It has some advantage of impact resistance, corrosion resistance and so on.
5. Use of special materials with high thermal conductivity, with special design to increase the area of heat! Ensures air exchange, good cooling effect.
6. Professional circuit design, each LED can work separately, avoid the influence caused by a broken single LED.
Application
1. Important for urban roads, quick way, highway.
2. School, square, garden, Residential area etc.
3. Solar, wind street light.
Trade terms
Payment Terms:
1. Samples: Bank TT, 100% payment in advance;
2. Bulk order: Bank TT, 30% deposit and balance 70% settled before shipment.
Delivery time:
1. Samples: 3-7 working days;
2. Bulk order: 7-15 working days.
Warranty:
3 years warranty
Shipping Method
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose this way.
4. Your shipping agent or forwarder.
After-sale service
What should I do if the lights have a quality problem?
Step 1:Takes the photos and explain the phenomemon
We will work out the possible problem.
Step 2:We will offer the solution plan,if failed,send back the lights.
Step 3:We will test and repair them
Step 4:If failed to repair,new lights will be replaced.
Why Choose Jinshang Lighting
1. Competitive price and relatively high quality.
2. On time delivery
3. Great after service
4. Fast response to the inquiries.
5. Samples is available.
6. More than 10 years LED manufacturing experience.
Our advangage
1. Low power consumption, high lumens
2. Original Bridgelux 45mil led chips, high quality, high brightness
3. Longer life around 50, 000hours
4. High quality pure aluminum, Efficient heat dissipation design, fast heat dissipation
5. Efficient LED driver, Reliable Performance, ROHS, CE compliant
6. Product process exquisite, unique design
7. Light's surface diameter and material thickness are greater than other products on the market
8. Excellent service, comprehensive after-sales service
Our promise for clients
1. Just provide good quality products.
2. Make sure to give you the most favorable prices.
3. Provide 3-5 years warranty.
4. Have long term cooperation with our forwarder, so we can provide you the lowest f reight and the fastest service.
5. Have professional engineers to design and develop new led
lights according to your requirements.
6. Design the colored boxes for you when you have larger quantity.
7. Can use your logo and label on our products.
8. Your inquiry will be replied in 10 hours
Our serveice
1. Your inquiry will be replied in 24 hours
2.Well-trained and experienced staffs to answer all your inquires in fluent English
3. Protect your sales area, ideas of design and all your private information
FAQ
Q1: Can I have samples to test?
A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available.
Q2: Do you have any MOQ limited?
A: Our MOQ: 1M for white jacket , 50M for colorful jacket
Q3: What's the lead time?
A: Sample :2-3 days.
Mass production: 15-20 days.
Q4:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5 days to arrive.By air,by sea are also acceptable.
Q5: Do you offer guarantee for your products?A: Yes, we offer three years guarantee for the products.
Q6: Do you accept OEM?
A: We have our own brand-Unidax. OEM is also acceptable.
Jinshang Solar Lighting Co., Ltd. is situated in Guoji industrial park of Yangzhou city, a Chinese famous historical city, which nearing the Jinghu high way in east, closing to Huning high way in south, approaching Ruiyang great bridge, with superior location and fast and convenient traffic. This is a large outdoor lighting production enterprise, integrating of design, research and development, manufacture, setting and service.
Now, we have over 300 stuffs, including over 50 technicians. Covering 20, 000 squares meters area, we have large numerical control bending machine, aluminum die-casting machine of 2000ton, hydraulic tensile machine, double powder electrostatic spraying line, automatic cutting machine, arc-submerging welder, gas welding, vehicle, and digging, drilling, bending and over hundred equipments. We have various products, such as die-cast aluminum lamp, cone-shaped, rhombic, variable diameter lamp pole, high pole lamp, combination lamp, garden lamp, high pressure sodium lamp, ballast and parts appliances
We hold the management principle of" strive for survival on the basis of quality, explore the markets on the basis of sincerity". The developing goal is to meet the requirements of our clients and to establish the brand effect of Jinshang. We implement the special technical activities and establish qualified archives in a long time, which is to improve and enhance our manufacturing technique. We also try our best to make our rules and regulations perfect. We will continue to warmly welcomes the communities to come to new and old customers visit our company and guide! The company mainly produces and sells various types of solar street lamp, wind solar hybrid street light, electric power street lamp, PV off-grid equipment, garden lamp, landscape lamp, pole lamp, project lamp, digital LED lights, lawn lamp, underground lamp, lifting pole lamp, cone-shaped and polygonal variable diameter steel pole, electrified rail pole, traffic bar, flagpole, various type of light source appliances, and other parts of ballast, trigger, light or time controller electrical appliances and so on, which widely applied in outside roads, squares, parking lots, wharf, garden etc.
Our company gets rich experiences in city lighting engineering which work in this field over 10 years. We are the enterprise of attaching importance to contract and credit in Jiangsu. We enjoined the reputation of quality reliable enterprise in Jiangsu as well as excellent enterprise of standardized implement. Our company rated AAA grad credit enterprise, and through ISO9001international quality system certification. The enforcement of product certification in nation as well as AAA grad, CCC, CCCC2, ISO14001 Certification of environment protection. We also own the third certification of street lighting engineering contractor. We also get the permission of safe production.
In 2015, Wuhan office Hubei, Jinshang lighting Co., Ltd and Lighting equipment, Yangzhou, Jinshang Co., Ltd. Invest to establish a 5000-square-meter solar PV production line together, which import the most advanced equipment of manufacture and testing in the world to make sure the high quality of solar PV module in the international field. The assembly line of solar PV manufacture the solar street light and Off-grid solar system whose products are popular both at home and abroad, such as Middle East, south America, Africa and so on.
