2016 High Quality 90W LED Street Light with PLC Smart System
Jinshang Solar Lighting Co.,Ltd is a professional manufacturer of 30-300W LED street light. Cooperating with CREE, LG, OSRAM, PHILIPS and Meanwell, we are able to assure our products with 5 years warranty. Applications of our LED street light are mainly in highway, street, square, park and other outdoor lighting places.
1.The Advantages of Our LED Road lamp:
CREE LED - with higher brightness, lower light decay and no lamp dead phenomenon Meanwell driver - with stronger stability while long-time lighting and more efficiency Smart modular design - modules quantity from 1 to 6, power supply from 30-300W Unique body design - beautiful and avoids hydrops and dust-accumulation Exquisite Craft - Stoving varnished shell and anodized heat sink improve corrosion resistance PLC smart system - Can be turn on and turn off automatically at dawn and dusk
2.Technical Parameters:
90W LED street light
Item No.:
JS-A20158160-90W
Input Voltage
AC100-277V
Freqency Range
50-60Hz
Power Factory
>0.97
LED Driver
Meanwell HLG-100H-42A
LED Consumption
90W
LED Chips
CREE XT-E leds, 72pcs
LED Luminous Flux
Warm White
>8100 lm
Pure white
>9000lm
Cool White
>9000lm
Lamp's Efficiency
≥91%
View angle
155*80 degree
Color Temperature
Warm White
3000-3300K
Pure White
5500-5700K
Cool White
6500-6700K
Color Rendering Index
Ra>70
Light Design
LED+lens
LED Junction Temperature
≤150°C
Working Temperature
-40°C~50°C
IP Grade
IP65
Working Life-span
50000 H
Power Line
1.0 mm2 three-core wire
Connect Wire
Brown
L
Blue
N
Yellow/Green
G
Driver Certificate
CE,FCC,TUV,UL
3.Introduction of PLC smart turning on-off system:

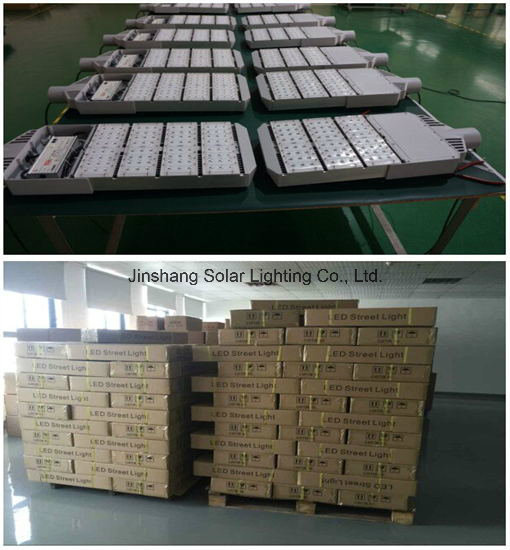

4.Production pictures of LED street light
5.LED streetlight /road light bring more benefits 1. Two LED Chip, More wide beam angle and high brigthess uniformity 1. Energy efficiency and Up to 60-70 % energy saving 2. Tough And Durable life > 50, 000.00 Hours and requires Minimum Maintenance 3. Good color rendering Near natural color make people's visual comfort. NO glare beam. 4. Easy installation IP65 design. Die cast and jet waterproof. Suitable for lateral mounting on mast arms of 40-60 mm 5. Environmentally friendly. Do not have lead and any other contamination. No light pollution and air pollution 6. Dedicated faceted optics to optimize beam control and maximize light output High Power LED street light make a new and cost-less choice!

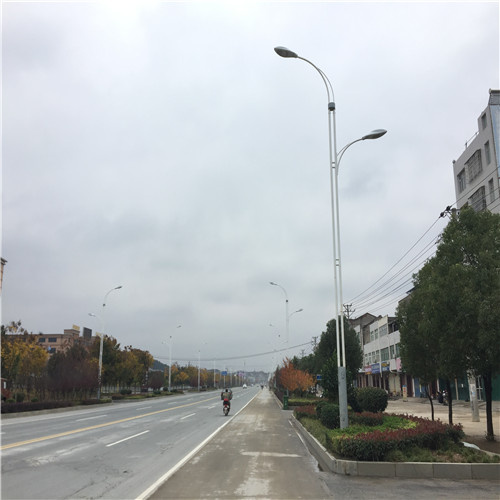

6.Applications Highways and parkways Residential areas and pedestrian walkway lighting Commercial areas and industrial complex
ModelJS
JS2016-T40W-110W
Power Range
30W 40w 50w 60w 70w 80w 90w 100w 110W
Voltage Range
24VDC / 12VDC Or 110VAC/220VAC/230VAC ( 85-265VAC)
Power Efficiency
> 0.9
Power Factor
> 0.98
Light efficiency
> 90%
LED lumens
130LM/W
Beam angle
120° C
Color Rendering Index
Ra> 75
Color Temperature (KELVIN)
2700k~7000k
Working Environment
-40° C ~55° C
Protection Grade
IP66
Life Span
> 50, 000.00 Hours
Net Weight
10.00kg
Dimension L*W*H(MM)
692m m × 330mm× 140mm
Pipe Entry Mounting
48-60mm
