Brightness:
600nits
Panel Size:
500X500mm
Resolution Per Panel:
4X4
Panel Frame Material:
Aluminum Alloy
Panel Cover Material:
Stalinite
Mounting System:
Fixed on Ground
Tube Chip Color:
Full Color
Display Function:
Video Display
Display Type:
LED Video Display
Application:
Stage Performance
IP Rating:
IP43
Certification:
ETL
Pixel Pitch:
125mm
Pixel Configuration:
4r4g4b
Pixel Density:
64DOT/M&Sup2
System Operating Platform:
Windows7, Vista, XP, 2000, 98
Product Description

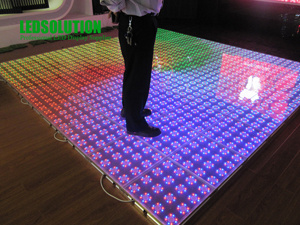

LED Dance Floor, LED floor, LED Display, LED screen, Dance Floor LED Display, Club LED Display
Features: 1. Fully Customizable 2. Synchronizes to Music 3. Displays major graphic formats 4. Displays major video formats 5. Video input for live cameras 6. Automated playlists (Lightshows) 7. 'On the Fly' editing 8. Ability to layer effects/graphics/video 9. Resizable layouts 10. Program speed changeable
Pitch
mm
125
Brightness
nits
600
Panel weight
kg
10
Panel width
mm
500
Panel height
mm
500
Panel depth
mm
68
Panel area
sq. m.
0.25
Panel frame material
Aluminum alloy
Panel cover material
Stalinite
Load per square meter
T/m2
1.5
Operating temperature range
deg. C
-30 to +60
Humidity operating
RH
10% ~ 90%
Pixel type and configuration
R/G/B
4R4G4B
Resolution per panel
4x4
Dot per panel
16
Dot per sq. meter
64
LED per sq. meter
1, 024
Input voltage (nominal)
VAC
110 to 240
Input power frequency
Hertz
50 to 60
Input power (max)
Watts
16
Input power (avg)
Watts
6
Working Voltage
V
15
Red wavelength (dominant)
nm
625
Green wavelength (dominant)
nm
525
Blue wavelength (dominant)
nm
470
Signal connector
USB port
Control mode
By computer software
Mounting System
Fixed on ground
