North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Type:
SMD2020
Viewing Angle:
H:140, V:140
Traditional Cabinet:
Metal Plate
Compliant Standard:
CE,FCC,RoHS,ETL,CCC
Cabinet Material:
Iron Sheet Metal
Cabinet Weight(Kg):
15kg
Voltage:
110/240V
Module Size(mm):
256X128X13
Cabinet Size(mm):
512X512X133
IP Grade:
IP31
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Pitch:
4mm
Pixel Configuration:
1R,1G,1B
Scanning Mode:
1/16 Scan
Display Type:
LED Video Display
Application:
Shopping Guide
Certification:
ETL
Pixel Density:
62500 / M²
System Operating Platform:
Win7 XP Vista
IP Rating:
IP31
Product Description
LED display screen, LED screen , LED sign , LED billboard, Metal LED panel , Full color LED sign
The design has the features of "light","thin", "fine", "penetrate ". Convenient installation, withstand wind and dustproof. Application for the stage and surrounding. This product has been applicated at many fields such as stage, bar, entertainment TV and so on, it has been shown the unique artistic charm and aesthetic feeling of space imagination. The brightness can be adjusted from 500 nits to 2000 nits without damaging the gray level, matching with calibration technology, it has the great expressive color. The product is with convenient installation, and flight connectors connecting. Now it has become the most popular fashion elements at the digital stage and bar. High refresh frequency can meet the requirement of the shooting on the stage, presents the perfect effect.
Item
Indoor Fixed LED display Series
Pixel Pitch(mm)
3mm
4mm
5mm
6mm
Pixel density(pix/m2)
111111
62500
40000
27777
LED Type
2020
2020
3528
3528
Viewing Angle
H:140°,V:140°
Color Depth(nits)
1000
1200
1500
1500
Drive Method
1/32
1/16
1/16
1/16
Color Depth
16384
Refresh Rate(Hz)
1200
1200
1200
1200
Module Size(mm)
192×192×13
256×128×13
160×160×13
192×192×13
Cabinet Size(mm)
384×384
512×512×133
640×640×133
768×768×133
Cabinet Material
Aluminum
Iron Sheet Metal
Iron Sheet Metal
Iron Sheet Metal
Cabinet weight(kg)
9
15
23
32
Voltage
110/240V
Average.power(W/m2)
300
250
160
120
Max.power(W/m2)
900
750
480
350
IP Grade
IP31
Operating temperature/humidity
temperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/humidity
temperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)
≥50000
Compliant Standard
CE,FCC,RoHS,ETL,CCC

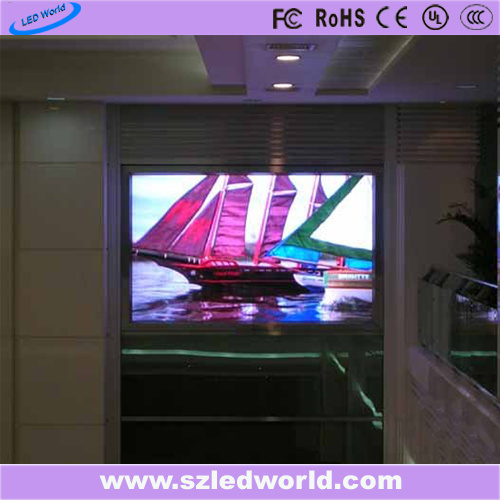

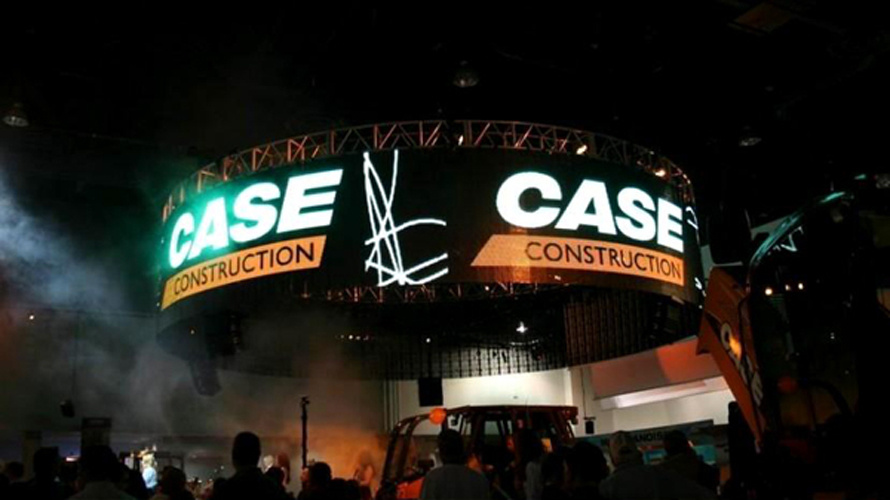

Project case:

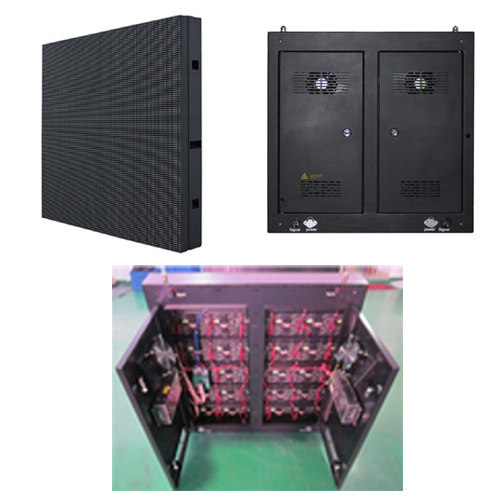

Product detail:

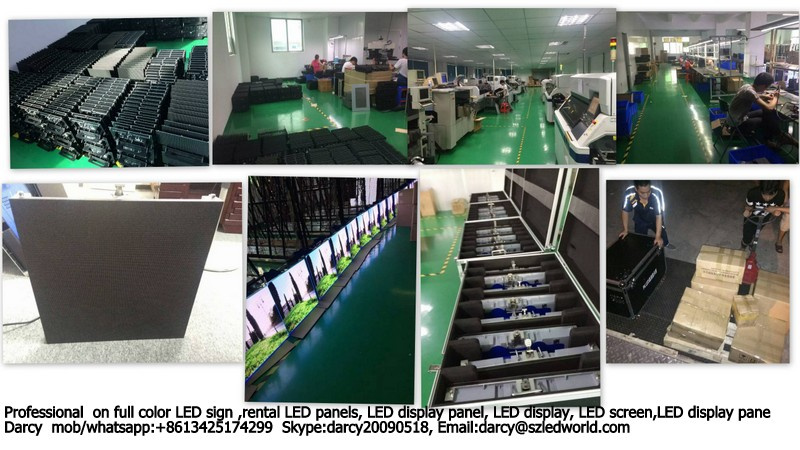

Workshop:
Shenzhen LED World Co., Ltd has focused on export business since 2009, who specialized in supplying the solutions of LED display screens, LED signs for worldwide market. The products series include small pixel pitch LED display, rental LED display screen, advertising LED display, stadium LED sign, LED ball screen, LED floor screen, creative LED display screens and so on. The above products are widely used in advertising media, public facilities, sports, entertainment, military, traffic and other industries, exported to USA, Mexico, Greece, Spain, Italy, UK, Thailand, Uganda, Nigeria, Russia, India, Turkey, Thailand, Vietnam, Brazil, Australia etc more than 20 countries and regions, and gained good reputation form the clients.
LED WORLD depends on the excellent outstanding R&D technicians, skilled & experienced oversea sales team, who adhere to" customer first, quality first, reputation first" as operating principle, making our future is better and better day by day.
Warmly welcome you visit our company to innovate and win glory together.
