North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:
192*192
Cabinet Size:
576*576
Warranty:
Two Years
Display Type:
LED Video Display
Tube Chip Color:
Full Color
Display Function:
Video Display
Scanning Mode:
1/16 Scan
Certification:
CCC
Pixel Configuration:
1R,1G,1B
Pixel Pitch:
4mm
Application:
Shopping Guide
IP Rating:
IP43
System Operating Platform:
WIN XP
Pixel Density:
62500 DOT /Sqm
Product Description
P4 Indoor rental LED display advantages: Compact structure, stable performance, wide applicability,high protection grade,high brightness,light weight,durable, easy to use ,long life span
Export Markets: Western Europe,South America,North America,Mid East,Southeast Asia,Eastern Asia,Africa;
Parameters

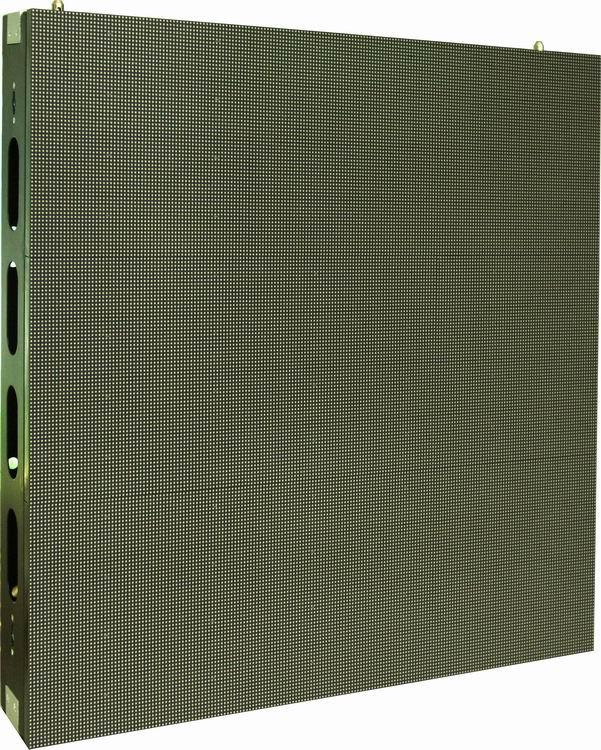

Indoor Die-casting LED display classical series(576*576)
Pixel Pitch (mm)
4 mm
5.33mm
6mm
Pixel density(pix/m2)
62500
35200
27777
LED Type
SMD3528
Viewing Angle
H:140°,V:140°
Brightness(nits)
2500
2500
2000
Drive Method
1/15
1/9
1/12
Color Depth
16bit
Refresh Rate(Hz)
600HZ
1200HZ
Module Size (mm)
288×288
Cabinet Size(mm)
576×576
Cabinet Material
Die-cast aluminum
Cabinet weight(kg)
10.5
Voltage
110/250V
Average.power(W / m2)
170
270
190
Max.power (W / m2)
500
800
560
IP Grade
IP31
Operating temperature/humidity
temperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/ humidity
temperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)
≥50000
Compliant Standard
CCC,CE,Rosh
P4 indoor rental LED screen is special made for application of giant indoor advertising screen. Use synchronous system which can accept signals DVI, VGA, HDMI, S-VIDEO, Complex, YUV etc. It can display programs of video, image, text. Displaying every information by real time, synchronous,clear message and can show two or three dimension animation, video, TV, VCD program and live broadcast.
Features of indoor rental led display Use SMD technology to make the LED display have good video effect.
Synchronously adjust the brightness and color to make the true and exquisite image.
High contrast, high refresh rate make the image without any delay, trailing smear.
Compatible to many signal sources such as AV, S-Video, DVI, VGA, YPbPr, HDMI,SDI,DP etc.
Special wooden Case package protect the whole screen system. PCB patent technology, the most stable signal transmission technology in the world.
