Module Size:
250*250
Brightness:
More Than 1200 CD / Sqm
Cabinet Size:
500*500
Cabinet Material:
Iron or Aluminum
Cabinet Weight:
8kg
Warranty:
Two Years
Display Type:
LED Video Display
Tube Chip Color:
Full Color
Display Function:
Video Display
Scanning Mode:
1/16 Scan
Certification:
CCC
Pixel Configuration:
1R,1G,1B
Application:
Shopping Guide
IP Rating:
IP43
System Operating Platform:
WIN XP
Pixel Pitch:
3.91mm
Pixel Density:
65410 DOT /Sqm
Product Description

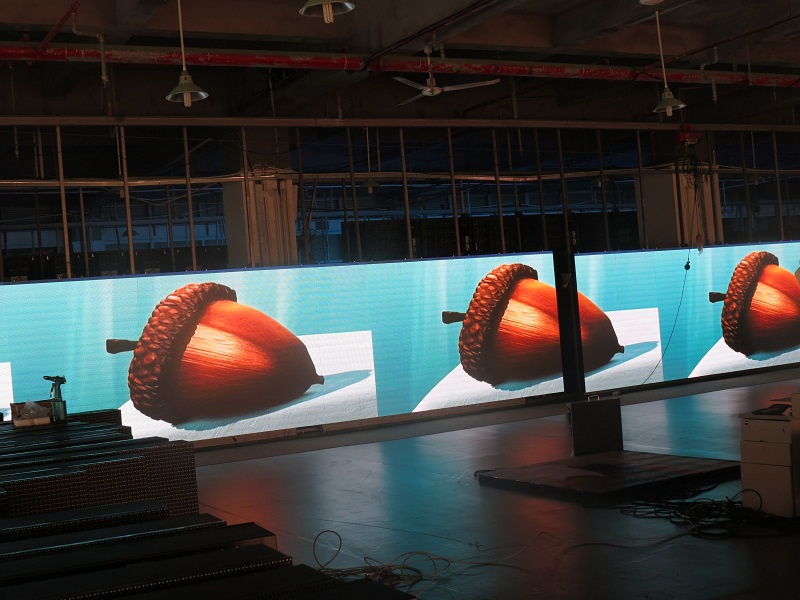

Indoor Advertising LED Display SMD 3 in 1 Series:
Pixel Pitch
3.91mm
4.81mm
Pixel Configuration
SMD2121 3-in-1
SMD2121 3-in-1
Environment
Indoor
Indoor
Pixel Density
65,410 dots/m2
43,222 dots/m2
Module Resolution
64×64 dots
52×52 dots
Module Size
250×250 mm
Cabinet Resolution
128×128 dots
104×104 dots
Cabinet Size
500X500 mm
Cabinet Weight
8 KG
8 KG
Cabinet Material
Die-casting Aluminum
Viewing Distance
>4m
>5m
Viewing Angle
H120°V120°
Refresh Rate
≥1,200 Hz
≥1,200 Hz
Maximum Power Consumption
650 W/m2
600 W/m2
Average Power Consumption
230 W/m2
210 W/m2
Drive Mode
Constant current
Constant current
Brightness
≥1,200 CD/ m2
≥1,200 CD/ m2
Input Voltage
AC100-240V/50-60Hz
Life Span
100,000 hours
Working Temperature
-20°C~60°C
Working Humidity
10%RH~90%RH
Gray Scale
14 bit
IP Grade
IP31
Features of Indoor Advertising LED Display : 1 .500 MM Series (P3.91/4.81MM) display is designed for indoor and outdoor LED display R & D leases. Synchronous control system processing, accept DVI, VGA, HDMI, S-video, composite, YUV input signals, etc., free video, graphics, images, and Mao's program in real time, synchronization, clear information dissemination play each kind of information, and can display 2D and 3D animation, video, TV, VCD programs, and live and so on.
2 As a new type of advertising display design makes stable, durable, easy to use, suitable for indoor stage, television and other application areas. Achieved without tools to quickly install and maintain, greatly expanding the use of the product areas. High production efficiency and lower operating costs.
3 Super thin and light weight(weight :8KG, thickness :70mm), which reduce the weight load and save shipping cost, storage space and installation cost.
4 high refresh rate , high gray scale ,high contrast rate , perfect viewing effect. seamless connection and soft image. 5 Energy-saving , environmental protection, low power consumption with average 160 W/m², save more than 50% energy. 6 easy and fast installation without tools, and both for fixed installation and rental using, support hot-plug connection, and safety operation. 7 aluminum die-casting cabinet, flatness and uniformity screen with cabinet difference controlling within 0.1mm and screen gap within 0.5mm. 8 both for fixed installation and rental using, various installation condition. 9 Support point correction function, ensure the color and brightness consistency. 10 one cabinet with multi-purpose, product upgrading only need to change the module , low upgrade cost.
