North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:
D150*95
Packing Size:
165*165*105mm
LED:
High Power 1W
Cut Hole:
D135mm
Net Weight/ Gross Weight:
1kg/1.1kg
Color:
Single Color or RGB
Color Temperature:
Pure White
Lamp Body Material:
Aluminum
No. Of Light Source:
≤10PCS
Application:
park
Certification:
RoHS
Input Voltage:
24v
Light Source:
With Light Source
LED Chips Brand:
Epistar
Power:
7W
IP Rating:
IP67
Product Description

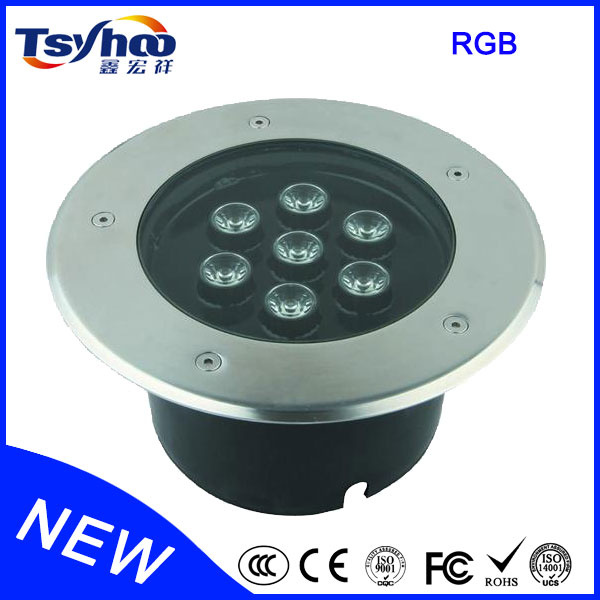

Hot Sale 7W 304 Stainless Steel LED Buried Lights
Specification: Product description: 7W LED underground Product Model: XHX-UG2S7W XHX-UG3S7C Beam angle: 30° Input wattage: 7W Product material: Die casting aluminum +toughened glass Input voltage: AC 100-240V Life span: >35, 000 hours Light source: 7PCS 1W LED Replace lamp: 70W halogen light IP grade: IP67 Safety Specification: CE & RoHS Solution: Built-in isolation driver
Features: 1. High power Epistar as light source, with high lumens output. 2. Stainlss steel panel and aluminum shell, static spraying plastic, constant temperature curing. Application area: Widely used in Courtyard corridor, lawn garden, Sidewalk etc.
Application: Applicable to the street, the road, the building, the landscape, the supermarket, underground parking lot, highway toll station, gas station, exhibition hall, gymnasium and other lighting places. Shipping 1. FedEx / DHL / UPS / TNT for samples, Door-to-Door; 2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving; 3. Customers specifying freight forwarders or negotiable shipping methods! 4. Delivery Time: 1-3 days for samples; 5-25 days for batch goods.
Payment Terms 1. Payment: T/T, Western Union, MoneyGram, PayPal; 30% deposits; 70% balance before delivery. 2. MOQ: 5pcs. 3. Warranty: 3 years. 4. Package Informations: 1 pcs per box /The volume of the box is 75cmx75cmx75cm.
Parameter
symbol
Model
Min.
Typ.
Max.
Unit
Input Wattage
P
-
7
W
Input Voltage
Vin
50/60Hz
85
230
265
V
Input Current
Iin
-
-
50
mA
Power Factor
λ
λ=P/S
-
0.6
-
%
Operating Temperature
T
230V/50Hz
-20
25
45
ºC
Storage Temperature
T
-
-30
25
60
ºC
Lumen Output (WW)
lm
XHX-UG3S7W
-
560
-
lm
Lumen Output (CW)
lm
XHX-UG3S7C
-
630
-
lm
Color Temperature (WW)
CCT
XHX-UG3S7W
2500
3000
3500
K
Color Temperature (CW)
CCT
XHX-UG3S7C
5000
5500
6000
K
Color Rendering Index
CRI
XHX-UG3S7W
65
%
