Name:
LED Ceiling Light
Input Power:
7W
Brightness:
Shinning
Chip:
Epistar
Diameter:
40mm
Lifespan:
>35, 000hours
Color Temperature:
2700~6500k
Light Source:
LED
Material:
Aluminum
Source Number:
Single Plug
Installation:
Exposed Type
Lamp Installation:
Plug Lamp
Application:
Engineering
Certification:
CE, RoHS
Product Description

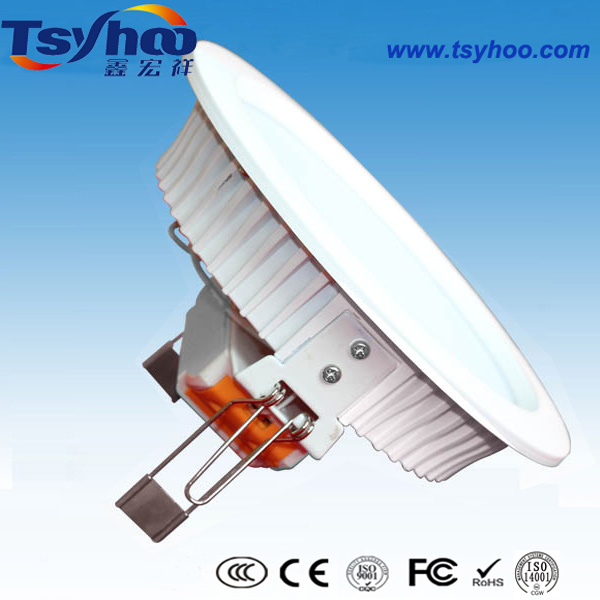

High Brightness LED Down Light 7W (XHX-D30B-6WF-A1)
LED ceiling light Better thermal-dissipation, environmental friendly CE, RoHS, UL Cetification. Best quality and service
Product featurers: Energy-saving and low consumption Good heat dispersion No UV No IR radiation Life span: >50000hours
Model
Normal Power
LED Chip Brand
Beam angle
Voltage
Color Temperature
Size
XHX-D30B-6WF-A1
6W
Epistar
>150°
AC85-265V
3000K/5000K/6500K
D125X75mm
XHX-D35B-8WF-A1
8W
Epistar
>150°
AC85-265V
3000K/5000K/6500K
D125X80mm
XHX-D40B-10WF-A1
10W
Epistar
>150°
AC85-265V
3000K/5000K/6500K
D140X80mm
XHX-D50B-15WF-A1
15W
Epistar
>150°
AC85-265V
3000K/5000K/6500K
D180X80 mm
XHX-D60B-20WF-A1
20W
Epistar
>150°
AC85-265V
3000K/5000K/6500K
D190X80 mm
XHX-D80B-24WF-A1
24W
Epistar
>150°
AC85-265V
3000K/5000K/6500K
D190X80 mm
XHX-D80B-30WF-A2
30W
Epistar
>150°
AC85-265V
3000K/5000K/6500K
D190X80 mm
Application: Good and elegant for commerical and residential Lighting for places such as Theaters, Library, fashion shops, office, hotels, museums, house lighting, studio. Store, Bar, Airport, Overpass, Indoor or outdoor Decoration(Easy installation).
Item
Specification
Product Name
7W Cool white / warm white LED downlight
Model No.
BESD-TD-7
Input Voltage
100-240VAC 12-24VDC 50-60HZ
Output current
350mA-700mA
Power
7pcs*1W
Dimension
DIA263*90*55MM
Beam Angle
30° /45° /60°
Color range
R, G, B, Y, CW, WW
Life Span
> 35, 000hrs
Work temperature
-20 -+50 degree
Fixture Material
Aluminium
Surface color
Sliver/Shining white / Brass /Matt white
Lamp Head
Lamp head can be adjusted 20°
Protection Rate
IP20
Certification
CE, ROHS
Luminious flux
Typ. lumen: 550lm(5000k)
Color Temperature
2500k-11000K
Color Render Index
74-90 Ra
Power factor
0.85-0.99
Lumens Decline
3% in the fiirst 1000hours
Feature
@ Long life > 35000hrs @ Economical @ Easily and fastly installl or replace traditional lamp @ Good color and luster @ Power saving and low cost @ Applicability @ Green environmental protection @ Shake proof
Application
@ Home and office lighting @ Shopping mall lighting @ Display case lighting @ Under cabinet lighting @ Art lighting @ Board lighting . Back lighting, step lighting, light boxes . Cabinet and under counter lighting
Xinhongxiang Optoelectronics (Shenzhen) Co., Ltd. As one of the most leading LED Products manufacturer in Shenzhen China, covering 10 000 square meters, register capital high up to 30 million CNY, is one high-tech enterprise focus on researching, producing, sale and service of LED products, . Nowadays Xinhongxiang owns fully automatic production lines, independent purifying workshop, researching center, most advanced production and inspection equipments, which guarantee the quality of the LED products. All the products have exported more than 100 countries, such as USA, Mexico, Canada, Brazil, Chile, Argentina, Panama, Colombia, Germany, France, Sweden, Italy, Spain, Russia, Poland, Turkey, Ukraine, South Africa, Egypt, Saudi Arabia, Singapore, Thailand, India etc
Developing History:
From 1996 to 2010, Xinhongxiang Optoelectronics (shenzhen) Co., Ltd, mainly involved in LED encapsulation and LED Display.
Since 2010, owe to enlarge the company scale and build up self-owned brand, Xinhongxiang focus on LED lighting, Shenzhen BESDLED Co., Ltd focus on LED display, business involved in indoor and outdoor LED Encapsulation, LED Display and LED Lighting Products.
LED Display:
Full Color Indoor and outdoor LED Display, single or dual basic color LED signs, LED Curtain, LED Dance Floor, Rental LED Display,
LED Lighting:
LED Bulb, LED Tube, LED Spotlight, LED DownLight, LED Panel Light, LED Street etc,
Comparing with many of LED Manufactures, xinhongxiang owns the following advantages to be your best choice for long term cooperation partner.
1, Fully automatic production lines
Xinhongxiang owns the entire LED manufacturing line, from original Semiconductor to LED chip, then assemble to LED display and LED lighting products.
2, Advanced production equipment
SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP LED, Spectrum and Color Separation Machine, LED oven, Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. Are equipped for our LED Product production.
3, Many Certification approved to clear up the trade barriers
CE, FCC, UL, RoHS, CCC, ISO9001: 2000 etc are obtained.
4, Strong R&D Team
Xinghongxiang absorb many talents, with more than 500 staffs, and including more than 100 engineers and technician, which paves the way for R&D for new products and excellent sales service
5): After-Service,
Principles: Response in time, solve problem ASAP and ensure the use.
Period: During warranty period, free of all maintenance charges;
