North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:
192mm X 192mm
Materail:
Light Alumium Cabinet
Cabinet:
Double Face Front Cabinet
Best View Distance:
15m -100m
Warranty Time:
2 Years
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Certification:
CCC
Pixel Pitch:
16mm
Display Function:
Video Display
Application:
Stage Performance
Scanning Mode:
Static Scan
Average Power Consumption:
180W / m²
Pixel Density:
3906
Product Description
P12 outdoor Front service LED Display
P16 Front service LED Display Application :

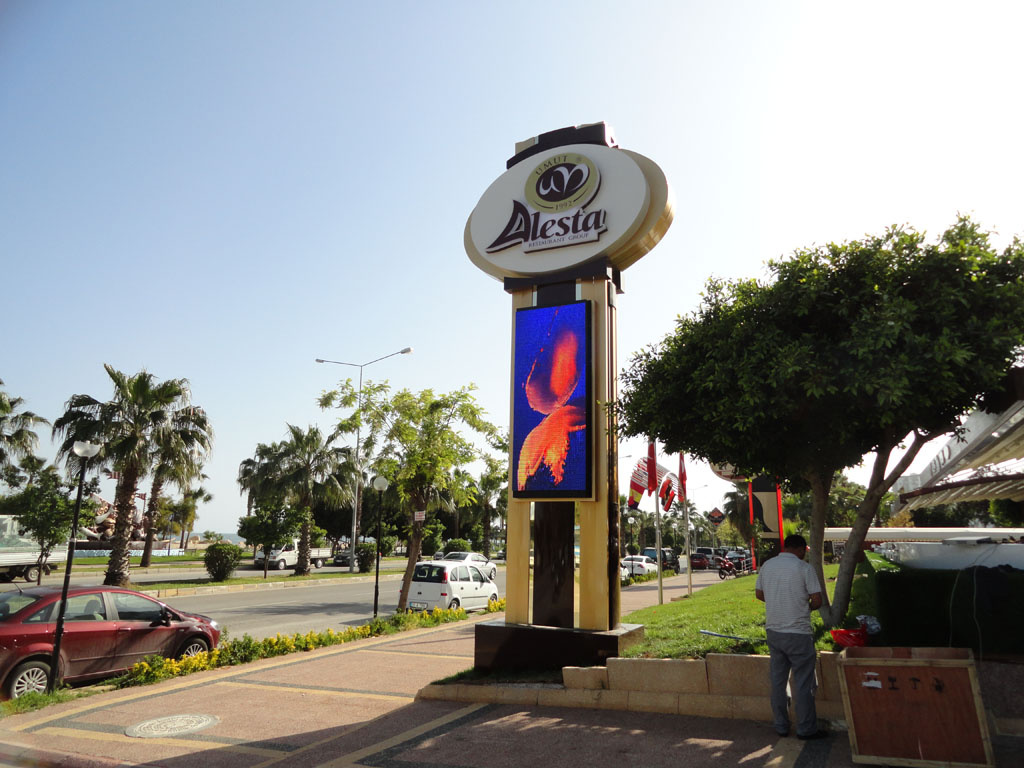

outdoor advertising, shopping mall, square, park, stadium and so on.
Detail Specification
Item
Front Service Outdoor LED display
Pixel Pitch(mm)
10mm
12mm
16mm
16mm
Pixel density(/m2)
10000
6944
3906
3906
LED Type
DIP346
Viewing angle:
H:120°,V:60°
Brightness(nits)
≥6500
≥5000
≥7000
≥5500
Drive Method
1/4
Static
Color Depth(nits)
16384
Refresh Rate(Hz)
2200
2800
Module Size(mm)
160×160x28.5
192×192x28.5
256×256x28.5
320×320x28.5
Cabinet Size(mm)
1280×960x178.5
2560×1024x178.5
1280×960x178.5
Cabinet Material
Steel/ Alumium
Cabinet weight(kg)
50
55
68
Voltage
110/220V
Average.power(W / m2)
250
170
250
220
Max.power(W / m2)
750
500
750
650
IP Grade
IP65/IP54
Operating temperature/humidity
temperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/humidity
temperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)
≥50000
Compliant Standard
CCC,CE,Rosh
Feature :

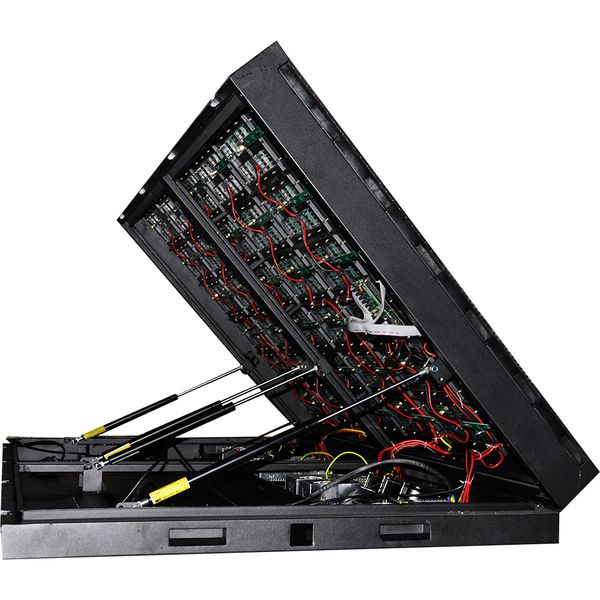

1 Front access design makes the installation and maintenance easier so that reduces the cost of money and time 2 Light weight with aluminum cabinet can make it amount in the wall or lift against the wall 3Advanced coated techniques of cabinet ensure display to operate in all weather and looks more fashion and luxurious 4 It can also make double sides front service LED signs

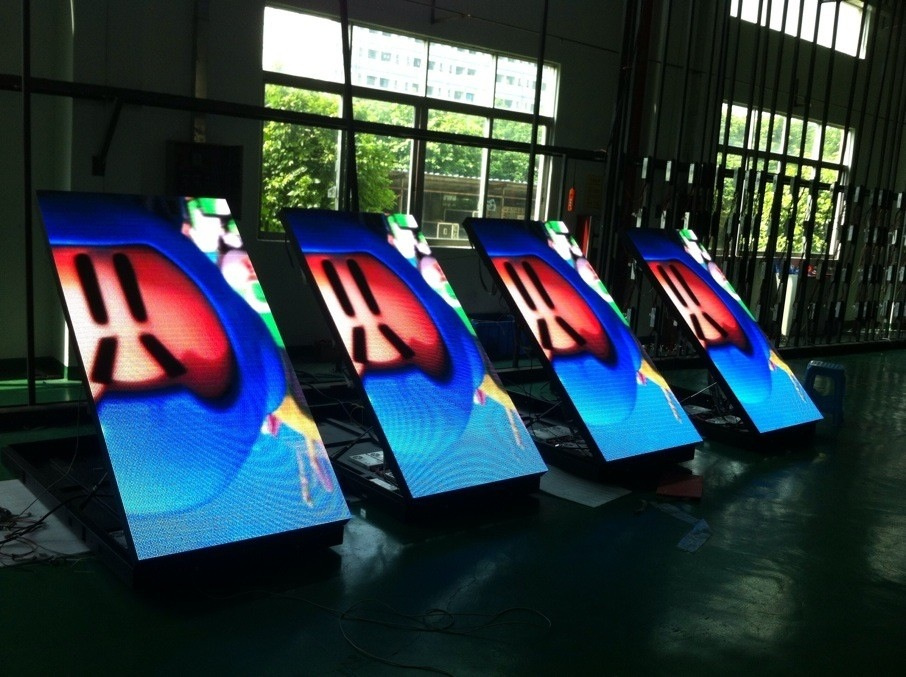

LED Display Aging in the factory
