Size : 1920 Mm X 1280 Mm:
P10 DIP346
Module Size :160 Mm X 160mm:
Brightness More Than 6500 CD
Temperature:-20 ~ 50c Humidity:10~90%Rh:
CCC\CE\Rosh
Front Access Design:
Double Face Front Cabinet
Light Alumium Cabinet:
Voltage 110/220V
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Certification:
RoHS
Pixel Pitch:
10mm
Display Function:
Video Display
Application:
Stage Performance
Scanning Mode:
Static Scan
Pixel Density:
10000 dot / m²
Average Power Consumption:
180W / m²
Product Description
Front service cabinet LED Display

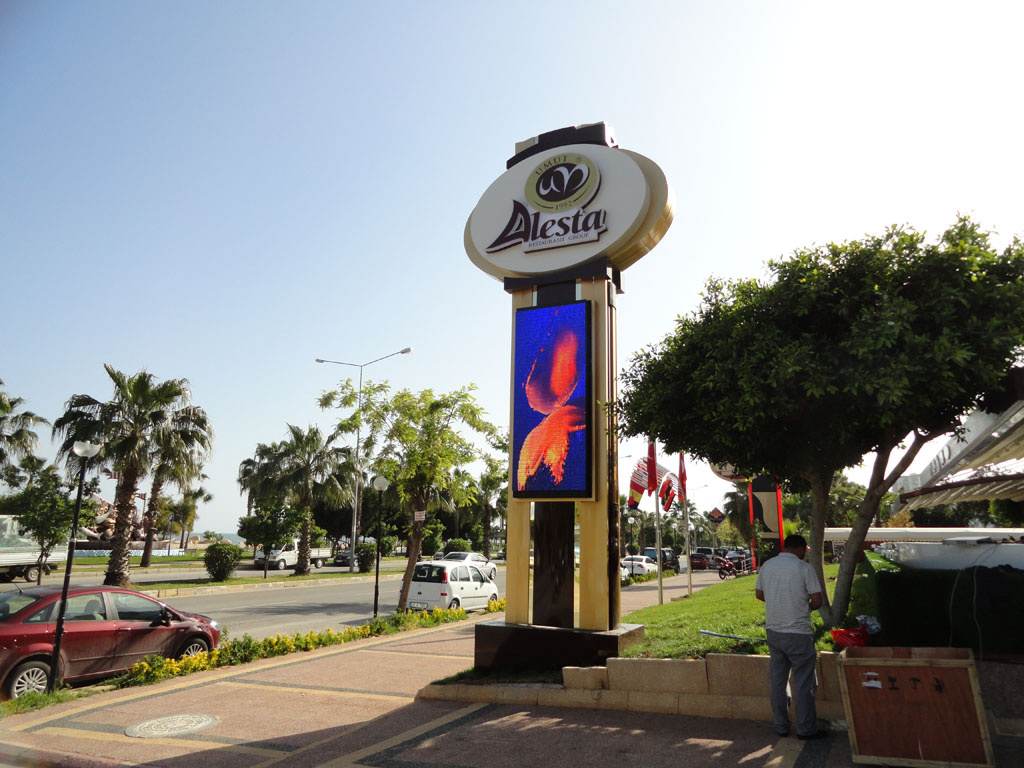

Front service LED Display Application :
outdoor advertising, shopping mall, square, park, stadium and so on.
Detail Specification
Item
Front Service Outdoor LED display
Pixel Pitch(mm)
10mm
12mm
16mm
16mm
Pixel density(/m2)
10000
6944
3906
3906
LED Type
DIP346
Viewing angle:
H:120°,V:60°
Brightness(nits)
≥6500
≥5000
≥7000
≥5500
Drive Method
1/4
Static
Color Depth(nits)
16384
Refresh Rate(Hz)
2200
2800
Module Size(mm)
160×160x28.5
192×192x28.5
256×256x28.5
320×320x28.5
Cabinet Size(mm)
1280×960x178.5
1024×1024x178.5
1280×960x178.5
Cabinet Material
Steel/ Alumium
Cabinet weight(kg)
50
55
68
Voltage
110/220V
Average.power(W / m2)
250
170
250
220
Max.power(W / m2)
750
500
750
650
IP Grade
IP65/IP54
Operating temperature/humidity
temperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/humidity
temperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)
≥50000
Compliant Standard
CCC,CE,Rosh
Feature :
1 Front access design makes the installation and maintenance easier so that reduces the cost of money and time 2 Light weight with aluminum cabinet can make it amount in the wall or lift against the wall 3Advanced coated techniques of cabinet ensure display to operate in all weather and looks more fashion and luxurious 4 It can also make double sides front service LED signs
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
Front service LED Display Application :
