North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Package:
5meter/Roll,Neutral Label,etc
Warranty Time:
24 Months
Certificate:
CE,RoHS,etc
Origion:
Zhongshan,China
Power:
12W/M
Emitting Color:
White,Warm White
IP Rating:
20
Product Description
SMD2835 series
Model
LED Quantity
Voltage
Power
Lumen/m
CRI
PCB width
IP rate
color
LM2835-WN-12V
60leds/m
12V
12w/m
1440lm/m
80
8mm/10mm
IP20/IP65/IP67/IP68
red,yellow,blue,green,white,orange
LM2835-WN-24V
60leds/m
24V
12w/m
1440lm/m
80
10mm
IP20/IP65/IP67/IP68
red,yellow,blue,green,white,orange
LM2835-WN120
120leds/m
12/24V
24w/m
2880lm/m
80
10mm
IP20/IP65/IP67/IP68
red,yellow,blue,green,white,orange
LM2835-WN36-HL
36leds/m
24V
7.2w/m
864lm/m
80
10mm
IP20/IP65/IP67/IP68
red,yellow,blue,green,white,orange
LM2835-WN60-HL
60leds/m
24V
12w/m
1440lm/m
80
10mm
IP20/IP65/IP67/IP68
red,yellow,blue,green,white,orange
LM2835-WN120-CCT
120leds/m
24V
24w/m
2880lm/m
80
10mm
IP20/IP65/IP67/IP68
white,warm white

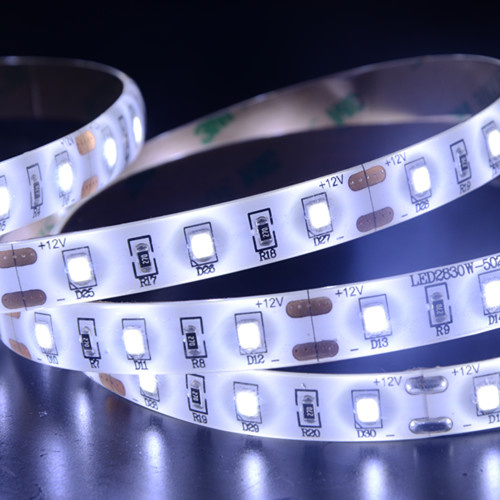

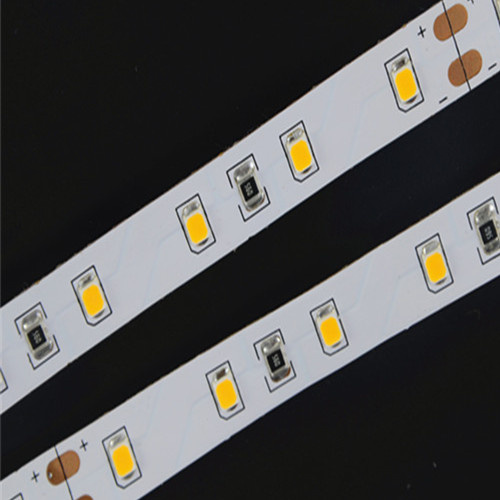

12V 2835 Flex Led Strip Main Specifications:
1 Voltage (v): 12VDC 2 Power (w):60w/5M 3 Size (mm): 10*5000m 4 Background Color: White 5 LED Light Source: SMD2835 6CRI(Ra>): 75 7Working Temperature (ºC): -20-60 8 View Angle (°): 120 9 Length (m): 5M 10 Certification: CE, RoHS, EMC 11 IP Rate: IP20 12 Luminous Flux (lm): 7200lm/roll 13 Led Chips: Epistar 15 Cutting unite: 3 LEDs 16 Life Time (Hrs): 50000 17 LED Qty: 60leds per meter 18 CCT: Warm White: 2600-3500K Nature White: 4000-4500K Cool White: 6000-6500K
Main Features: 1 CE, RoHS certified with high quality 2 3M Tape at backside, more easy to install 3 Epistar Led Chips with super brightness 4 24 months longer warranty time 5 Factory direct sale with most competitive price and shortest delivery lead time
12V 2835 Led Strip Light, 2835 Flex Led Strips Applications:
Established in 2011, Leomay Technology Company is a high-tech enterprise and certified by UL and SGS, which is engaged in researching, manufacturing and selling new LED lighting products.
Now Leomay products mainly cover LED Strip Light, LED Rope Light, LED Linear Light, LED Panel Light, LED Flood Light, LED Tube, LED Bulbs, LED Wall Washer etc. All of them are certified by CE, EMC, LVD, RoHS, FCC, some of products are UL, Energy Start, ERP compliant.
Meanwhile, Leomay has advanced LED luminaire manufacturing and test facilities such as Imported Panasonic Auto Soldering and SMD Machines, Programmable Constant Temp and Humidity Testing Machine, IP65 and IP68 Waterproof Production Lines, High and Low Temperature Test Chamber, Optical Testing Devices such as Everfine Integrating Spheres and Distribution Photometer.
Leomay will and always insists on the principle of ' Provide High Quality LED Light and Professional Service for All Customers', especially 3 years OEM service, we not only have lots of self-designed and private items, but also offer customized products, such as customers logo, packing, CRI 90 or CRI95, LM80 etc., which all completely follow CE, RoHS, EMC and UL standards.
Leomay products are highly recognized and sold very well more that 30 countries and regions, such as Germany, Austria, Swiss, Italy, Hungary, Slovakia, Croatia, Slovakia, Slovenia, Finland, Denmark, Spain, UK, Russia, Canada, US, Costa Rica, Brazil, Argentina, Singapore, Hong Kong, Taiwan etc.
As a well-known LED lighting manufacturer, we will keep improving our products quality and service for all of our valued customers.
